Introduction

The Waveshare 7-inch QLED Quantum Dot Display is a remarkable piece of technology that combines cutting-edge features with stunning visual performance. In this blog, we’ll delve into the details of this display, exploring its specifications, use cases, and how it compares to other displays in the market.

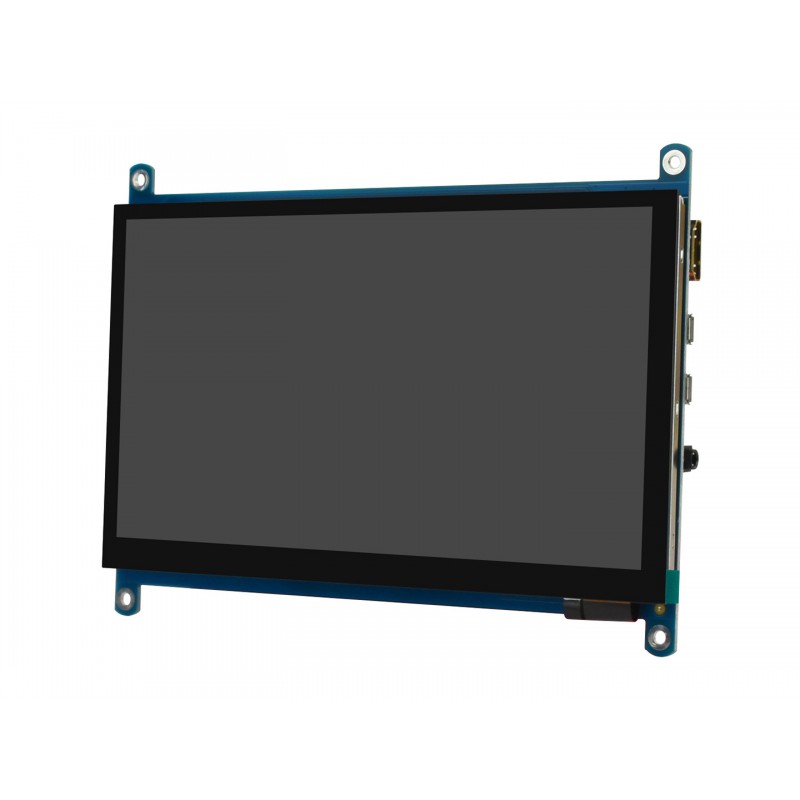

Specifications at a Glance

  • Size: 7 inches
  • Resolution: 1024×600
  • Display Interface: HDMI
  • Display Panel: IPS (In-Plane Switching)
  • Viewing Angle: 170°
  • Backlight: QLED Quantum Dot
  • Touch Type: Capacitive (5-point touch)

Key Features

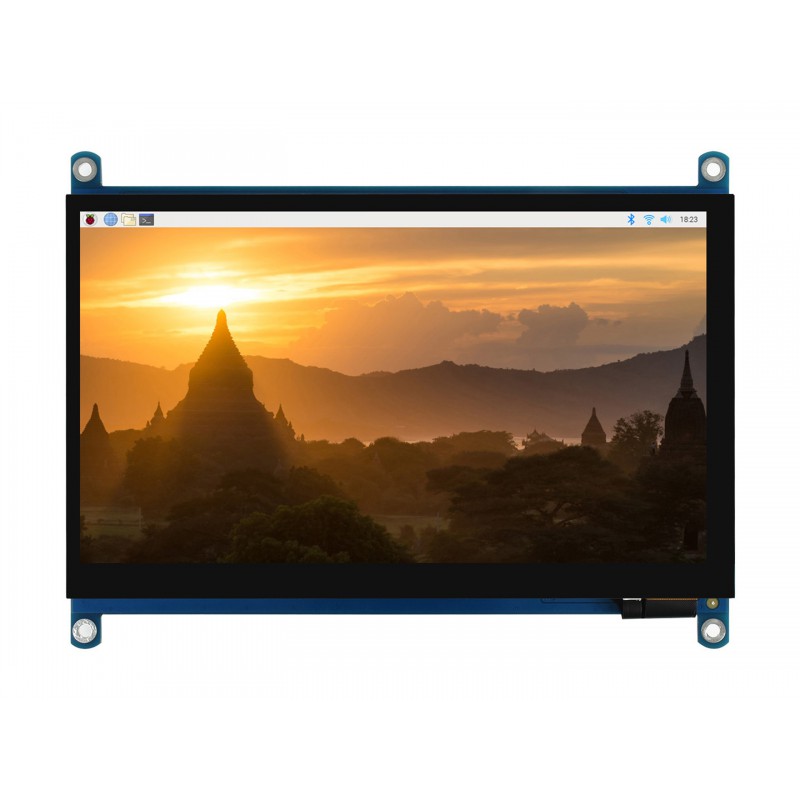

1. Quantum Dot Technology
The Waveshare QLED Quantum Dot Display leverages quantum dot technology to enhance color reproduction. Here’s what makes it stand out:

  • Wider Color Gamut: With an impressive color gamut of up to NTSC 78% and sRGB 92%, this display delivers vibrant and true-to-life colors.
  • Pure Chroma: The QLED technology increases chroma by 58.3%, resulting in purer and more vivid colors.
  • Longer Lifetime: Thanks to its inorganic characteristics, the QLED display boasts a color life of up to 60,000 hours without degradation.

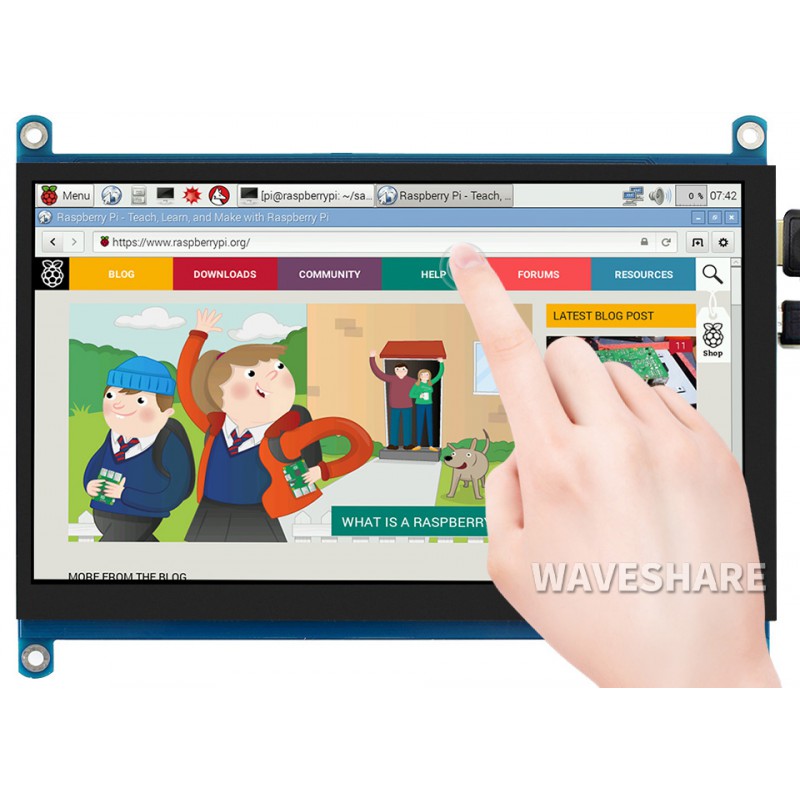

2. Touch Control

  • Capacitive Touch: The display supports up to 5-point touch, making it ideal for interactive applications.
  • G+G Toughened Glass Panel: The touch panel features 6H hardness, ensuring durability and scratch resistance.

3. System Compatibility
The Waveshare 7-inch QLED Quantum Dot Display seamlessly integrates with various systems:

  • Raspberry Pi: Supports Raspberry Pi OS (with 5-point touch), Ubuntu, Kali, and Retropie.
  • Jetson Nano: Compatible with Ubuntu (single-point touch, driver-free).
  • PC: Works with Windows 11, 10, 8.1, 8, and 7 (5-point touch, driver-free).
  • Game Consoles: Connects to Xbox 360, PS4, and Nintendo Switch.

4. Design Details

  • LCD FFC Cable Anti-Interference: Ensures stability for industrial applications.
  • VCOM Voltage Adjustment: Optimizes display effect.
  • USB Protocol Translator: Converts touch signals into standard multi-point touch protocols.
  • Wide Range USB Power Input: Prevents display flickering due to low USB voltage.
  • Low Dropout Ideal Diode Isolation: Ensures reliable power supply.
  • Dual Audio Outputs: Supports earphones and speakers.
  • OSD Menu Config Buttons: Adjust backlight and display color.

Conclusion:

The Waveshare 7-inch QLED Quantum Dot Display is a versatile solution for projects that demand high-quality visuals and responsive touch interaction. Whether you’re building a Raspberry Pi-based kiosk, a Jetson Nano-powered display, or a Windows PC setup, this display delivers exceptional performance.
