Banana Pi M6 Power explored: A Full-Fledged Guide to the Next-Generation SBC

Banana Pi M6 Power explored: A Full-Fledged Guide to the Next-Generation SBC.

Introduction

The Banana Pi BPI-M6 is a state of the art single-board computer (SBC) brought to you by Banana Pi in 2022. This influential device is designed for AI edge computing, smart home devices, and IoT applications that are constantly growing. The present blog post will explicate the technical specifications, performance capacity and real-world usage of the Banana Pi M6 thereby emphasizing why it is unique among other SBCs in existence today.

Technical Specifications

Synaptics VS680 powers the Banana Pi M6 which has a quad-core Cortex-A73 processor clocked at 2.1GHz alongside a Cortex-M3 processor as well. Combining these elements ensures its resilience hence it can be used for many purposes. The device also contains an Imagination GE9920 GPU with excellent graphics capabilities, and an NPU that delivers up to 6.75 TOPS suitable for machine learning and artificial intelligence workloads too.

Key specifications include:



Model/TypeBanana Pi M6
CPUSynaptics VS680 quad-core Cortex-A73 (2.1GHz) and One Cortex-M3 processor
GPUImagination GE9920 GPU
NPU for AIUp to 6 .75Tops
Memory4 GB LPDDR4
StorageMicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Video1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) out, and 1 HDMI in Port
Audio Output(s)1 x HDMI digital output
DisplayMIPI DSI interface
M.2 interfaceM.2 Key E(PCIe + MIPI CSI)
USB portsUSB 3.0 PORT (x4)
GPIO40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
SwitchesSPI boot and U-boot
LEDPower Status and Activity status
Power Source5 volt @3A TYPE C
Size & Weight92x60mm, 48g
OSAndroid and Linux

AI and Edge Computing

The Ai and edge computing are topics that are closely related and can be looked at interchangeably. The Banana Pi M6 is famous for AI as well as edge computing because it incorporates an inbuilt neural network accelerator. Synaptics VideoSmart VS680 SoC has a CPU, NPU, GPU all integrated into one chip making it one of the best choices among smart displays, cameras, set-top boxes and media streamers.

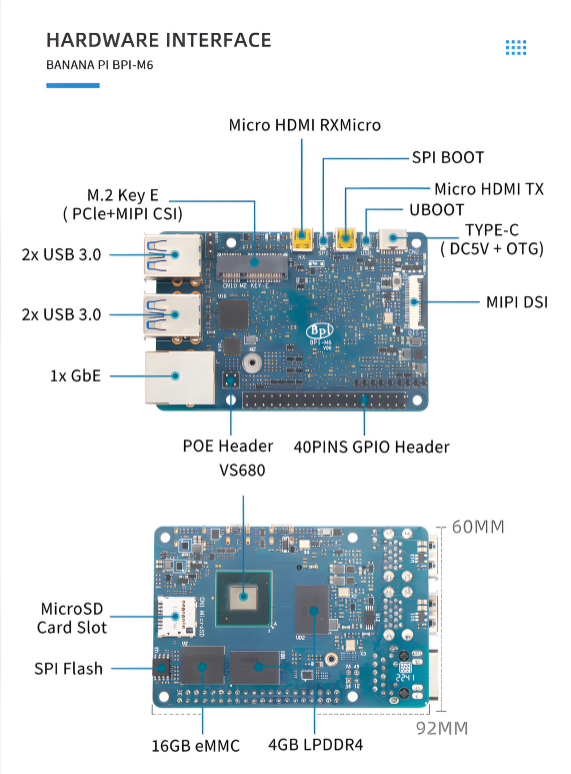

Connectivity and Interfaces

With four USB 3.0 ports, a gigabit Ethernet port, and HDMI in/out capabilities, the Banana Pi M6 offers extensive connectivity options. The MIPI DSI interface and M.2 Key E slot provide additional expansion possibilities, making it suitable for a wide range of applications, from smart home devices to industrial automation.

Performance and Benchmarking

With its powerful combination of CPU and GPU, the Banana Pi M6 produces excellent performance figures. Performance benchmarks show that it outperforms many other SBCs in its class particularly when performing multimedia processing tasks or those involving AI. This onboard NPU greatly accelerates machine learning functions thereby making it popular with developers who are working on AI projects.

Use Cases and Applications

The versatility of the Banana Pi M6 makes it suitable for various real-world applications:

  • Smart Home Devices: From smart displays to security cameras, the M6 can handle multiple roles in a smart home setup.
  • IoT Applications: Its robust connectivity options and processing power make it ideal for IoT projects.
  • Media Streaming: The Qdeo engine and HDMI capabilities allow for seamless media streaming and 4K video processing.
  • AI Projects: The integrated NPU and neural network accelerator enable advanced AI applications, such as face recognition and object detection.

Getting Started

Starting with Banana Pi M6 is not difficult at all. You can install either Linux or Android operating systems on eMMC storage or MicroSD card. Then, the adapters are switched on by connecting them to peripheral devices like mouse, keyboard and display via a 5V @ 3A Type-C adaptor. To start you off, there is documented information in great detail and a community where you can seek support.

Community & Support

The development community of banana pi is an invaluable resource for developers and enthusiasts alike. If you browse through the forums, read documentation, go through tutorials among others; one can find support and inspiration that they crave for when it comes to their projects. Whether you’re a beginner or an experienced developer, the community is there to assist you.

Conclusion

There is no doubt that Banana Pi M6 has earned its place as one of the strongest and most versatile single board computers available in this industry today. High performance CPU capable of being coupled with powerful GPU plus exceptional NPU add-ons along with numerous connectivity options make it ideal for various tasks. In view of changing technology trends, this product is best suited to meet these expectations in near future as well.
