Tanna TechBiz Eagle - 201 Carrier Board for NVIDIA® Jetson Orin Nano™/ NX

SKU

TEMP-ACC-0559

Brand Reward Points

₹9,999.00 ₹11,798.82

In Stock

Categories: Product Brand Tanna TechBiz (TTB) Carrier Boards for Nvidia Jetson Modules Tanna TechBiz

Topic: Topic

Frequently bought together

Details

Product Description

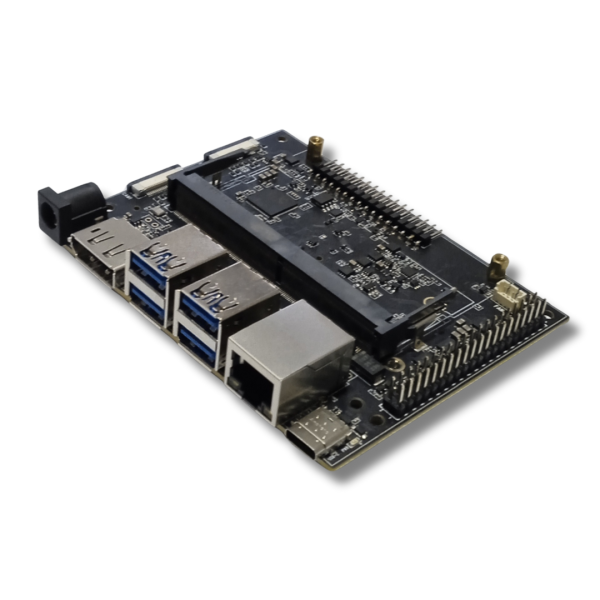

Tanna TechBiz - Eagle 201 Carrier Board For NVIDIA® Jetson Orin Nano™ / NX built with NVIDIA® Jetson Orin Nano™ & NX

The Tanna TechBiz Eagle 201 Carrier Board for NVIDIA® Jetson Orin Nano™ / NX sets a new standard for creating entry-level AI-powered solutions like robots, smart drones, and intelligent cameras. Its compact design, extensive connectivity options, and up to 157 TOPS (Sparse) 78 TOPS (Dense) of AI performance make it the perfect platform to bring your AI concepts to life. Offering up to 80X the performance of Jetson Orin Nano™ / NX, it can run advanced AI models, including transformer and robotics models, seamlessly.

This carrier board fully supports the NVIDIA Jetson Orin Nano™ / NX modules, making it the ideal platform for developing your next-gen edge-AI product. Powered by an Ampere architecture GPU and a 6-core ARM CPU, it supports multiple concurrent AI applications and high-performance inference. With versatile connectors, including options for both 2-lane MIPI cameras, the Tanna TechBiz solution ensures smooth integration and scalability for all your AI-driven projects.

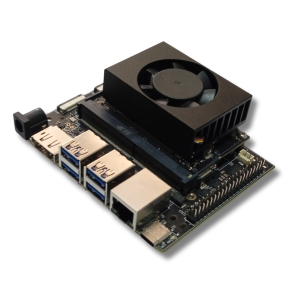

Elevate your AI development with Tanna TechBiz Powerful, Eagle 201 Full System design.

Application

Application Fields:

AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI

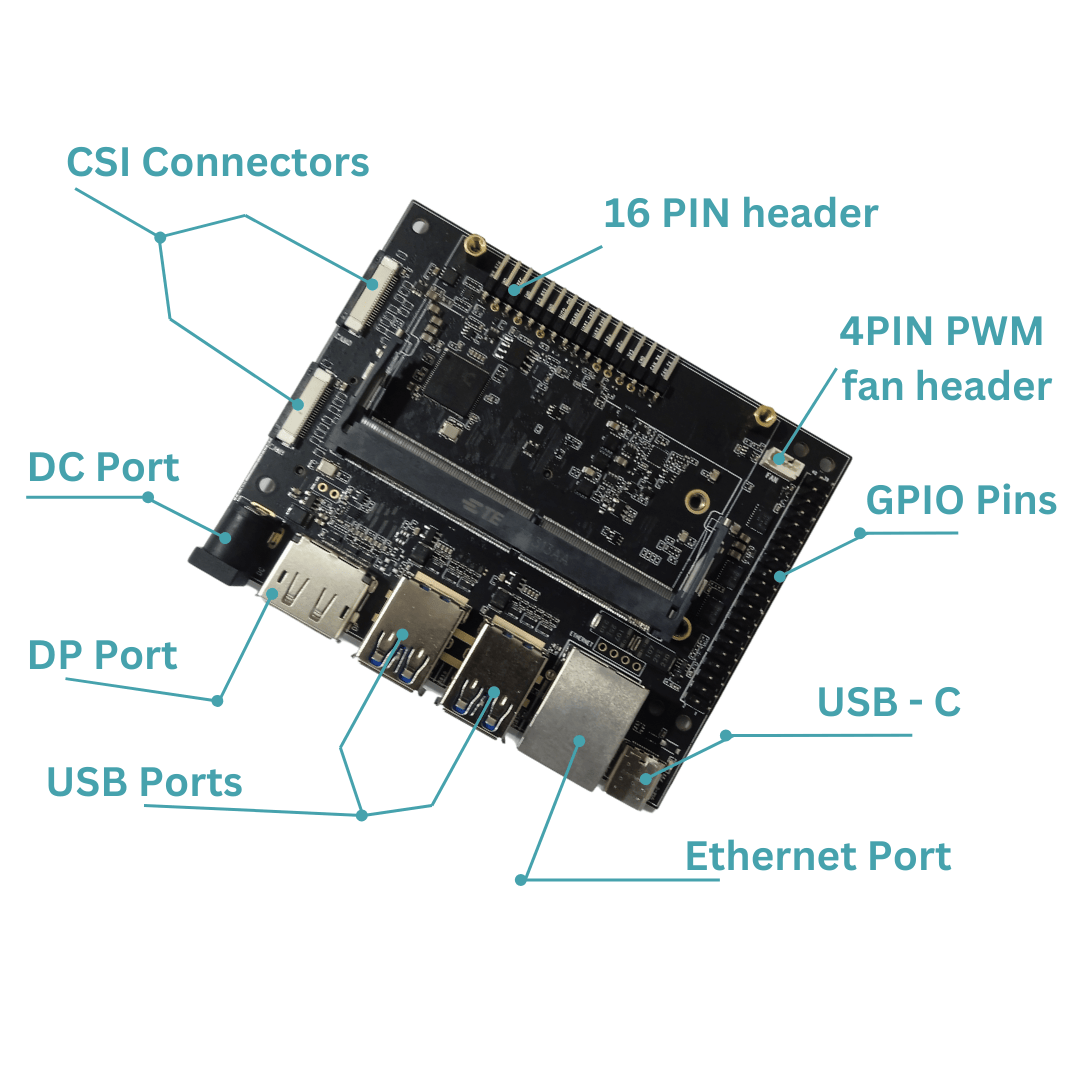

Eagle 201 Carrier Board Specifications

Feature	Details
Model	Tanna TechBiz - Eagle 201 Carrier Board For NVIDIA® Jetson Orin Nano™ / NX
Type	For NVIDIA® Jetson Orin Nano™ / NX
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin Nano™ 4GB NVIDIA® Jetson Orin Nano™ 8GB NVIDIA® Jetson Orin NX 8GB NVIDIA® Jetson Orin NX 16GB
Camera	2 X MIPI CSI 2-lane 22 Pin Camera Connectors
USB	4 X USB 3.0 Type A Ports 1 X USB Type-C Connector for Data Only
Display	1 X Display Port Connector
Operating Temperature	0°C~65°C
SO DIMM Connector	1 X 260 Pin SO DIMM Connector for Jetson Orin Nano™ / NX Module
Networking / Ethernet	1 X RJ-45 Gigabit Ethernet (10/100/1000m) 1 X M.2 Key E for Wi-Fi / Bluetooth Module
FAN	1 X 4 Pin Fan Connector (5V PWM)
Storage	1 X M.2 Key M (Connector to Support 2280 NVME SSD)
Multifunctional Port	1 X 40-pin Expansion header 1 X 12-pin Button header GPIO, I2C, I2S, SPI, UART
Input Power	DC power jack (9-19V ⎓ 5A MAX)
RTC	1 X RTC-2 Pin Connector (Supports CR1220-3V Battery But Not Included)
Mechanical Dimensions (L x W x H)	40mm x 80mm x 38mm
