RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0 ( SKU : 27476 )

SKU
TEMP-ACC-0580
Brand Reward Points
0
₹729.00 ₹860.22
In Stock
Topic: Topic

Product Description

RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0, High Speed And Low Latency, RTL8822CE-CG core, High Speed Wireless Card


Features At A Glance

  • Supports 2.4G/5GHz dual-band, the speed up to 300Mbps in the 2.4GHz band and 867Mbps in the 5GHz band
  • Bluetooth 5.0 standard, compatible with Bluetooth 2.1+EDR
  • Adopts NGFF (M.2 A/E Key) interface
  • Supports 802. 11ac Wave-2 MU-MIMO and 802. 2.4/5G dual-band 11n MIMO
  • Supports Linux, Windows 10/11, etc.
Adopts RTL8822CE-CG Core - Supports IEEE 802.11 a/b/g/n/ac

Dual-band Wi-Fi - Supports 2.4G/5GHz dual-band, the speed up to 300Mbps in the 2.4GHz band and 867Mbps in the 5GHz band

Bluetooth 5.0 with BLE support - Can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission

Interface Introduction

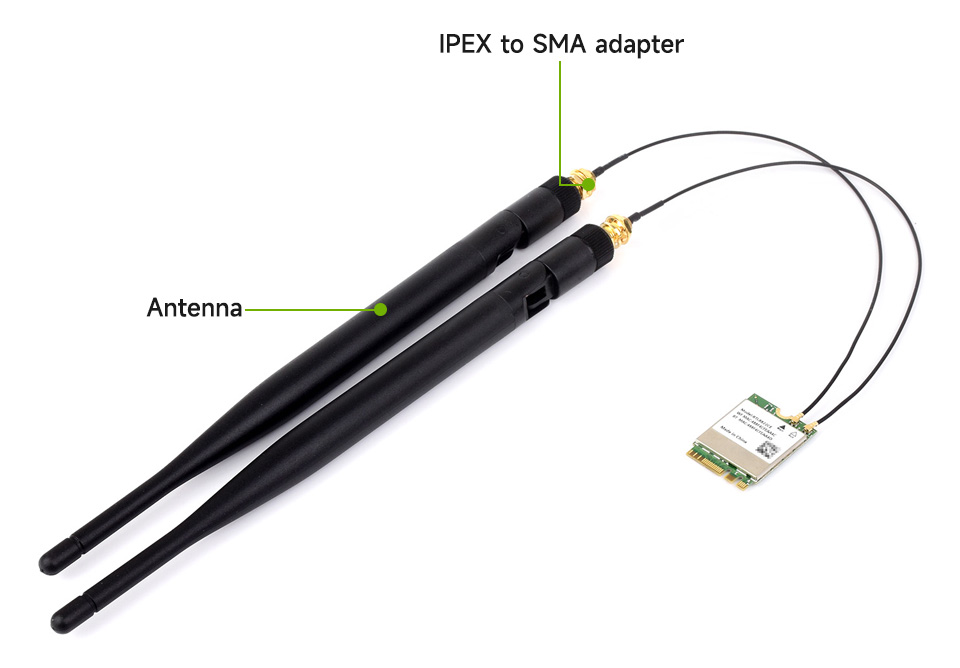

Access to antenna via IPEX connector

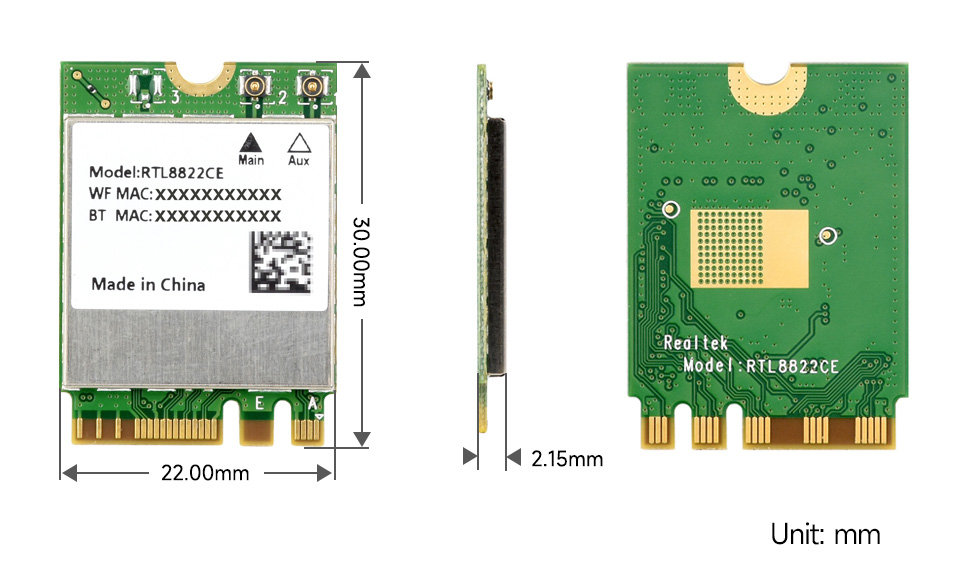

Outline dimensions
Write Your Own Review
You're reviewing:RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0 ( SKU : 27476 )
  1. Wireless-RTL8822CE x1
  2. IPEX to SMA cable ~20cm x2
  3. Antenna x2
