Tanna TechBiz Eagle - 201 Full System with NVIDIA Jetson Orin Nano 4GB/8GB Module: The Ultimate Edge AI Solution

Introduction

The Tanna TechBiz Eagle - 201 Full System represents a breakthrough in the field of edge AI development, offering unmatched versatility, compact design, and the powerful performance of the NVIDIA Jetson Orin Nano. Designed to cater to AI-driven applications like robotics, smart drones, and intelligent cameras, this system is a game-changer for developers and businesses alike.

The Tanna TechBiz Eagle 201 Carrier Board for NVIDIA® Jetson Orin Nano™ sets a new standard for creating entry-level AI-powered solutions like robots, smart drones, and intelligent cameras. Its compact design, extensive connectivity options, and up to 67 TOPS (sparse) and 33 TOPS (dense) of AI performance make it the perfect platform to bring your AI concepts to life. Offering up to 80X the performance of Jetson Orin Nano™, it can run advanced AI models, including transformer and robotics models, seamlessly.

This carrier board fully supports the NVIDIA Jetson Orin Nano™ modules, making it the ideal platform for developing your next-gen edge-AI product. Powered by an Ampere architecture GPU and a 6-core ARM CPU, it supports multiple concurrent AI applications and high-performance inference. With versatile connectors, including options for both 2-lane MIPI cameras, the Tanna TechBiz solution ensures smooth integration and scalability for all your AI-driven projects.

Elevate your AI development with Tanna TechBiz Powerful, Eagle 201 Full System design.

Comprehensive instruments RoHS & CE Certified | Proudly Made in India.

Application

Application Fields:

AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI

Technical Specifications

Jetson Orin Nano System on Module
Feature	Tanna TechBiz Eagle - 201 Full System with Nvidia Jetson Orin Nano 4GB Module	Tanna TechBiz Eagle - 201 Full System with Nvidia Jetson Orin Nano 8GB Module
AI Performance	34 TOPS (Sparse) 17 TOPS (Dense)	67 TOPS (Sparse) 33 TOPS (Dense)
GPU	512 CUDA Cores 16 Tensor Cores 1020 MHz 34/17 INT8 TOPS (S/D) 8.5 FP16 TFLOPS	1024 CUDA Cores 32 Tensor Cores 1020 MHz 67/33 INT8 TOPS (S/D) 17 FP16 TFLOPS
CPU	6X A78 1.7 GHz
DRAM BW	51 GB/s	102 GB/s
MODULE POWER	7W \| 10W \| 25W	7W \| 15W \| 25W

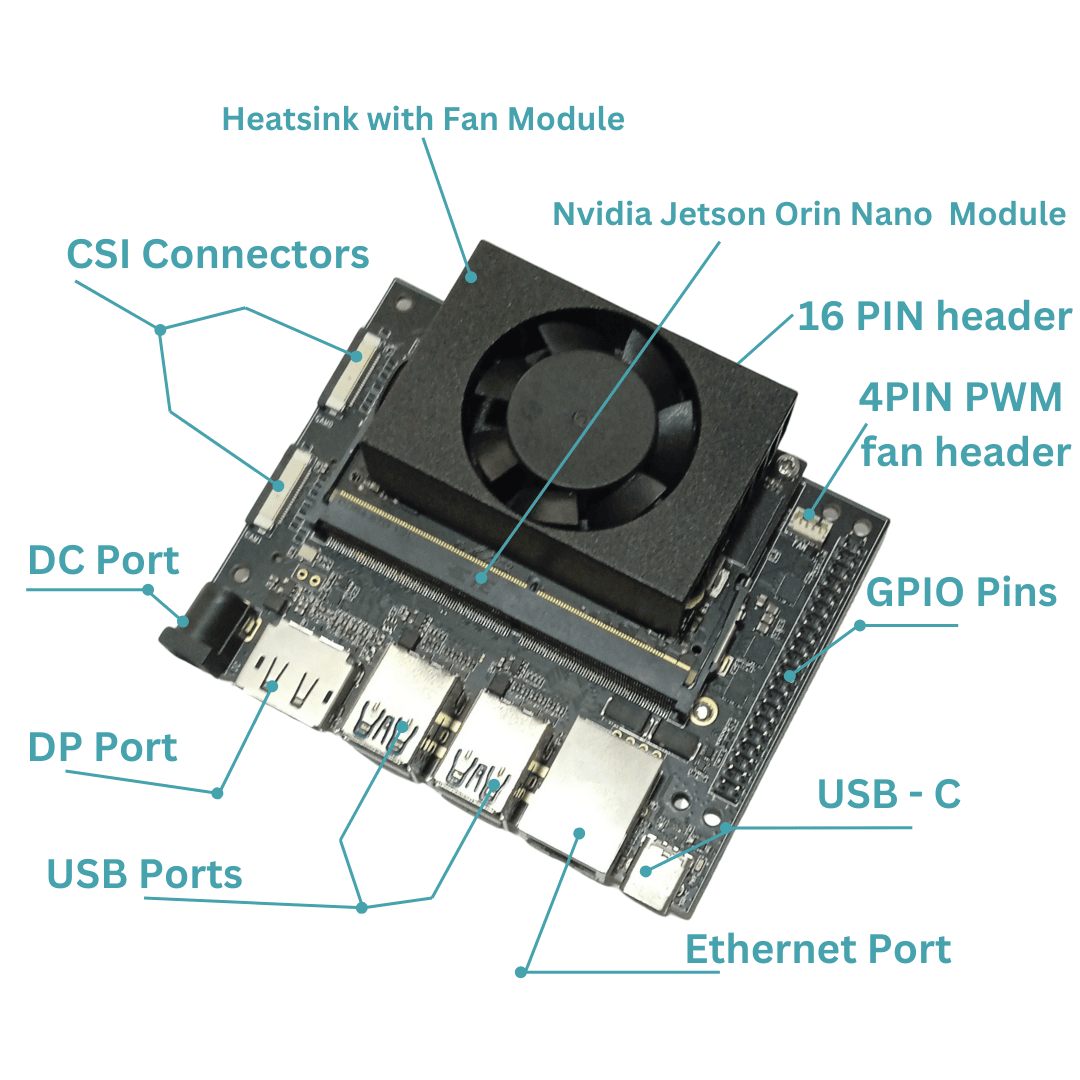

Carrier Board
Feature	Specification
Storage	1 X M.2 Key M (Connector to Support 2280 NVME SSD)
Ethernet	1 X RJ-45 Gigabit Ethernet (10/100/1000m)
M.2 Key E	1 X M.2 Key E for Wi-Fi / Bluetooth Module
USB	4 X USB 3.0 Type A Ports 1 X USB Type-C Connector for Data Only
Camera	2 X MIPI CSI 2-lane 22 Pin Camera Connectors
Display	1 X Display Port Connector
Fan	1 X 4 Pin Fan Connector (5V PWM)
CAN	1x CAN
Multifunctional Port	1 X 40-pin Expansion Header 1 X 12-pin Button Header, GPIO, I2C, I2S, SPI, UART
RTC	1 X RTC-2 Pin Connector (Supports CR1220-3V Battery But Not Included)
Power	DC power jack (9-19V ⎓ 5A MAX)
Mechanical Dimensions	40mm x 80mm x 38mm
Operating Temperature	0°C~65°C

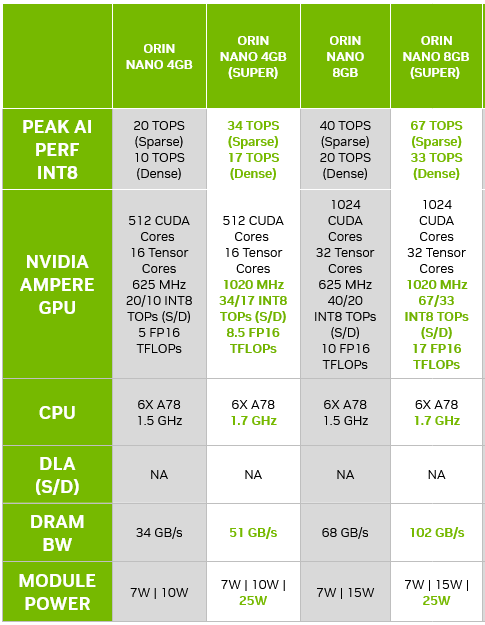

All Jetson Orin Nano series modules gets a super performance boost

NVIDIA is also refreshing the performance across the Jetson Orin Nano series. From small AI cameras to large autonomous machines, every edge device needs the compute capability to run generative AI models.

With the same module hardware, you can take advantage of the up to 1.7x increased performance across the different modules.
