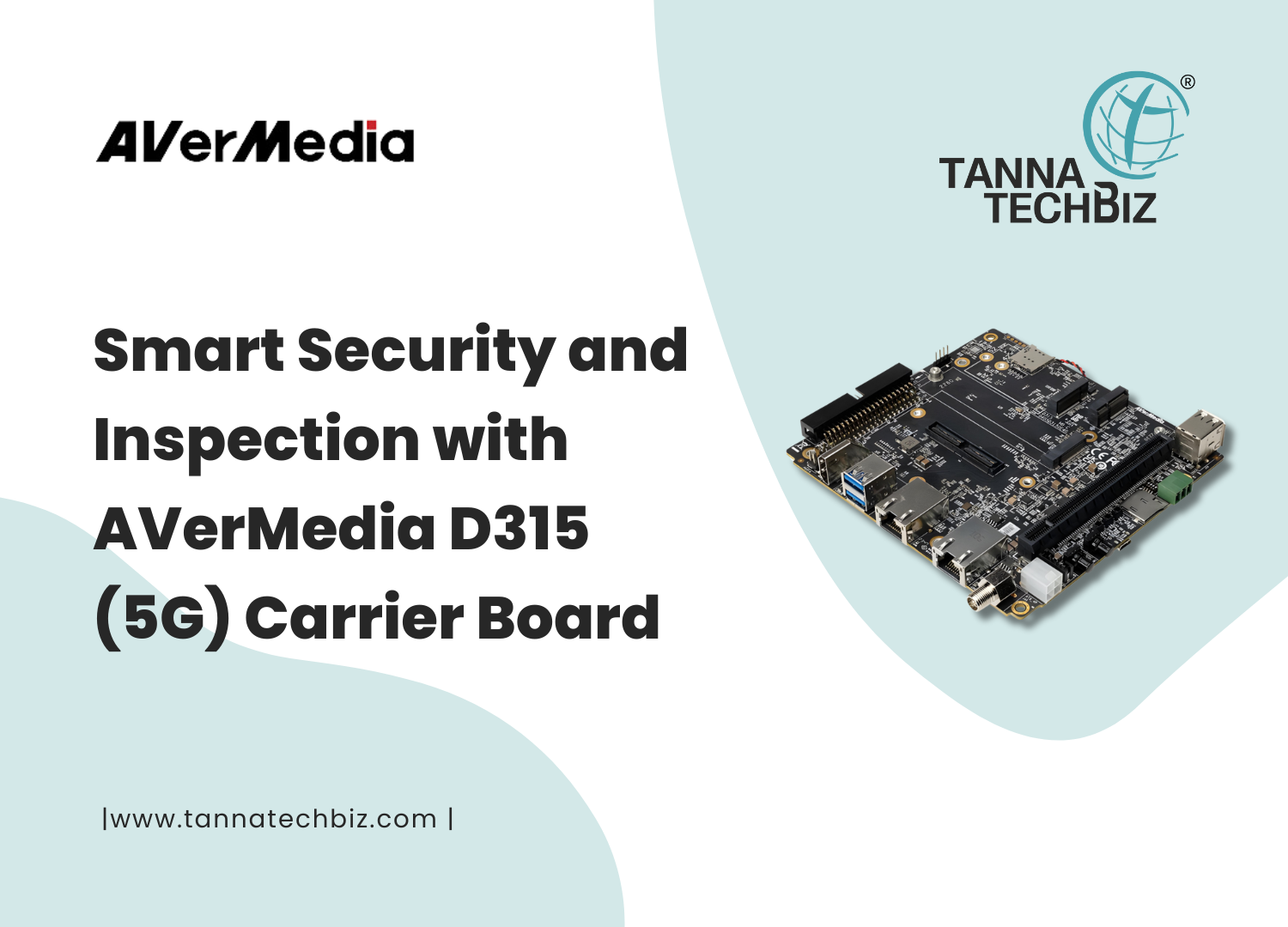

Smart Security and Inspection with AVerMedia D315 (5G) Carrier Board
Welcome to Tanna TechBiz! Today, we are thrilled to introduce a cutting-edge product that is set to revolutionize the world of autonomous machines and AI-driven applications: the AVerMedia D315 (5G) Carrier Board for the NVIDIA Jetson AGX Orin 32GB/64GB Module. In this comprehensive blog post, we will delve into the features, applications, and technical specifications of this remarkable device, demonstrating why it is a must-have for developers and businesses aiming to harness the power of AI and IoT.
Introduction to AVerMedia D315 (5G) Carrier Board
The AVerMedia D315 (5G) Carrier Board is designed to support the NVIDIA® Jetson AGX Orin and AGX Orin Industrial modules, delivering next-level AI performance and power-efficient capabilities for a wide range of autonomous machines. This carrier board is a game-changer for embedded IoT applications, offering advanced analytics and the ability to handle multiple complex tasks simultaneously.
Key Features
AI Performance: The D315 leverages the NVIDIA Jetson AGX Orin module, known for its exceptional AI processing power. This allows for real-time analytics, advanced machine learning, and seamless handling of embedded IoT applications.
Networking Capabilities: The carrier board is perfect for Autonomous Mobile Robots (AMRs) with its robust networking features. It includes a 120-pin high-speed connector for MIPI SerDes cameras and a 10G Ethernet port, making it ideal for intelligent security uses.
Expansion Options: Despite its compact size, the D315 offers extensive expansion capabilities with a PCIe slot, supporting multiple IP camera streams and smart inspection applications. It is also compatible with Wi-Fi 6 and 5G technologies, ensuring high-speed connectivity.
Applications Across Key Industries
The AVerMedia D315 (5G) Carrier Board is designed with flexibility in mind, making it suitable for various verticals. Here’s how it excels in different industries:
Autonomous Mobile Robots (AMRs)
AMRs rely heavily on live camera feeds to make rapid and flexible adjustments to their working processes. The D315, with its advanced camera connectivity and real-time processing power, significantly enhances the productivity of AMRs. It allows for seamless navigation and operation in dynamic environments, making it an essential component for modern robotics.
Smart Security
In the realm of smart security, the D315 shines with its ability to handle multiple IP camera streams simultaneously. This capability, coupled with its high-speed networking and advanced video analytics, ensures comprehensive surveillance and community safety. The carrier board’s AI prowess enables it to detect and respond to security threats in real-time, making it indispensable for intelligent security systems.
Smart Inspection
For industries that rely on fast and accurate quality control, such as manufacturing, the D315 offers unparalleled smart inspection capabilities. Its ability to connect with 10GigE vision cameras and handle high-speed data streams ensures precise and efficient inspection processes. This leads to improved product quality and reduced downtime, ultimately boosting overall operational efficiency.
Detailed Technical Specifications
Understanding the technical specifications of the AVerMedia D315 (5G) Carrier Board is crucial for developers and businesses looking to integrate this powerful device into their systems. Here’s a closer look at its specifications:
•1x USB 2.0 Micro-B for recovery •2x USB 2.0 Type-A •2x USB 3.2 Type-A
Temperature
•Operating temperature -40°C~85°C •Storage temperature -40°C ~ 85°C •Relative humidity 40 °C @ 95%, Non-Condensing
Storage
1x micro-SD card slot
Expansion Header
•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs ) •1x M.2 B key (for 4G LTE module or 5G module) •1x M.2 E key (for Wi-Fi 6E) •1x M.2 M key (for SSD or AVerMedia capture •card: CN311-H, CN312SW, CN312MW) •1x Micro SIM socket •1x PCIe x16 (only support x8 PCIe lanes) •1x CAN bus with transceiver •120-pin (for MIPI SerDes) •OOB support
Input Power
Voltage: DC 12V~54V Current: DC in JACK on board: 7A Max ATX 4pin: 10.8A Max
Power Cord
US/JP/EU/UK/TW/AU/CN
Fan Module
Heat sink with fan (optional)
Buttons
Power and Recovery
RTC Battery
Support RTC battery and battery life monitoring by MCU
PCB/Electronics Mechanical Info
141.5mm (W) x 133.5mm (L) x 29mm (H) Weight: 189g
Certifications
CE, FCC, KC
Why Choose AVerMedia D315?
The AVerMedia D315 (5G) Carrier Board stands out in the market due to its exceptional performance, versatility, and robust design. Here are some reasons why it should be your go-to choice.
Superior AI Performance: Leveraging the power of the NVIDIA Jetson AGX Orin module, the D315 delivers unmatched AI processing capabilities, making it ideal for real-time analytics and machine learning applications.
Comprehensive Connectivity: With multiple networking options, high-speed camera connectivity, and extensive expansion capabilities, the D315 ensures seamless integration and operation in various environments.
Compact and Robust Design: Despite its compact size, the D315 is packed with features and is built to withstand harsh conditions, making it suitable for industrial applications.
Flexibility Across Industries: Whether you are working in robotics, smart security, or manufacturing, the D315 offers the flexibility and performance needed to meet the demands of these industries.
Conclusion
At Tanna TechBiz, we are committed to providing innovative solutions that empower businesses to harness the full potential of AI and IoT. The AVerMedia D315 (5G) Carrier Board for the NVIDIA Jetson AGX Orin module is a testament to this commitment. With its advanced features, robust design, and versatile applications, it is poised to transform the landscape of autonomous machines and embedded IoT systems.
For more information and to purchase the AVerMedia D315 (5G) Carrier Board, visit our product page.
Stay tuned to our blog for more insights and updates on the latest in AI and IoT technologies. If you have any questions or need further assistance, feel free to reach out to our team. We are here to help you unlock the future of technology!
