Product Description

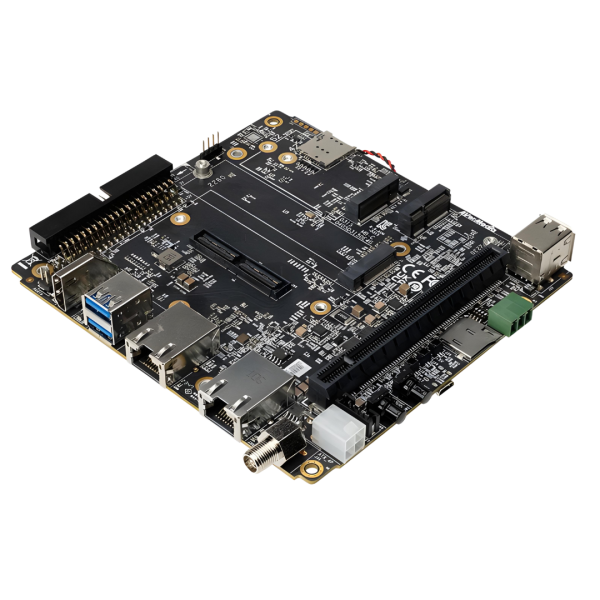

AVerMedia Carrier Board D315 5G support NVIDIA® Jetson AGX Orin & AGX Orin Industrial , which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

Networking : Perfect for Autonomous Mobile Robots (AMRs)

Camera Connectivity : 120-pin high-speed connector for MIPI SerDes cameras
                                         - 10G Ethernet for intelligent security uses

Expansion : Compact dimension with PCIe slot for multipurpose expansion

  • Supports multiple IP cameras streaming simultaneously
  • Compact dimension with PCIe slot for multipurpose expansion
  • Connector for 10GigE vision camera suited for smart inspection
  • Adoptable of Wi-Fi 6 and 5G technologies

Key Industries

  AVerMedia devices are built with flexibility in mind and are designed for the following verticals.


AMRs Smart Security Smart Inspection
AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth. Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety. Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.





Technical Specifications

Model Avermedia D315
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson AGX Orin™ module (32GB or 64GB)
Networking

1x GbE RJ-45

1x 10G RJ-45

Display Output 1x HDMI 2.0 (3840x2160 at 60Hz)
MIPI & SerDes Camera (120-pin) GMSL2/FPD-link III/V-by-One® HS (STURDeCAM20 optional)
USB

•1x USB 2.0 Micro-B for recovery

•2x USB 2.0 Type-A

•2x USB 3.2 Type-A

Temperature

•Operating temperature -40°C~85°C

•Storage temperature -40°C ~ 85°C

•Relative humidity 40 °C @ 95%, Non-Condensing

Storage 1x micro-SD card slot
Expansion Header

•40-pin (UART, SPI, CAN, I2C, I2S, GPIOs )

•1x M.2 B key (for 4G LTE module or 5G module)

•1x M.2 E key  (for Wi-Fi 6E)

•1x M.2 M key (for SSD or AVerMedia capture card:  CN311-H, CN312SW, CN312MW)

•1x Micro SIM socket

•1x PCIe x16 (only support x8 PCIe lanes)

•1x CAN bus with transceiver

•120-pin (for MIPI SerDes)

•OOB support

Input Power

Voltage: DC 12V~54V

Current: DC in JACK on board: 7A Max

ATX 4pin: 10.8A Max

Power Cord  US/JP/EU/UK/TW/AU/CN
Fan Module  Heat sink with fan (optional)
Buttons Power and Recovery
RTC Battery  Support RTC battery and battery life monitoring by MCU
PCB/Electronics Mechanical Info

141.5mm (W) x 133.5mm (L) x 29mm (H)

Weight: 189g

Certifications CE, FCC, KC
Write Your Own Review
You're reviewing:Avermedia D315 (5G) Carrier Board for NVIDIA Jetson AGX Orin 32GB/64GB Module
  1. - Avermedia D315 (5G) Carrier Board X1
  2. - Termial Block X1
  3. - 54V Adapter / Power Cord X1
  4. - Thermal Pad X1
