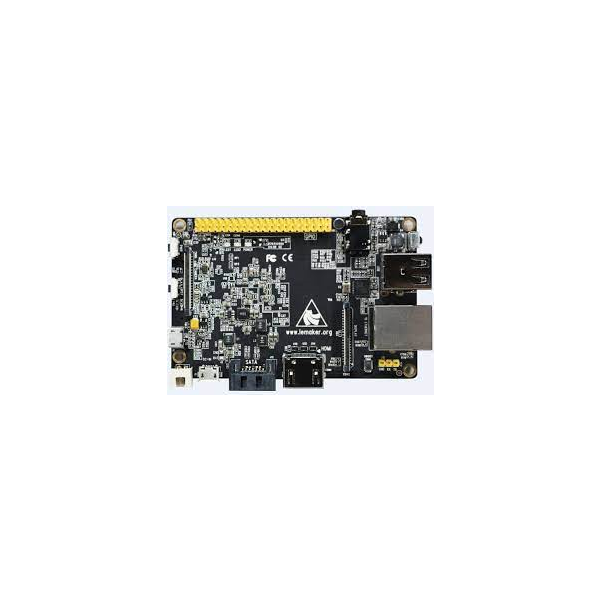

Banana Pro™ is an updated version of Banana Pi™ designed by the LeMaker Team. Try Banana Pro™ today and take advantage of the many enhanced features.
Banana Pro™ is compatible with many Linux-based operating system and has many distributions specially developed for Banana Pi™ Hardware. Some of these distributions include Lubuntu, Android, Debian, Bananian, Berryboot, OpenSuse, Scratch, Fedora, Gentoo, Open MediaVault, OpenWRT. Banana Pro™ also supports the BSD system.
Banana Pro™ has a wide selection of home applications including: Building a low-cost computer, Servers (for Multimedia, Minecraft or other home servers), Video Game Emulators, Home Security Cameras and more.
Banana Pro™ is an excellent educational learning tool that can be used for many projects including: building Multimedia projects,Robots, Arduino applications or Computer Programming with many popular programming languages available including Scratch (a drag and drop programming language for people beginning to learn how to code).
| Model | Banna Pro |
|---|---|
| SoC | Allwinner® A20(sun 7i) |
| CPU | ARM® Cortex™-A7 Dual-Core (ARM v7 instruction set) |
| GPU | Mali400MP2 , supproting OpenGL ES 2.0/1.1(hardware acceleration support) |
| RAM | 1GB DDR3 SDRAM (shared with GPU) |
| PMU | AXP209 |
| Features | |
| Storage | MicroSD (TF) card slot SATA 2.0 (suggest 2.5 inch SSD or HDD) |
| Ethernet Port | 10/100/1000Mbps ethernet (Realtek RTL8211E/D) |
| Wireless | WiFi 802.11 b/g/n 2.4GHz 1 x IR receiver |
| USB | 2 x USB2.0 Host 1 x USB 2.0 OTG (all direct from A20 chip) |
| Display | Supports multi-channel HD display: 1 x HDMI 1.4 (Type A - full) 1 x LVDS/RGB/CPU display interface (DSI) for raw LCD panels Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out) HDMI resolutions from 640×480 to 1920×1080 plus various PAL and NTSC standards |
| Audio | HDMI output Analog audio (via 3.5 mm TRRS jack shared with composite video out) I2S audio (also potentially for audio input) 1 x On-board micphone for audio input |
| Camera | 1 x Parallel 8-bit camera interface |
| EXPANSION INTERFACE | 1 x Power status led (red) 1 x User defined led1 (green) 1 x User defined led2 (blue) |
| LED | 1 x Power status led (red) 1 x User defined led1 (green) 1 x User defined led2 (blue) |
| Button | 1 x Reset button 1 x Power button 1 x U-boot button |
| Power Source | 5V @ 2A via MicroUSB |
| OS Support | Android 4.2(4.4)/ Linux |
| Appearance characteristic | |
| Sizes | 92mm × 60mm |
| Weight | 45g |
| Banana Pro TM and Banana PiTM are trademarks of LeMaker | |
| Predicted Available Time | Nov 10, 2025 |
|---|
