Product Description

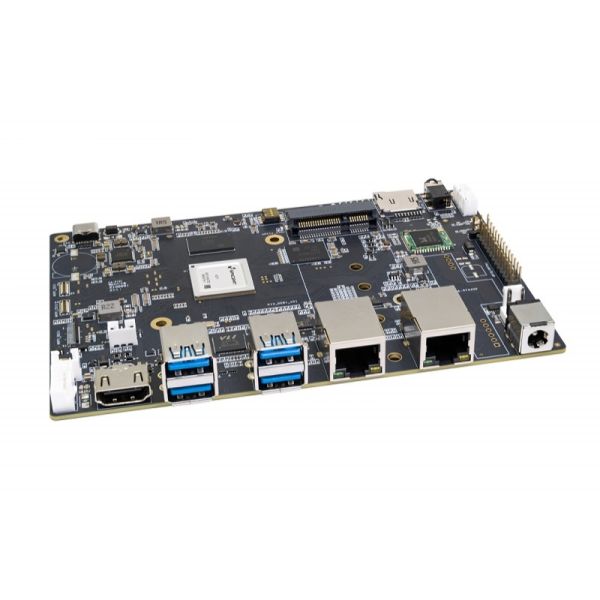

Banana Pi BPI-F3 is a industrial grade RISC-V development board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8G DDR and 16G eMMC onboard.2x GbE Ethernet prot, 4x USB 3.0 and PCIe for M.2 interface, supprt HDMI and Dual MIPI-CSI Camera.



Banana PI - F3  Features:

* 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
* Single-core general computing power equivalent to 1.3 times Cortex-A55
* Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
* 4K decoding and encoding
* 5-lane PCIE2.1 expansion capability
* 1x USB 3.0 + 2x USB 2.0 interfaces
* 12x UART serial ports
* Operating temperature range: -40°C to 85°C



Technical Specifications

Model/TypeBanana PI - F3 ( 4GB RAM + 16GB eMMC )
CPUSpacemiT K1 Otca-core X60(RV64GCVB),RVA22,RVV1.0

AI2.0Tops from RlSC-V Core

GPUIMG BXE-2-32@819MHz,32KB SLCOpenGL ES1.1/3.2EGL1.50penCL 3.0Vulkan 1.3

Memory2/4/8/16 GB LPDDR4 (Supports up to 16G LPDDR4)

Storage8/16/32/128 GB eMMC flash.(optional 4M SPI NOR,32M SPI NAND)

SD card

MicroSD card slot (Use SD card larger than 256M, no upper limit)

Wireless2.4G/5G WiFi and Bluetooth 4.2

Ethernet

2x GbE Ethernet port(supports PoE with add-on PoE HAT)

HDMI1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps )

DisplayMIPI DSI interface

AudioSpeaker,Mic, Earphone

CameraMIPI-CSI, Dual-shot support

USB4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG

PCIe

PCIE2.1 2lane * 2.
PCIEB 2lane connect M.2 KEY M( Support JMB582 expansion card to SATA )
PCIEC 1lane connect MINI PCIE
GPIO

26-pin header

ButtonsReset, Power and Burn

IRIR-Rx

LEDPower Status

PowerDC in and TYPE-C in

Size148x100 mm

Weight200g



Hardware Interface:
