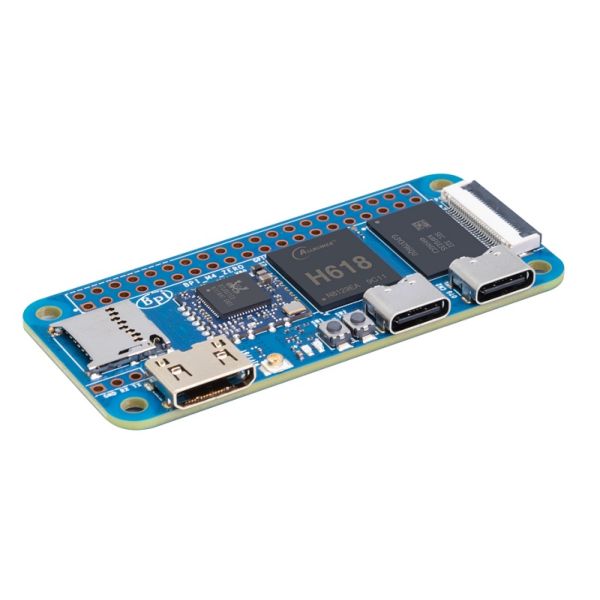

Banana Pi BPI-M4 Zero is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to DDR4, the capacity is quadrupled, and 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.
It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories.
Key Features
Allwinner H618, Quad-core ARM Cortex™-A53 processor
ARM Mali G31 GPU
2.4G/5G WIFI & Bluetooth 4.2
2G LPDDR4 RAM
8G eMMC flash memory
1x USB2.0 Type-C OTG, 5V power supply
1x USB2.0 Type-C
1x miniHDMI 2.0a
1x 24-pin FPC connector
1x USB2.0
1x 100Mbps Ethernet

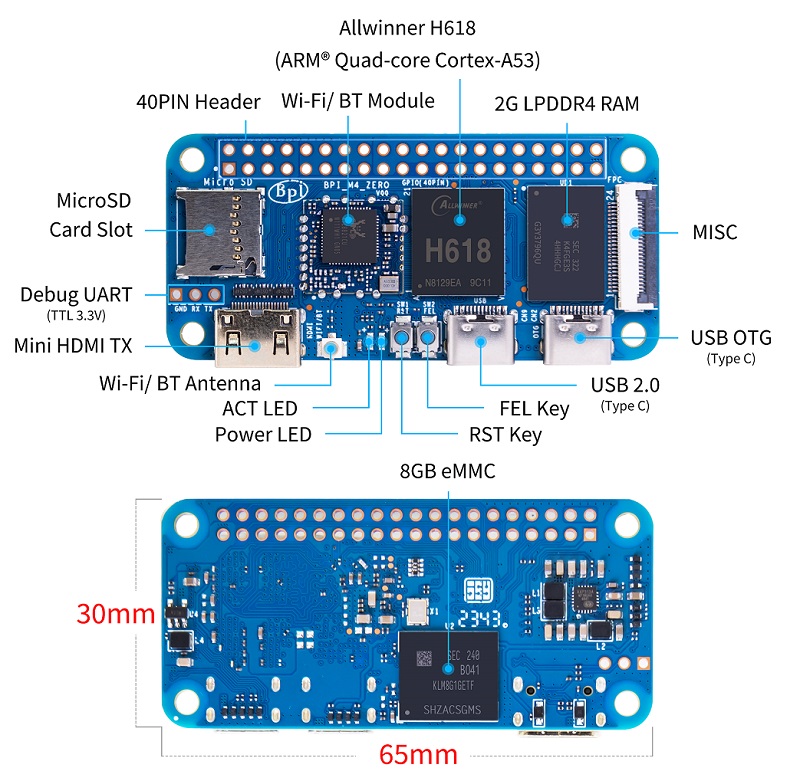

Hardware interface
Technical Specifications
Hardware Specification of Banana pi BPI-M4 Zero
CPU
Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
GPU
ARM Mali G31 GPU
Memory
2 GB LPDDR4
Storage
8G eMMC flash
SD card
MicroSD card slot, SDIO3.0
Wireless
2.4G/5G WiFi and Bluetooth 4.2
HDMI
1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
