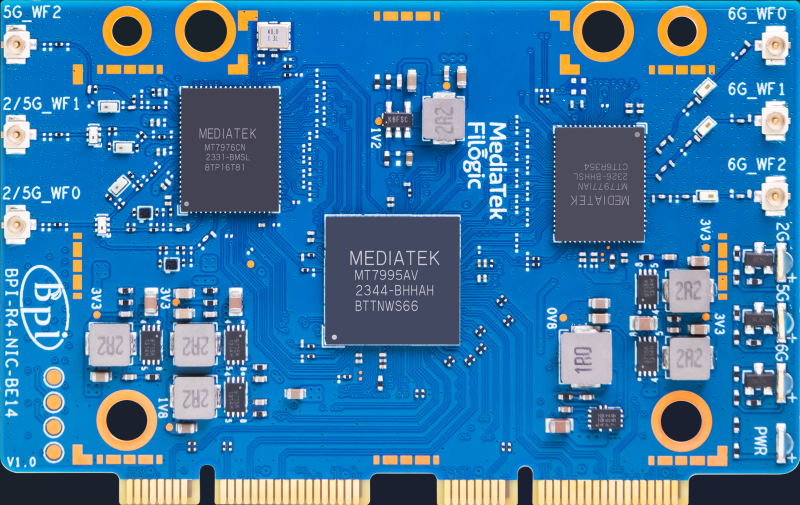

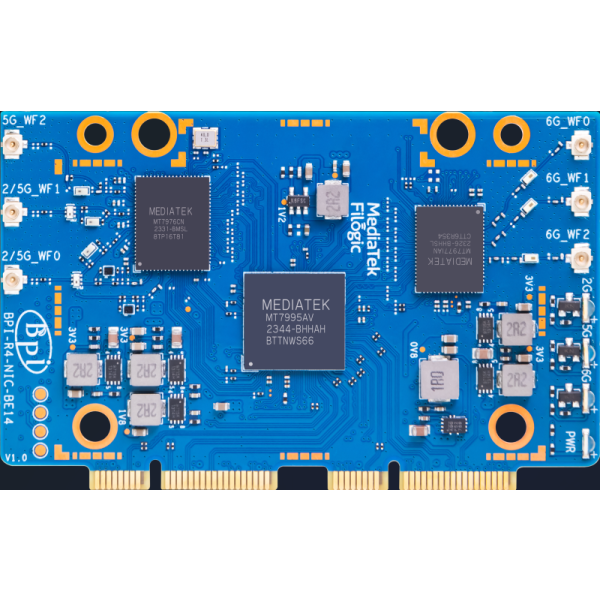

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.
Features
Platform
MediaTek MT7995AV chipset
32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload
