An Introduction Of Arducam Camera

Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors but also supports stereoscopy camera and IRCUT control features. With the given camera configuration files, users can switch between different cameras without any effort. It is the ideal solution for camera evaluation/testing, robot/drone, IoT, machine vision and scientific applications.

You Can Buy From Here :-  ArduCAM USB3.0 Camera Shield (B0111)

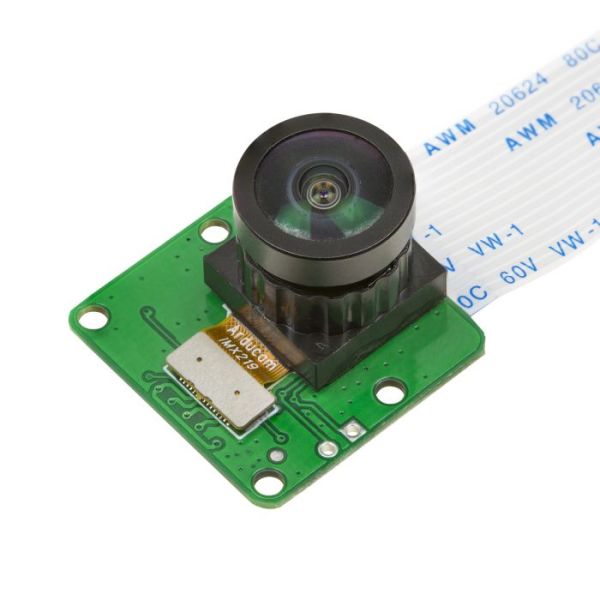

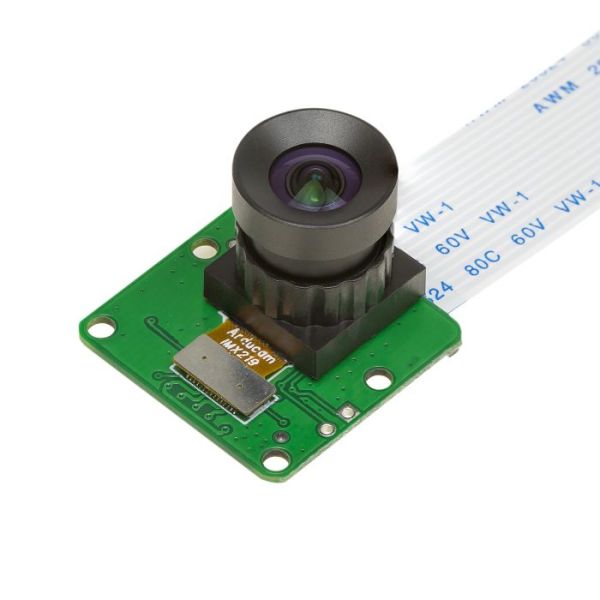

The Arducam IMX219 Wide Angle Camera Module (B0179) is a camera module specifically designed for the NVIDIA Jetson Nano developer kit. It utilizes the Sony IMX219 image sensor, which is a 1/4-inch CMOS active-pixel sensor with a resolution of 8 megapixels (3280 x 2464 pixels).The wide-angle lens of the camera module provides a field of view of approximately 62 degrees, allowing for a broader view compared to the standard IMX219 camera module. It is suitable for applications where a wider field of view is desired, such as robotics, surveillance, drones, and other computer vision projects.

You Can Buy From Here :- Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano (B0179)

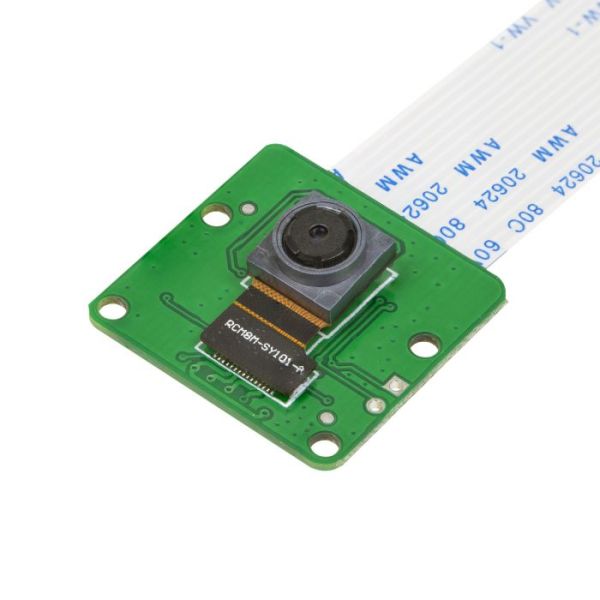

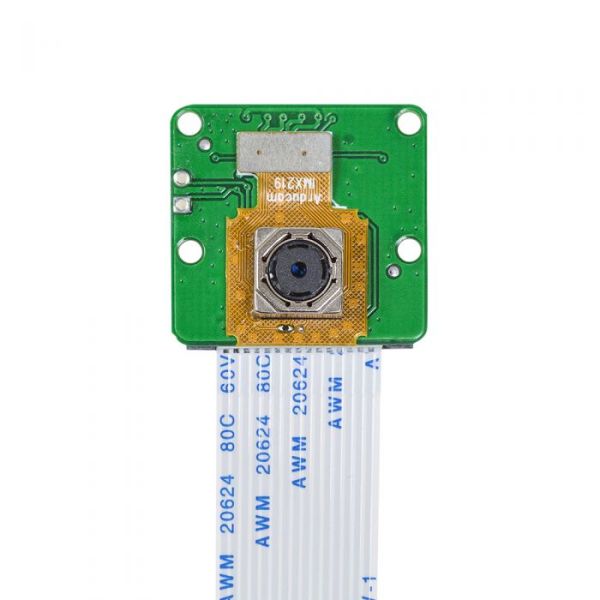

This camera is mainly designed for the Jetson Nano. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4). By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own. This Arducam IMX219AF camera module is designed mainly for the NVIDIA Jetson Nano platform and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is that the lens focus is programmable by software, and the Arducam team provides an opensource code to implement software autofocus features on the Jetson Nano.

You Can Buy From Here :-  Arducam NoIR IMX219-AF Programmable/Auto Focus IR Sensitive Camera

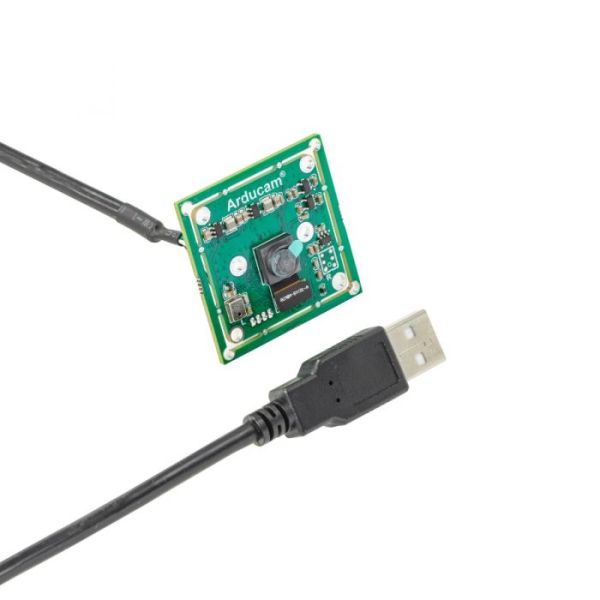

The OV9650 CAMERACHIPTMis a low voltage CMOS image sensors that provides the full functionality of asingle-chip SXGA (1280×1024) camera and image processor in a small footprint package. The OV9650provides full-frame, sub-sampled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This product has an image array capable of operating at up to 15 frames per second (fps) in SXGA resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, white pixel canceling, noise canceling, and more, are also programmable through the SCCB interface.

You Can Buy From Here :- Arducam 1.3MP OV9650 Camera for Arduino and Raspberry Pi

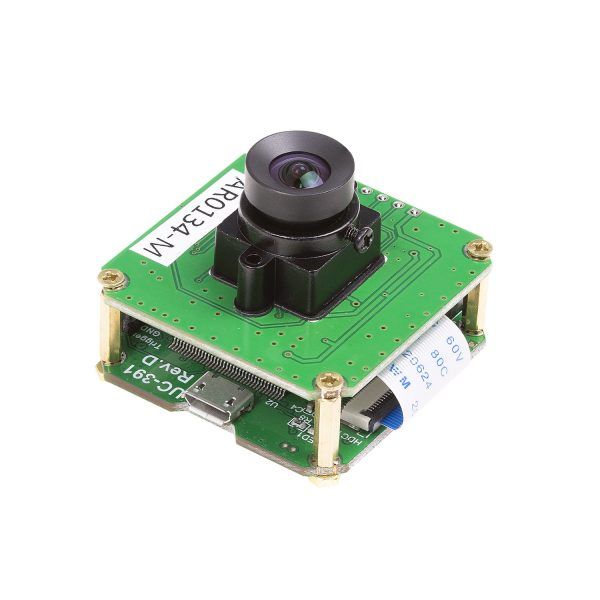

The AR0134 module is a 1/3 inch 1.2MP global shutter Monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode. High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.

You Can Buy From Here :-  Arducam CMOS AR0134 1/3-Inch 1.2MP Monochrome Camera Module (B0110)

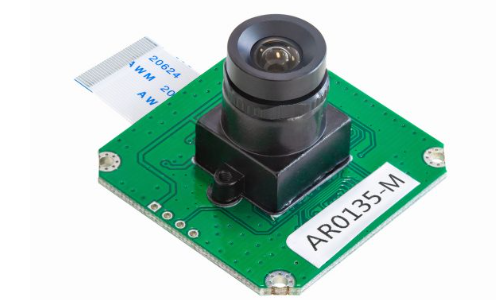

The AR0135 module is a 1/3 inch 1.2MP global shutter Monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.High frame rate, high dynamic range, good sensitivity for machine vision with external trigger.

You Can Buy From Here :- Arducam CMOS AR0135 1/3-Inch 1.2MP Monochrome Camera Module (B0124)
