NVIDIA Jetson Orin™ Nano Super Developer Kit

SKU
DB-NVID-0168
Brand Reward Points
0
₹21,410.00 ₹25,263.80
Pre Order
Topic: Topic
Predicted Ship Time:- Mar 27, 2025

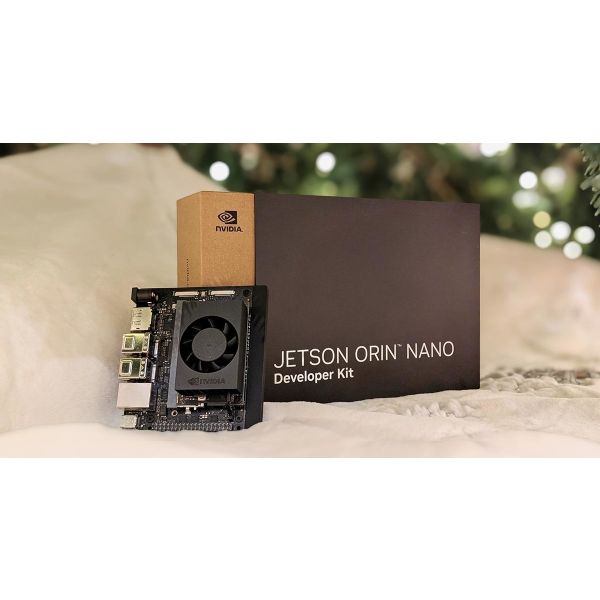

Product Description

The NVIDIA Jetson Orin Nano Super Developer Kit is a compact powerhouse delivering up to 67 TOPS of AI performance—1.7X better than its predecessor. It supports advanced AI models like vision transformers and large language models, making generative AI accessible to developers, students, and makers. Existing users can unlock enhanced performance through a software upgrade.

This kit includes a Jetson Orin Nano 8GB module and a versatile carrier board compatible with all Orin Nano and Orin NX modules, ideal for edge-AI prototyping. Equipped with an Ampere GPU, 6-core ARM CPU, and multiple connectors (including dual camera support), it enables seamless multitasking and high-performance inference.

Powered by NVIDIA AI software, it supports tools like Isaac™ for robotics, Metropolis for vision AI, and Holoscan for sensor processing. Ecosystem partners provide additional software, developer tools, and design services to accelerate your AI journey. Build the future of edge AI with unmatched performance, efficiency, and NVIDIA's robust ecosystem.


Note

Existing Jetson Nano Orin Developer Kit users can experience this performance boost with just a software upgrade, so everyone can now unlock new possibilities with generative AI. Please use this link to download the latest software for the Jetson Orin Nano Super developer kit.



Technical Specifications

 Nvidia Jetson Nano 8GB Module
AI Performance67 TOPS
GPUNVIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory8GB 128-bit LPDDR5
102GB/s
StorageSupports SD card slot and external NVMe
Video Encode1080p30 supported by 1-2 CPU cores
Video Decode1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Power7W–25W



Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.



 Reference Carrier Board
Camera2x MIPI CSI-2 22-pin camera connectors
PCIeM.2 Key M slot with x4 PCIe Gen3
M.2 Key M slot with x2 PCIe Gen3
M.2 Key E slot
USBUSB Type-A connector: 4x USB 3.2 Gen2
USB Type-C connector for UFP
Networking1xGbE connector
Display1x DP 1.2 (+MST) connector
Other I/O40-pin expansion header (UART, SPI, I2S, I2C, GPIO)
12-pin button header
4-pin fan header
DC power jack
Mechanical103mm x 90.5mm x 34.77mm
(Height includes feet, carrier board, module, and thermal solution)










Jetson Orin Nano Super Developer Kit configuration comparison

 NVIDIA Jetson Orin Nano Developer Kit (Original)NVIDIA Jetson Orin Nano Super Developer Kit
GPUNVIDIA Ampere architecture
1,024 CUDA Cores
32 Tensor Cores
635 MHz
NVIDIA Ampere architecture
1,024 CUDA Cores
32 Tensor Cores
1,020 MHz
AI PERF40 INT8 TOPS (Sparse)
20 INT8 TOPS (Dense)
10 FP16 TFLOPs
67 TOPS (Sparse)
33 TOPS (Dense)
17 FP16 TFLOPs
CPU6-core Arm Cortex-A78AE v8.2 64-bit CPU
1.5 GHz
6-core Arm Cortex-A78AE v8.2 64-bit CPU
1.7 GHz
Memory8GB 128-bit LPDDR5
68 GB/s
8GB 128-bit LPDDR5
102 GB/s
Module Power7W | 15W7W | 15W | 25W

More Information
Predicted Available Time Mar 27, 2025
Write Your Own Review
You're reviewing:NVIDIA Jetson Orin™ Nano Super Developer Kit
  1. NVIDIA Jetson Orin 8GB Nano module and carrier board
  2. 19V Power Adapter
  3. Small paper card with quick start and support information
  4. Folded paper stand
