Product Description

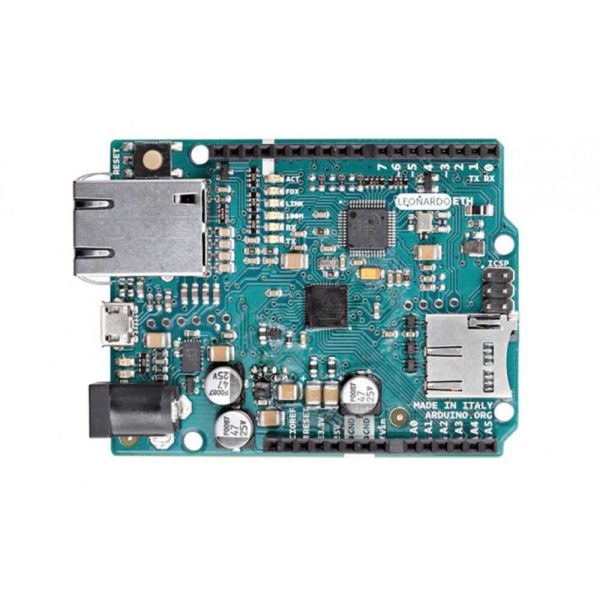

The Leonardo ETH is a microcontroller board based on the ATmega32U4 (datasheet) and the new W5500 TCP/IP Embedded Ethernet Controller (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a RJ45 connection, a micro USB connector, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Leonardo ETH differs from the preceding Ethernet board in that the ATmega32u4 has built-in USB communication, eliminating the need for an external USB-to-serial converter. This allows the Leonardo ETH to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behaviour of the board. Plus, it has the new W5500 TCP/IP Embedded Ethernet Controller onboard.

An optional Power over Ethernet module can be added to the board as well. The Leonardo ETH has the same Wiznet Ethernet interface as the Ethernet Shield 2. An onboard microSD card reader, which can be used to store files for serving over the network, is accessible through the SD Library. Pin 10 is reserved for the Wiznet interface, SS for the SD card is on Pin 4.

  • added SDA and SCL pins: beside the AREF pin, two TWI pins have been added. This will allow to connect the Leonardo ETH to Shields that use the I2C or TWI bus communication for their functioning.
  • the IOREF: it allows the shields to adapt to the IO voltage level provided by the Board. The Shield that uses the IOREF pin will be compatible with both 3V3 and 5V (e.g Due and Uno) IO levels Arduino Boards. Next to the IOREF pin you can find another (currently not in use) pin, that is reserved for future usage.


Technical Specifications

Model Leonardo ETH
Processor 802.3 10/100 Mbit/s
Microcontroller ATmega32u4
Architecture AVR
Operating Voltage 5V
Flash memory 32 KB of which 4 KB used by bootloader
SRAM 2.5Kb
Clock Speed 16 MHz
Analog I/O Pins 12
DC Current per I/O Pins 40 mA on I/O Pins; 1A on 3.3 V Pin only when powered via external power supply
Input Voltage 7-12 V
Digital I/O Pins 36-57 V
Reserved Pins 4 used for SD card select; 10 used for W5500 select
Digital I/O Pins 20
PWM Output 7
Power Consumption 82 mA
PCB Size 53.34 x 68.58 mm
Card Reader Micro SD card, with active voltage translators
Weight 28g
Product Code A000108
Write Your Own Review
You're reviewing:Arduino LEONARDO ETH
  1. 1pcs Arduino Leonardo ETH Board
