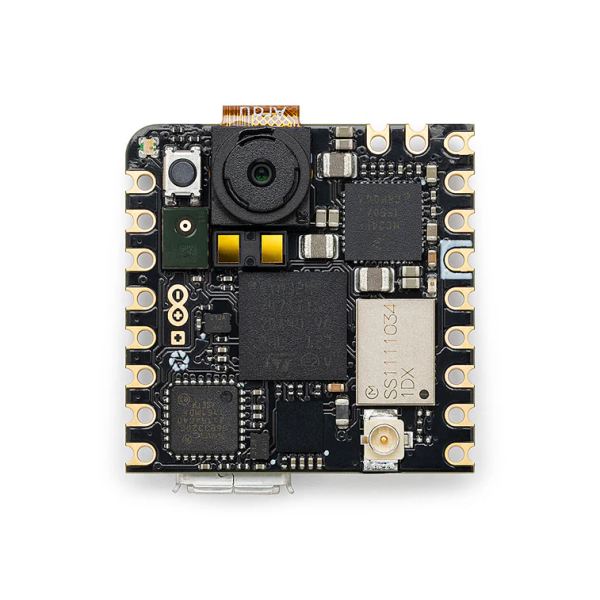

The Arduino® Nicla Vision is a ready-to-use, standalone camera for analyzing and processing images on the edge. Thanks to its 2 MP color camera, smart 6-axis motion sensor, integrated microphone and distance sensor, it is suitable for asset tracking, object recognition and predictive maintenance. Quickly implement sensor nodes to send collected data to the Arduino® Cloud (or third-party vendor services) via integrated Wi-Fi®/Bluetooth® LE connectivity.
| Board | ||
|---|---|---|
| Name | Arduino® Nicla Vision | |
| SKU | ABX00051 | |
| Microcontroller | ||
| STM32H757AII6 Dual Arm® Cortex® M7/M4 | ||
| USB connector | ||
| Micro USB (USB-B) | ||
| Pins | ||
| LED built-in | 1 RGB LED (I2C) | |
| Digital I/O Pins | 10 (of which 2 are shared with I2C and 4 are shared with SPI) | |
| Analog input pins | 2, both shared with PWM | |
| PWM pins | 12 (of which 2 are shared with analog, 2 are shared with I2C and 4 are shared with SPI) | |
| External interrupts | 12 | |
| Connectivity | ||
| Bluetooth | Bluetooth® 4.2 (Murata 1DX module) | |
| Wi-Fi® | 11b/g/n (Murata 1DX module) | |
| Secure element | NXP® SE050C2 Crypto chip | |
| Communication | ||
| UART | Yes | |
| I2C | 1 | |
| SPI | 1 | |
| Power | ||
| Microcontroller operating voltage | 1.8V translated to 3.3V on external pins | |
| Board Power Supply (USB/VIN) | 5V | |
| Supported battery | Li-ion/Li-Po Single Cell, 3.7V | |
| Battery connector | JST 3-pin 1.2mm pitch | |
| DC Current per I/O pin | 4.7mA | |
| Clock speed | ||
| Processor (M7) | 480MHz | |
| Processor (M4) | 240MHz | |
| Memory | ||
| ST STM32H757AII6 | 2MB Flash, 1MB RAM | |
| QSPI flash | 16MB | |
| Dimensions | ||
| Weight | 2g | |
| Width | 22.86mm (900mils) | |
| Length | 22.86mm (900mils) | |
| PCB Thickness | 1mm (39.3701mils) | |
