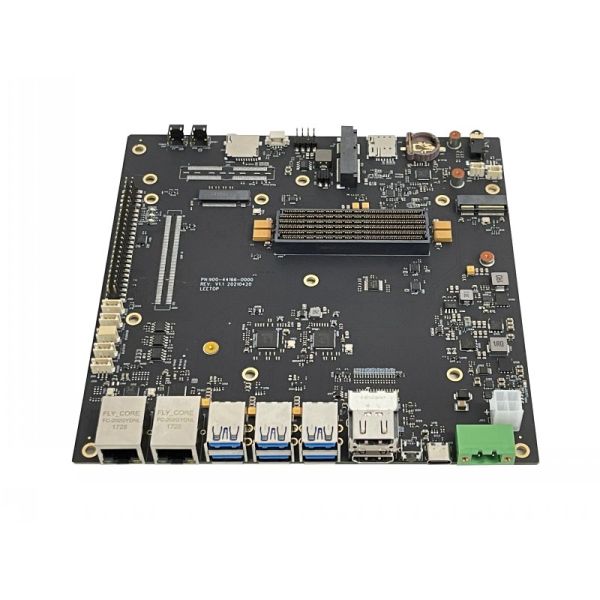

A502 is a high performance, rich interface NVIDIA® Jetson carrier board. A502_ S carrier board provides 2 hdmi2.0, 2 Gigabit Ethernet interfaces, 4 USB3.0, 1 USB 2.0 (w / OTG function), m.2kye e (2240 size), WiFi module interface, can bus, I2C and other rich peripheral interfaces.
Technical Specifications
LeeTop
A502 Carrier Board
Display
2x HDMI
Ethernet
2x Gigabit Ethernet (10/100/1000)
USB
6x USB 3.0 Type A (Integrated USB 2.0)
M.2 KEY M
1x USB 2.0 Type C (Support OTG)
M.2 KEY E
1x M.2 KEY M Interface
Camera
1x M.2 KEY E Interface
TF_CARD
6 X Camera (CSI 2 Lane)
USB 4G MODE
1x TF_CARD
AU DIO
1x Audio Jack, 2x Microphone,2x Speaker(1W)
SPI Bus
1X SPI Bus(+3.3V Level)
FAN
2 X Fan(12V/5V),1 X FAN(5V PWM)
CAN
1x CAN
Misc
1x System Control 1x POWER Control 2x 12C Link (+3.3V I/O) 1x UART(+3.3V Level) 1X SPI Bus(+3.3V Level 2x GPIO(+3.3V Level 1x LED STATE
