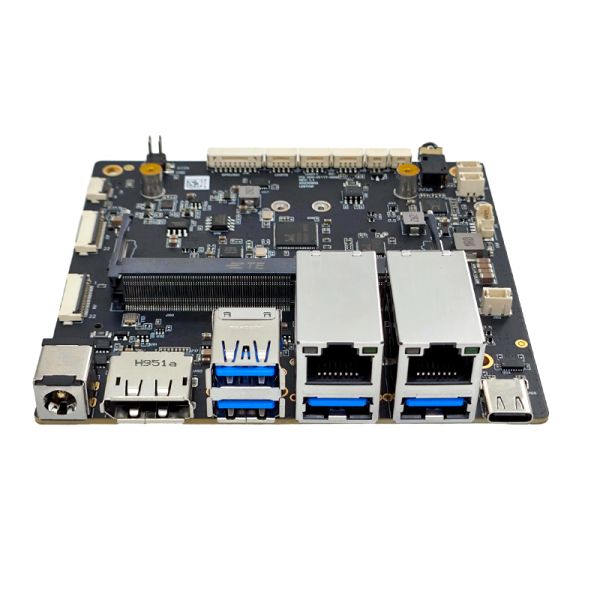

LeeTop A603 Carrier Board For Nvidia Jetson Orin NX / Orin Nano

LeeTop A603 Carrier Board For Nvidia Jetson Orin NX / Orin Nano

Leetop A608 Carrier Board For Nvidia Jetson Orin Nano / Orin NX Module

SKU
TEMP-ACC-0712
Brand Reward Points
0
₹20,999.00 ₹24,778.82
In Stock
Categories: Product Development Board Brand NVIDIA Development Boards NVIDIA Carrier Boards for Nvidia Jetson Modules Carrier Board for the Nvidia Jetson Leetop LeeTop
Topic: Topic
Add to Wish List

Product Description

Leetop_A608  is a high-performance carrier board developed based on the NVIDIA Orin NANO/Orin NX core  module. Leetop_ A608 carrier board has rich interfaces and can provide up to 20/40/70/100TOPS computing power for numerous terminal devices. In addition, Leetop_A608  provides rich peripheral interfaces. Comply with industrial standards such as earthquake resistance and anti-static.



Technical Specifications

FeatureJetson Orin NX 8GBJetson Orin NX 16GB
AI Performance70 TOPS100 TOPS
GPU1024-core NVIDIA Ampere GPU with 32 Tensor Cores1024-core NVIDIA Ampere GPU with 32 Tensor Cores
CPU6-core Arm Cortex-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L38-core Arm Cortex-A78AE v8.2 64-bit, 2MB L2 + 4MB L3
Video Encode1× 4K60, 3× 4K30, 6× 1080p60, 12× 1080p30 (H.265)1× 4K60, 2× 4K30, 5× 1080p60, 11× 1080p30 (H.264)
Video Decode1× 8K30, 2× 4K60, 4× 4K30, 9× 1080p60, 18× 1080p30 (H.265)1× 4K60, 2× 4K30, 5× 1080p60, 11× 1080p30 (H.264)
Memory8GB 128-bit LPDDR5, 102.4GB/s16GB 128-bit LPDDR5, 102.4GB/s
StorageSupports external NVMeSupports external NVMe
Module CompatibilityOrin Nano / Orin NXOrin Nano / Orin NX
Display1× DP1× DP
Ethernet2× Gigabit Ethernet2× Gigabit Ethernet
USB4× USB 3.2 Type-A + 1× USB-C (USB 2.0 + 3.2)4× USB 3.2 Type-A + 1× USB-C (USB 2.0 + 3.2)
M.2 SlotsKey M (SSD), Key E (WiFi), Key B (4G/5G)Key M (SSD), Key E (WiFi), Key B (4G/5G)
Camera2× CSI Camera2× CSI Camera
Fan1× 5V PWM1× 5V PWM
RTC1× 3.0V RTC1× 3.0V RTC
CAN1× CAN FD1× CAN FD
Audio3.5mm Jack, 2× MIC, 2× Speaker, Speaker Feedback3.5mm Jack, 2× MIC, 2× Speaker, Speaker Feedback
Function Connectors2× I2C, 1× SPI, 7× IO, 2× UART, Power, Reset, Debug, Recovery2× I2C, 1× SPI, 7× IO, 2× UART, Power, Reset, Debug, Recovery
DC Power Input9V–20V (Max 60W)9V–20V (Max 60W)
Load Capacity>60W>60W
Dimensions101.5 × 95 mm101.5 × 95 mm
Operating Temperature−25°C to 65°C−25°C to 65°C
Storage Temperature / Humidity−25°C to 65°C, 10%–90% non-condensing−25°C to 65°C, 10%–90% non-condensing
Weight0.10075 kg0.10075 kg
