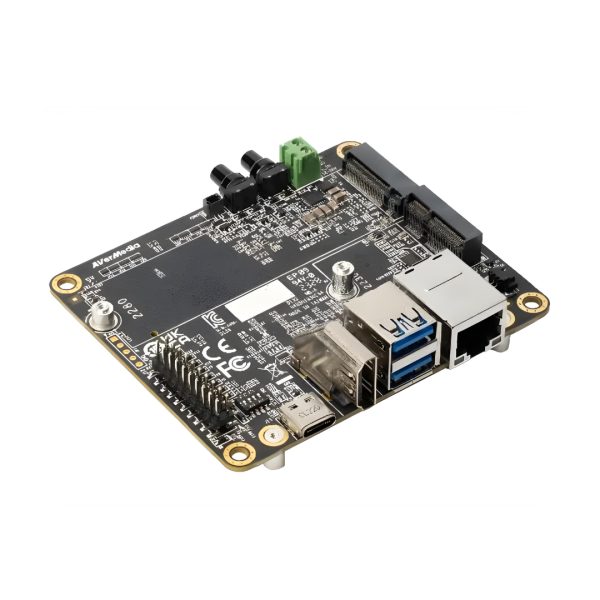

AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities
D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK
Technical Specifications
Model/Type
D133 carrier board
NVIDIA GPU SoC Module Compatibility
NVIDIA® Jetson Orin NX/ Orin Nano module
Networking
1 x GbE RJ-45 1 x M.2. key E 2230 for wifi
Display Output
1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano
Temperature
Operating temperature -40°C~85°C (TBD) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)
2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
USB
1 x USB 2.0 type C for recovery 2 x USB 3.2 Type-A
Storage
1x M.2. key M 2280 for NVMe
Expansion Header
20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power
3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.
Power Cord
US/JP/EU/UK/TW/AU/CN (optional)
Thermal solution
Fan solution (optional)
Buttons
Power and Recovery
RTC Battery
Support RTC battery and Battery Life Monitoring by MCU
