Waveshare Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections ( SKU : 23929 )

SKU

TEMP-ACC-0500

Brand Reward Points

₹1,689.00 ₹1,993.02

Back Order

Categories: Product Brand Components Waveshare Other Accessories

Topic: Topic

Details

Product Description

Industrial USB 3.2 HUB, Switchable dual hosts Sharing USB devices for two hosts, free up the crowded desktop

Features at a glance

4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices

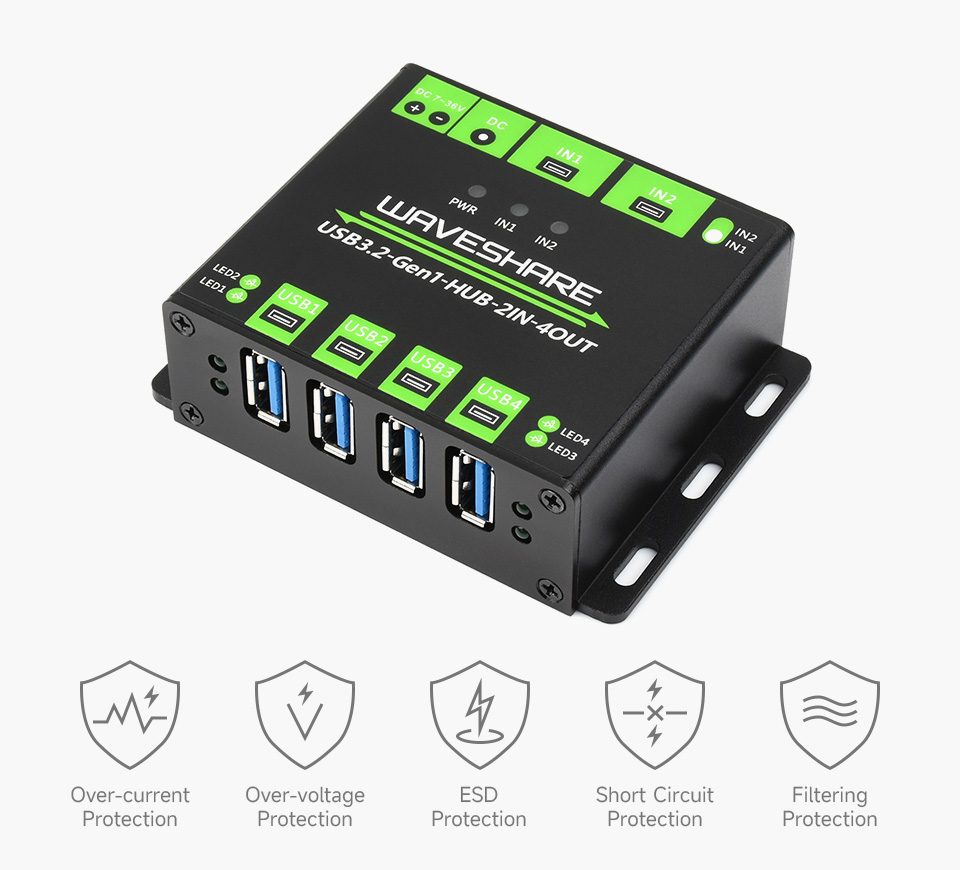

Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.

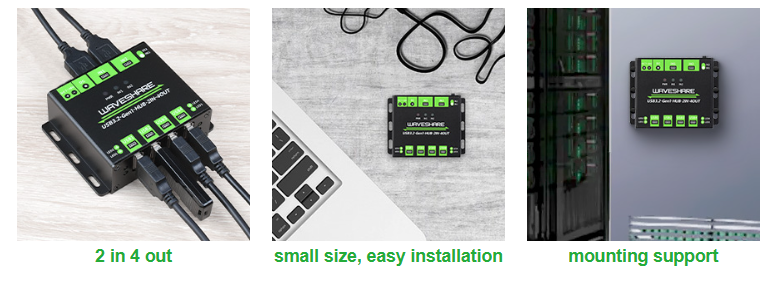

Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Technical Specifications

Standard	high speed USB 3.2 Gen 1
Data rate	up to 5Gbps
USB output	5V@Imax:1.2A, USB-A connector
USB HUB input	5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
External power	DC power supply terminal 7~36V (Additional power supply is required for this HUB when connecting to high power devices)
Operating environment	-10℃ ~ 85℃
OS support	Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

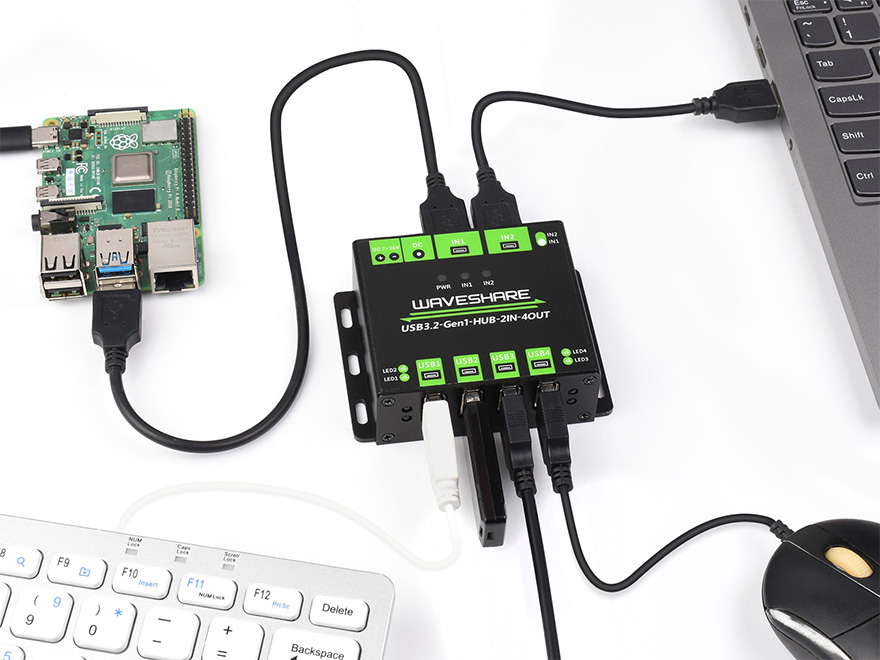

Sharing USB Devices for two hosts

Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
