Slamtec LPX-T1 - 40M Indoor And Outdoor Long-Range Laser Scanning Ranging Lidar

SKU
TEMP-ACC-0464
Brand Reward Points
0
₹47,599.00 ₹56,166.82
In Stock
Categories: Product Brand Sensor SLAMTEC
Topic: Topic

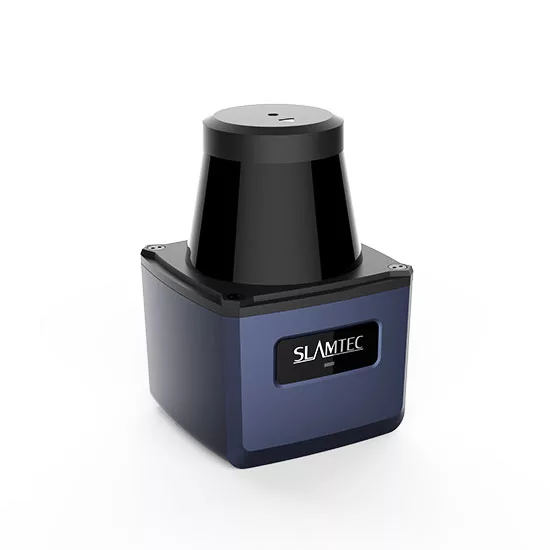

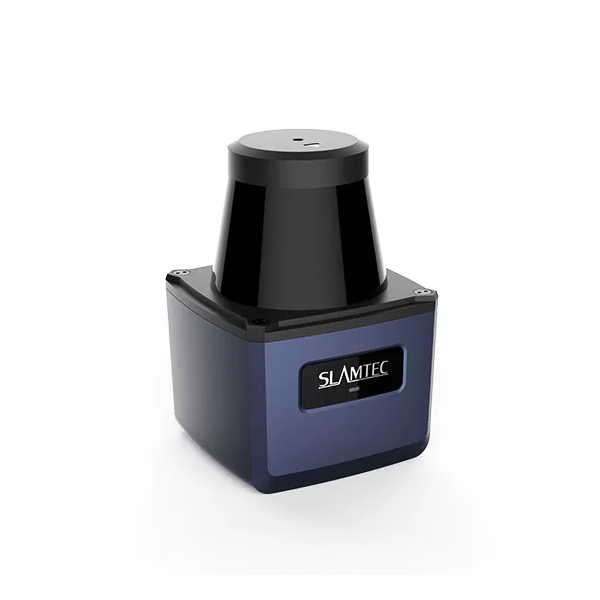

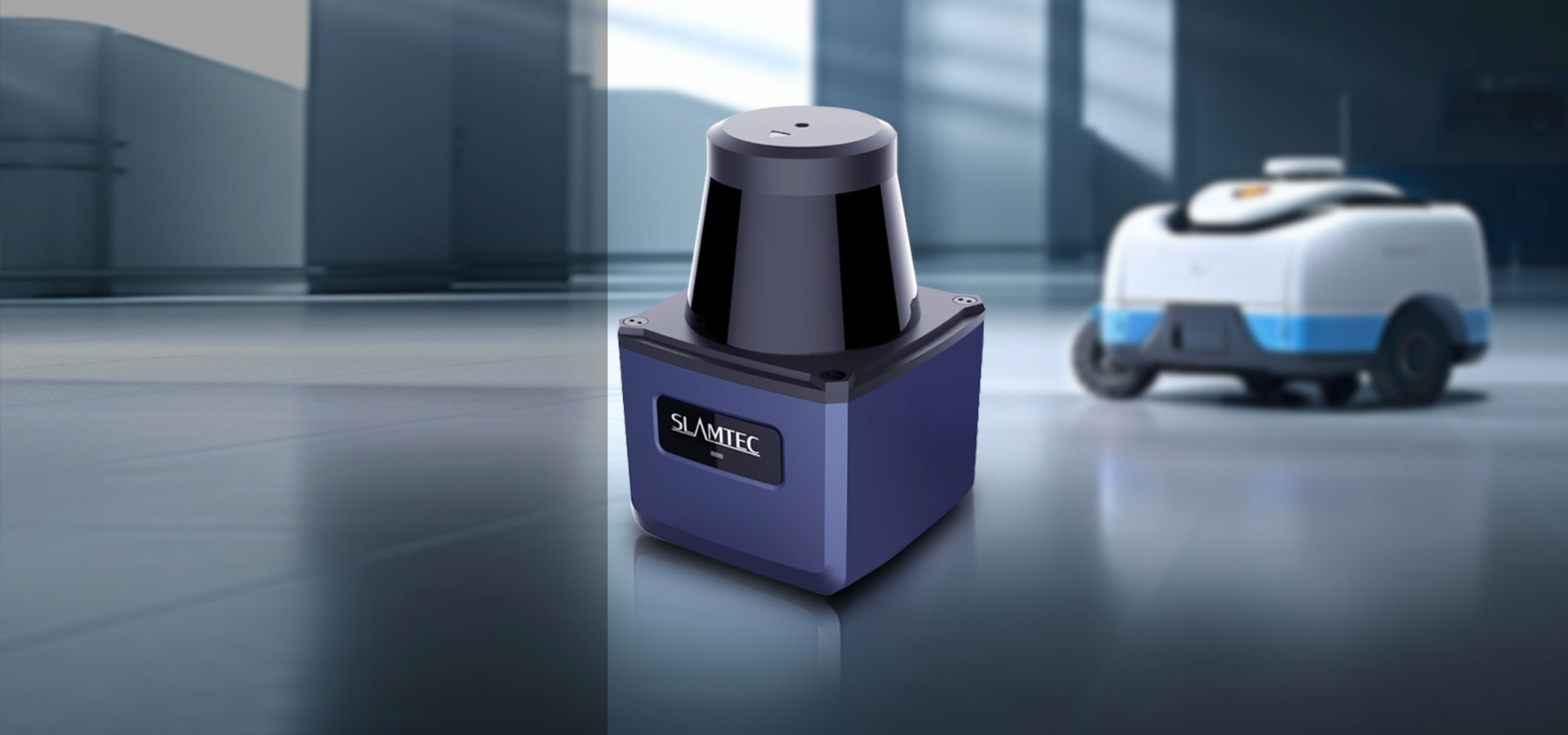

LPX-T1 is the first-generation high-performance laser LiDAR developed by SLAMTEC. With a range of 40 meters and a sampling frequency of up to 60,000 times per second, it offers excellent resistance to environmental light up to 80,000 lux. With a scanning angle of 270 degrees, it generates real-time point cloud maps, providing precise environmental perception and navigation capabilities. Specifically designed for AGV scenarios, it is suitable for applications in service robots, lightweight autonomous driving, and more. LPX-T1 is the ideal choice for solving robot localization and map-building.



Product Description

LPX-T1 is the first-generation high-performance laser LiDAR developed by SLAMTEC. With a range of 40 meters and a sampling frequency of up to 60,000 times per second, it offers excellent resistance to environmental light up to 80,000 lux. With a scanning angle of 270 degrees, it generates real-time point cloud maps, providing precise environmental perception and navigation capabilities. Specifically designed for AGV scenarios, it is suitable for applications in service robots, lightweight autonomous driving, and more. LPX-T1 is the ideal choice for solving robot localization and map-building.

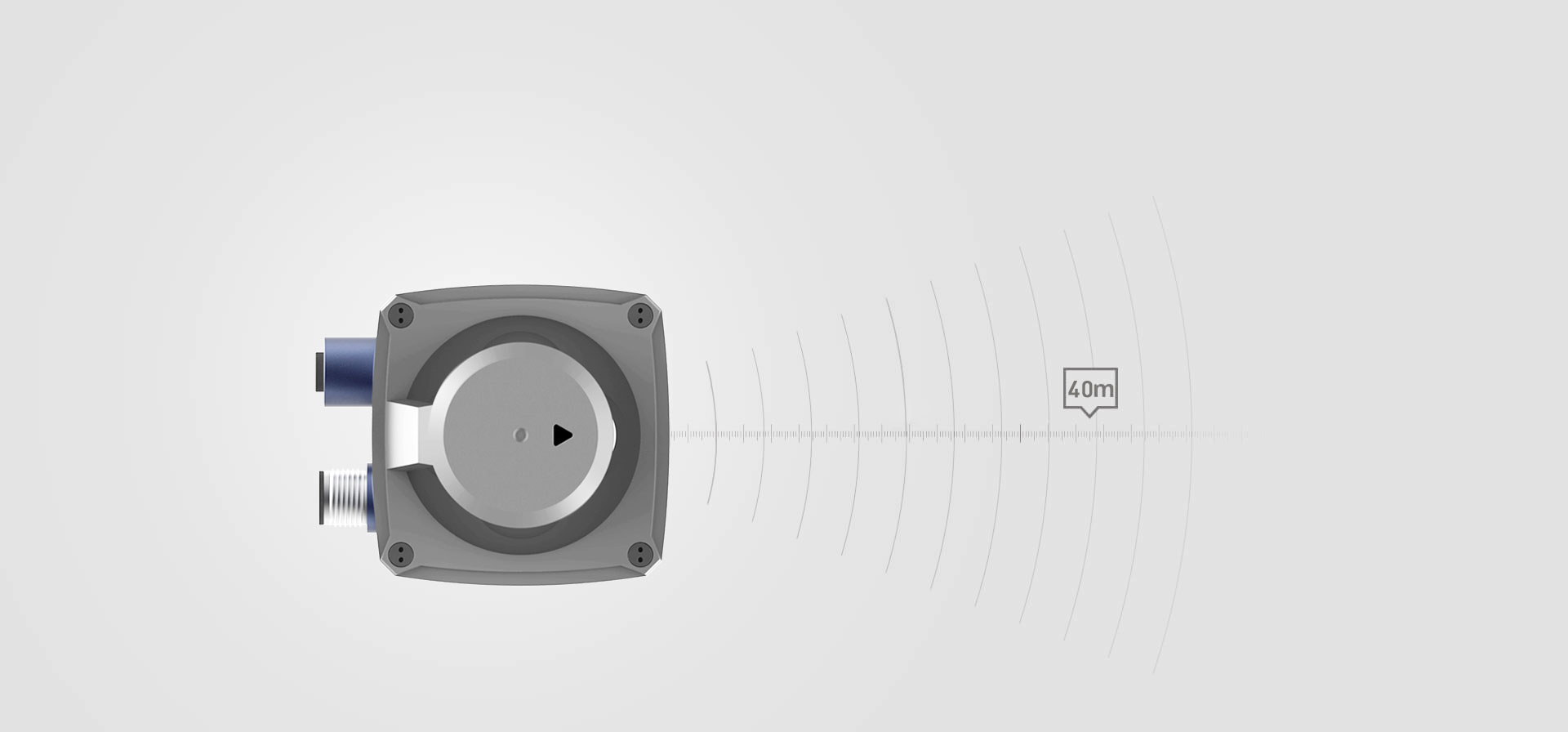

40 Meters Medium and Long Distance Detection Capability

The LPX-T1 is capable of reliable detection within a range of 40 meters, enabling identification and tracking of long-distance targets. It provides robots with a wider sensing range and longer reaction time, enhancing the safety and adaptability of the system. It is suitable for various scenarios such as warehouses, factories, distribution stations, hotels, restaurants, shopping malls, and office buildings.

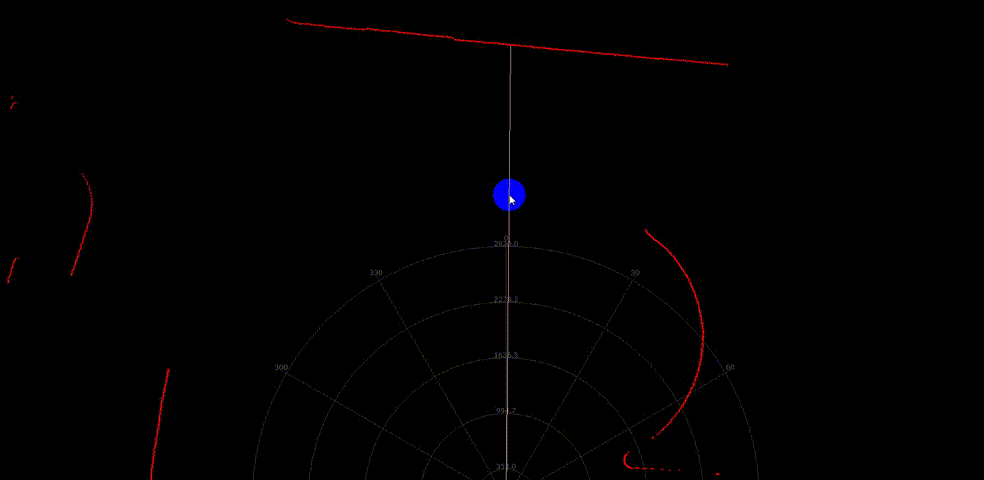

60,000 times/second High-speed Sampling Capability

LPX-T1 has improved the internal optical design and algorithm system, and has a laser ranging sampling capability of up to 60,000 times per second to meet the needs of high-speed movement. It can update environmental data in real time, provide support for rapid decision-making and adjustment, and keep the robot stable and accurate in the case of fast movement.

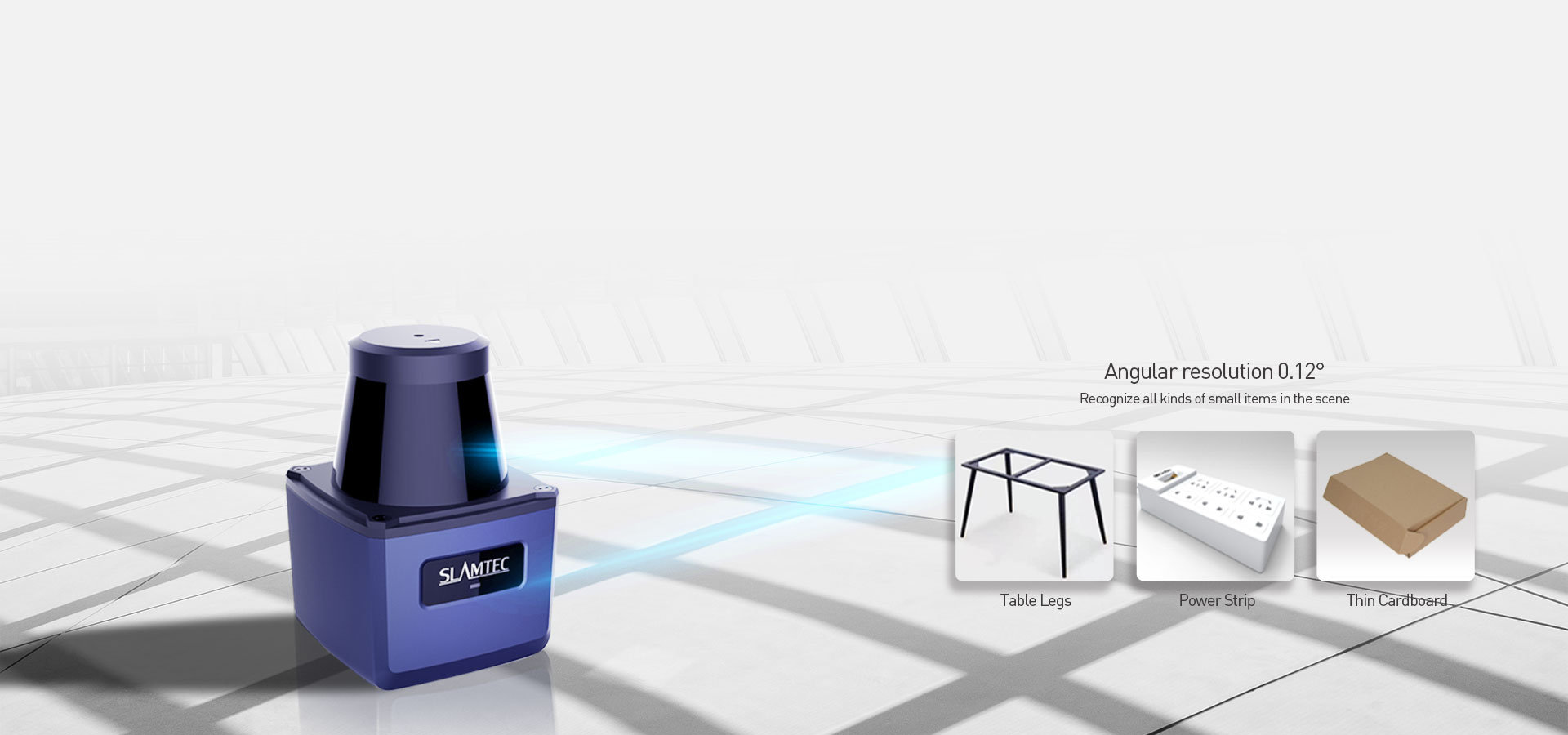

Super fine object detection ability

Small object detection is one of the crucial functions in AGV scenarios. LPX-T1 has an angular resolution of up to 0.12°, which can accurately capture and identify subtle object details, ensuring accurate detection of small-sized targets. Whether it is an obstacle in a warehouse, an obstacle in a narrow passage, or a small object in a complex environment, the LPX-T1 can achieve efficient detection and identification with excellent accuracy, providing AGV with reliable navigation and obstacle avoidance capabilities.

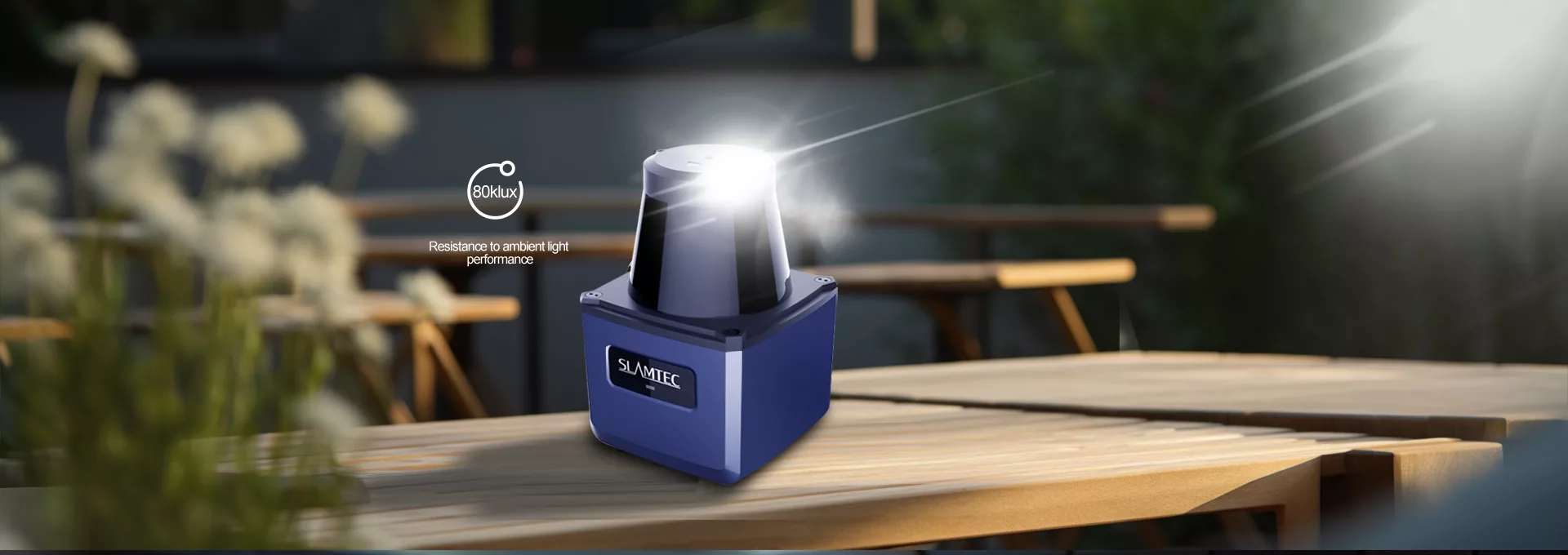

80,000Lux Anti-interference Ability of Ambient Light

With advanced anti-interference technology, LPX-T1 can effectively deal with the interference of ambient light and sunlight. Whether it is a complex indoor environment or a scene with strong outdoor light, it can operate stably and provide reliable environmental awareness.

Support Various Development Platforms

In order to improve user development efficiency, SLAMTEC has developed the development software RobotStudio. RobotStudio provides users with professional LiDAR debugging tools. At the same time, SLAMTEC also provides users with SDK development kits that can run on x86 windows, x86 Linux, arm Linux and other platforms to match Various development applications.



CLASS 1 Laser Safety Standard

Using a modulated pulse type low-power infrared laser emitting light source, RPlidar A1 meets the Class 1 laser safety standard and is safe for human eye.



Wide range of applications

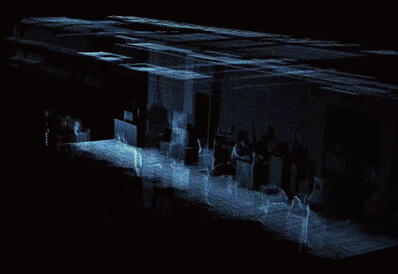

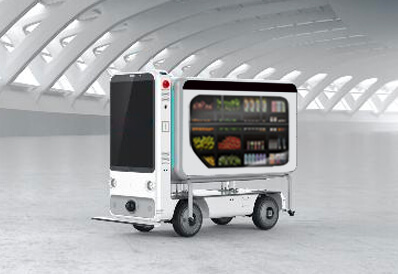

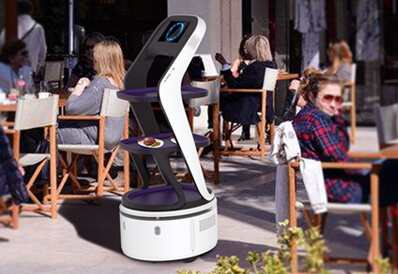

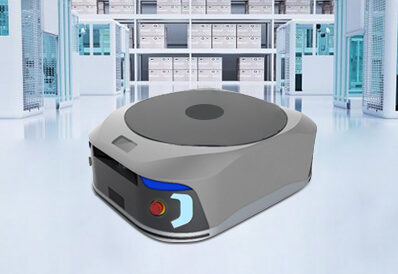

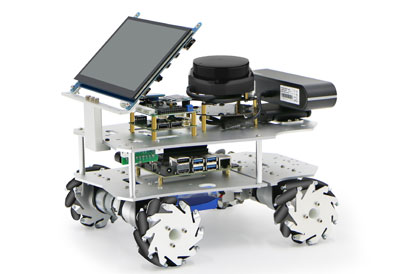

The features and performance of the LPX-T1 make it suitable for a variety of flexible and diverse application scenarios. It can be widely used in industrial vehicles (AGV), service robots, lightweight autonomous driving (unmanned vehicles in parks) and other fields. Whether it is warehousing logistics, smart manufacturing or autonomous driving systems, LPX-T1 can provide accurate and reliable environment perception and navigation support for different applications.

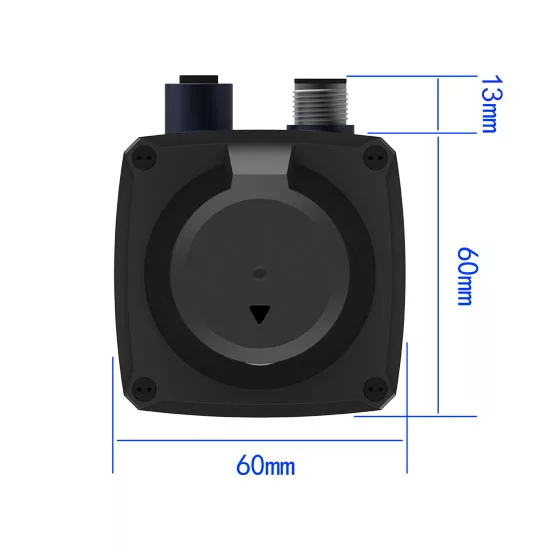

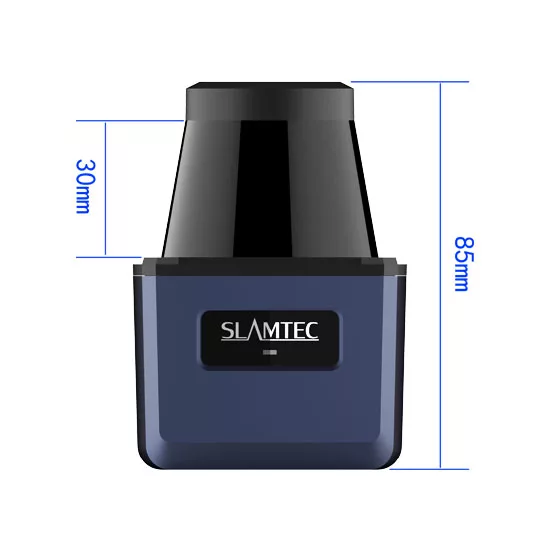

Dimensions

Height: 85mm   Width: 60mm   Weight: 264g
