RPLiDAR S3 - 360 Degree Smaller Size TOF Laser Range Scanner (40m)

SKU
TEMP-ACC-019
Brand Reward Points
0
was ₹39,174.82 Special Price ₹29,879.00 ₹35,257.22
In Stock
Categories: Product Brand SLAMTEC Robots
Topic: Topic

Product Description

RPLIDAR S3 developed by SLAMTEC is a new generation of lightweight, high-performance, small-sized LIDAR launched by SLAMTEC in 2023, which can break through the limitations of physical space and be used in a wide range of scenarios. It is able to break through the limitations of physical space and is widely used in a variety of scenarios.RPLIDAR S3 has excellent stability and reliability, even at long distances, black and white objects, or anti-interference ability of ambient light, it can still show excellent distance measurement and map building effect.

Highlights

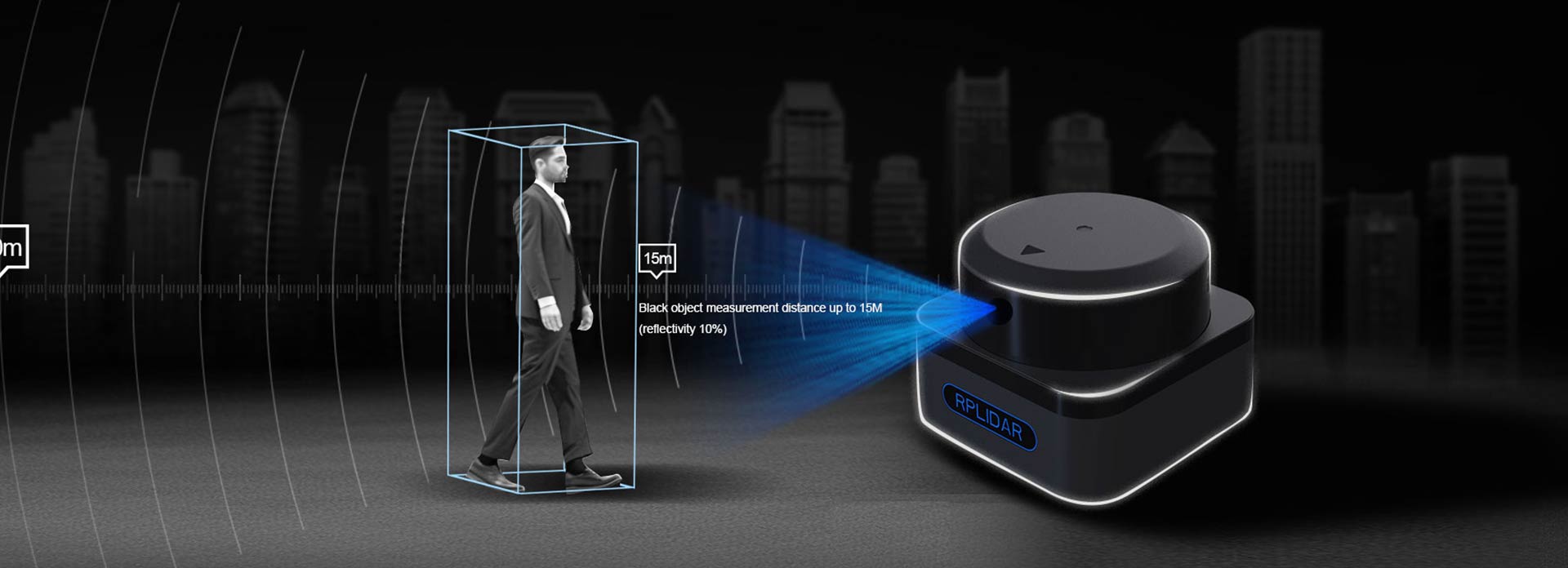

Low reflectivity at 15 meters measurement radius


RPLIDAR S3 performs equally well in measuring distances when facing low-reflectivity objects such as black color doors and anti-reflective coating objects. It can measure up to a distance of 15 meters with a 10% reflectivity.

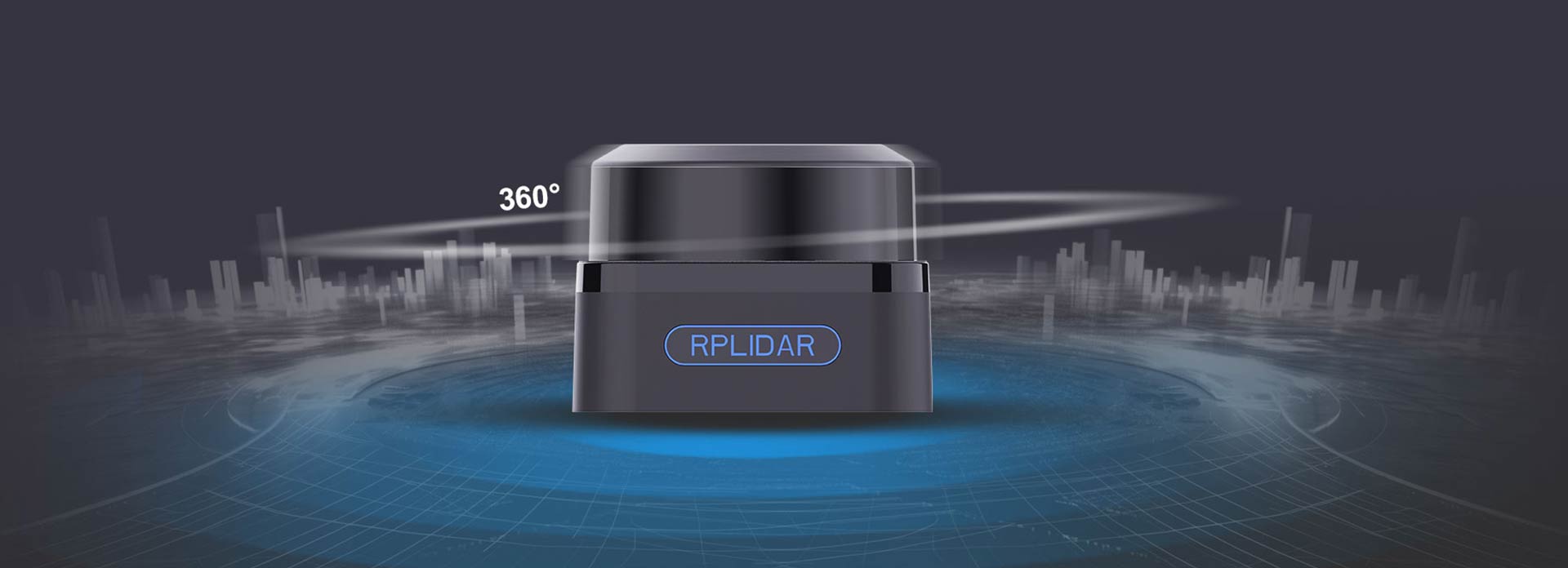

360° wide range coverage capability

RPLIDAR S3 rotates the ranging core clockwise with the motor drive to achieve a 360° scan of the surroundingsective coating objects. It can measure up to a distance of 15 meters with a 10% reflectivity.

32,000 high-speed sampling capability

RPLIDAR S3 demonstrates exceptional capabilities in real-time perception, precise positioning, and target detection. Its high-speed sampling frequency allows it to capture a greater amount of point cloud data, enabling faster and more accurate mapping.



Superior Fine Object Detection


With an angular resolution of up to 0.1125°, the RPLIDAR S3 is capable of capturing and recognizing fine object details with a high degree of accuracy, thus ensuring the accurate detection of small-sized targets.

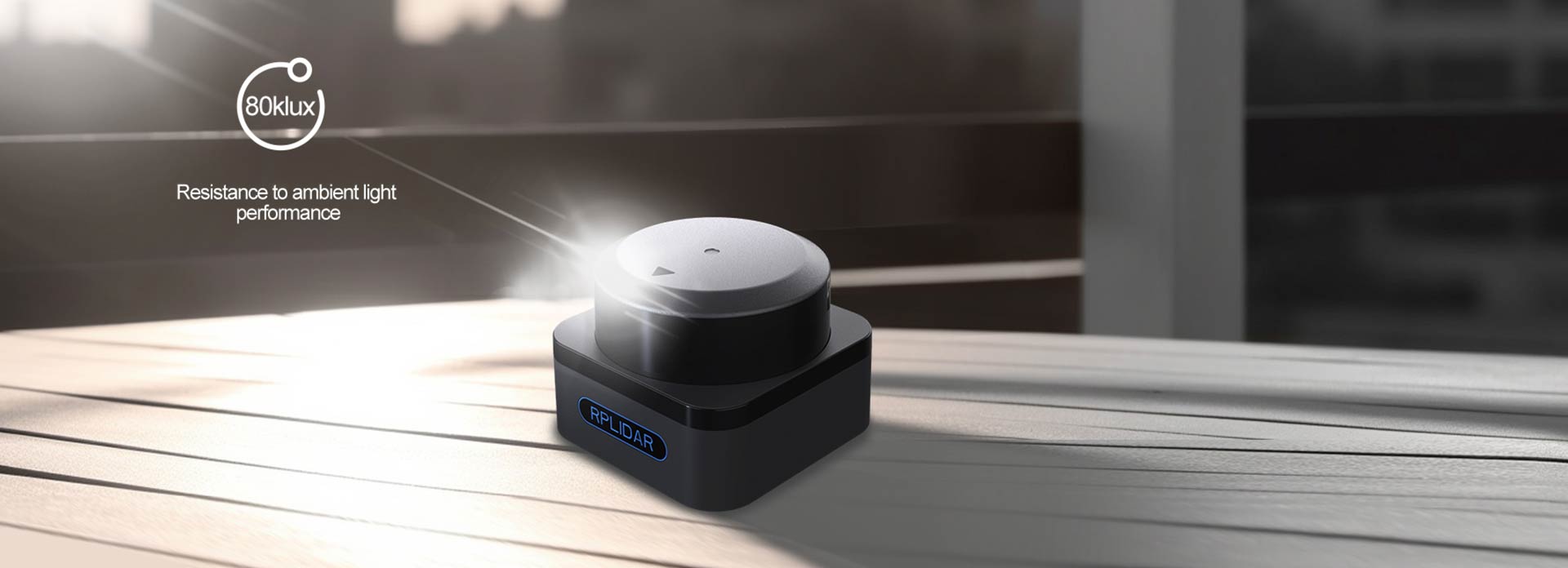

80,000Lux Anti-interference Ability of Ambient Light


Thanks to hardware optimization, the RPLIDAR S3 effectively reduced light interference and provides accurate laser ranging data, regardless of challenging conditions such as indoor strong lighting or direct sunlight outdoors.

Support Various Development Platforms


SLAMTEC provides users with SDK development kits that can run on x86 Windows, x86 Linux, arm Linux, and other platforms to match various development applications.

CLASS 1 Laser Safety Standard


RPLIDAR S3 adopts the low power infrared laser light as its light source, and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which can ensure its safety to human eyes.



Dimensions

Height : 41.3mm    Width : 55.6mm   Length : 59.8mm   Weight : 115g



Technical Specifications

ModelRPLiDAR S3 - 360 Degree Smaller Size TOF Laser Range Scanner (40m)
Application ScenariosIdeal for both outdoor and indoor environments with reliable resistance to
daylight(≥80Klux)
Distance Range1 White object: 0.05-40 meters (under 70% reflection)
Black object: 0.05-15 meters (under 10% reflection)
0.05 - 5 meters (under 2% reflection)
Scan Field Flatness0°-1.5° (other angle requirements can be customized)
Sample Rate2 32KHz
Scanning
Frequency3
Typ. 10Hz, 10~20Hz
Angular ResolutionTyp. 0.1125°, 0.1125°~0.225°
Communication
Interface
TTL UART
Communication
Speed
1M
Accuracy±30mm
Resolution
10mm
