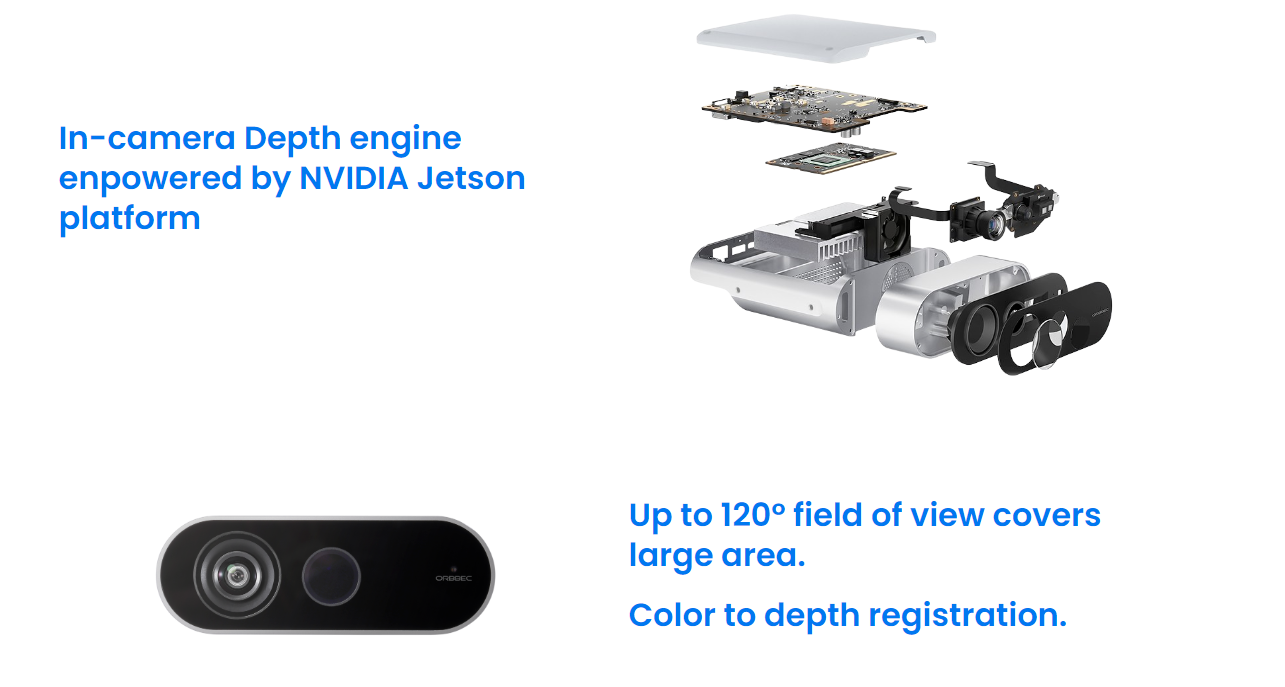

Femto Mega is a programmable multi-mode Depth and RGB camera with real-time streaming of processed images over Ethernet or USB connections. The camera uses Microsoft's industry proven Tof technology and the NVIDIA Jetson™™™ platform to deliver a comprehensive Depth and RGB vision platform for computer vision and Al developers. With a wide field of view (FOV) and high resolution depth sensor, it's ideal for robotics, manufacturing, logistics and healthtech applications. The Orbbec SDK makes it easy to setup and deliver extremely accurate and reliable data.
Head over to the Quick-Start Development Library for a swift transition from Azure Kinect DK to Femto Mega. Follow the tutorials, Azure Kinect Sensor SDK APIs, and Azure Kinect Body Tracking demos to streamline the adoption of Femto Mega.
Widest Field of View at up to 120° Horizontal and 120° Vertical
Up to 15 fps at 1024X1024 or 30 fps at 640X576 depth resolution
Up to 25 fps at 3840X2160 RGB resolution

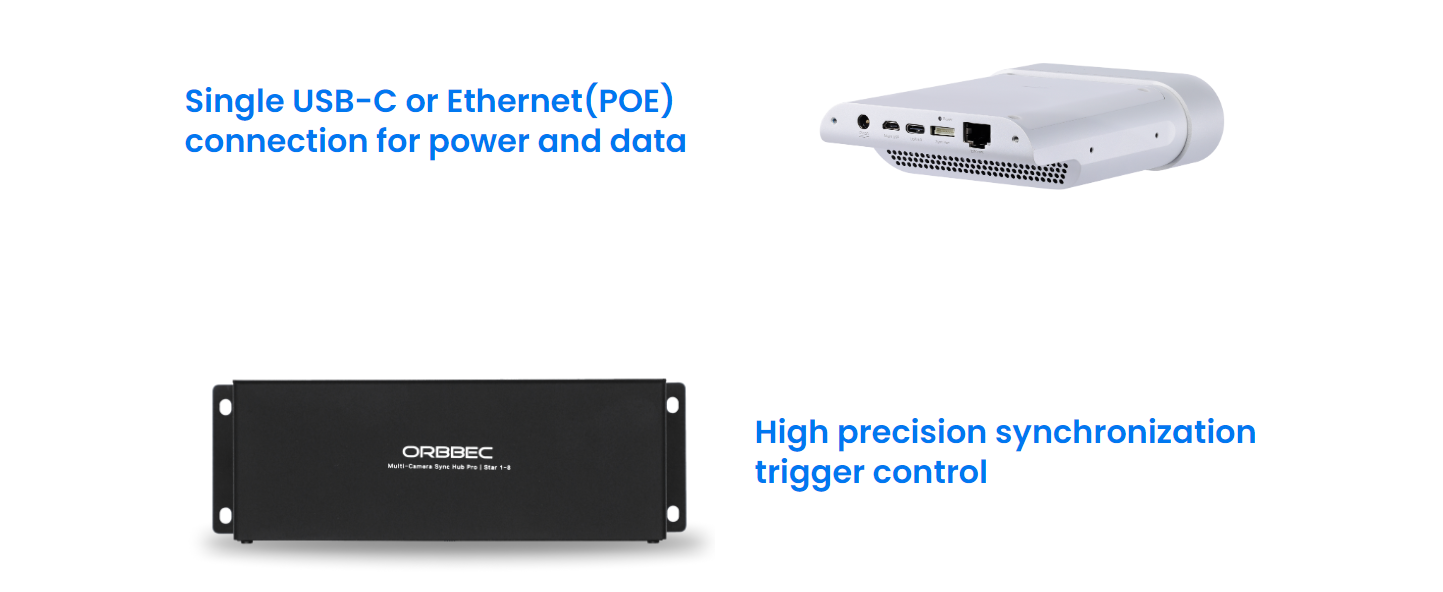

POE USB 3.0 and IMU supported
Advanced and accurate sync trigger for multi-sensor network
Femto Mega Specifications
Camera Specifications
Depth Technology
Time of Flight
Wavelength
850nm
Depth Range
*0.25 - 5.46m (depending on depth mode)
Depth Resolution/FPS
Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)
