Product Description

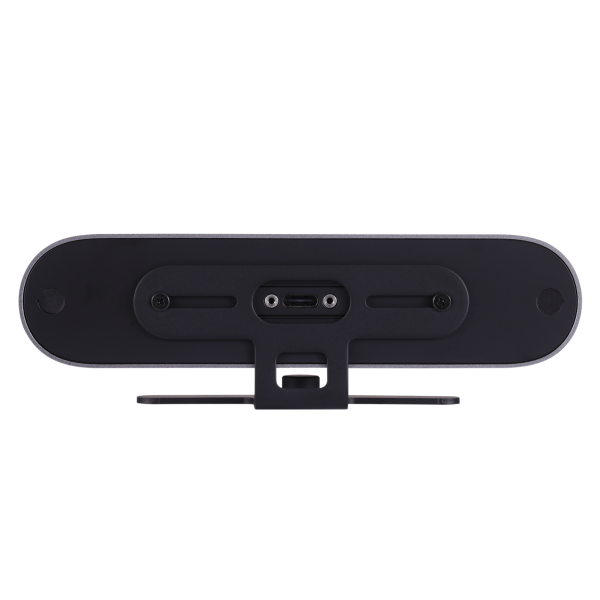

ORBBEC Astra 2 - Structured Light Camera

The upgraded Astra 2 3D camera, released in 2023, is the successor to the widely used Astra series products. The camera is based on structured light technology and has been upgraded with the latest Orbbec's custom ASIC for high quality depth processing, IMU and multi-camera sync. The Orbbec SDK makes it easy to setup and deliver extremely accurate and reliable data for in-door operation.

  • High quality depth data output from 0.6m to 8m
  • Up to 30 fps at 1600X1200 depth resolution
  • Up to 30 fps at 1920X1080 RGB resolution
  • Multi-camera synchronization supported

ORBBEC Astra 2 - Structured Light Camera Specifications

Camera Specifications
Depth TechnologyStructured Light
Wavelength850nm
Depth Range*0.6-8m
Depth Resolution/FPSUp to 1600X1200@30fps
Depth FOVH58.2° V45.2°
RGB Resolution/FPSUp to 1920X1080@30fps
RGB FOVH74.7° V46.2°
ProcessingOrbbec ASIC
IMUSupported
Physical Parameters
Data ConnectionUSB 3.0 Type-C
Power InputUSB 3.0 Type-C
TriggerSupported
Power ConsumptionAverage < 3.0W
Operating Environment0°C -35°C; Indoor; 10%-95%RH (non-condensing)
SDK SupportOrbbec SDK
Data OutputPoint Cloud, Depth Map ,IR & RGB
Dimensions (W*H*D)144.5 x 45.3 x 38.6 mm
Weight241g
InstallationBottom: %-20UNC
Write Your Own Review
You're reviewing:ORBBEC Astra2 - Structured Light Camera
  1. ORBBEC Astra2 - Structured Light Camera X1
  2. USB -C to USB - A Cable X1
