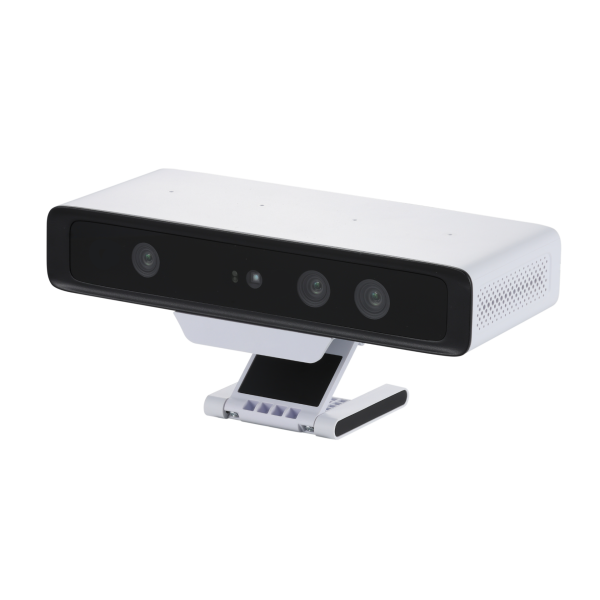

Persee 2 is based on active stereo technology and uses Orbbec's custom ASIC for high quality depth processing. In addition to a high-performance camera with built-in depth processing, it also has an embedded Amlogic A311D processor with high performance GPU and NPU to run user applications. Android/Linux support and a choice of multiple port selections including ethernet, USB, HDMI, headphone jack and MicroSD, makes Persee 2 the ideal all-in-one solution for low-cost and compact design.
Persee 2 is easy to set up with Orbbec SDK running on the embedded board, and delivers highly accurate and reliable data for indoor operation.
Amlogic A311D high performance hexa-core processor
High quality depth data output from 0.2-10m
Up to 30 fps at 1280X800 depth resolution
IMU supported
Support both Android/Linux on board operating systems
ORBBEC Persee2 - Camera Computer Specifications
Camera Specifications
Model
4GB RAM + 32GB Storage
Depth Technology
Active Stereo IR
Wavelength
850nm
Depth Range
0.2-10m
Depth Resolution/FPS
Up to 1280X800@30fps
Depth FOV
H91° V66°
RGB Resolution/FPS
Up to 1280X800@30fps
RGB FOV
H93° V68°
Processing
Amlogic A311D Quad Core A73+ Dual Core A53 with NPU Orbbec ASIC for Depth Processing
Physical Parameters
RAM/Storage
4GB/32GB
WiFi/BT
802.11a/b/g/n/ac, Bluetooth 5.0
Power Input
DC 12V/2A
Ports
USB 2.0 Type-A, USB 2.0 Type-C (Debug and Firmware Update), Gigabit Ethernet, HDMI 2.0, 3.5mm Audio Output, MicroSD Expansion Slot
