Product Description

ORBBEC Femto Bolt - TOF Camera

Femto Bolt is a compact, high-performance device with multi-mode Depth and RGB cameras and USB-C connection for power and data. The depth camera uses Microsoft's industry proven Tof technology and has identical operating modes and performance as the Microsoft Azure Kinect and Orbbec Femto Mega. Its versatility and price makes it attractive for Al-developers for 3D vision applications.
Head over to the Quick-Start Development Library for a swift transition from Azure Kinect DK to Femto Bolt. Follow the tutorials, Azure Kinect Sensor SDK APIs, and Azure Kinect Body Tracking demos to streamline the adoption of Femto Bolt.

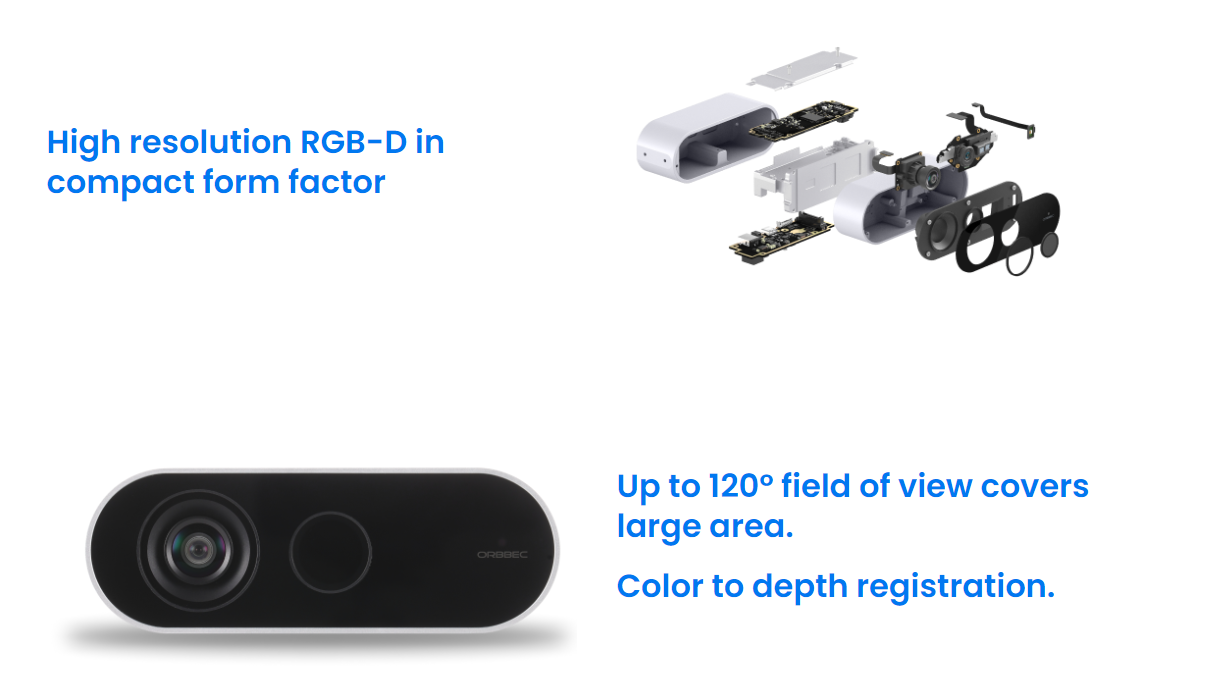

  • Depth camera with 1 Mega Pixel Tof sensor and 120° FOV
  • Up to 15fps at 1024x1024 or 30fps at 640x576 depth resolution
  • 4K RGB with HDR
  • 6DOF IMU

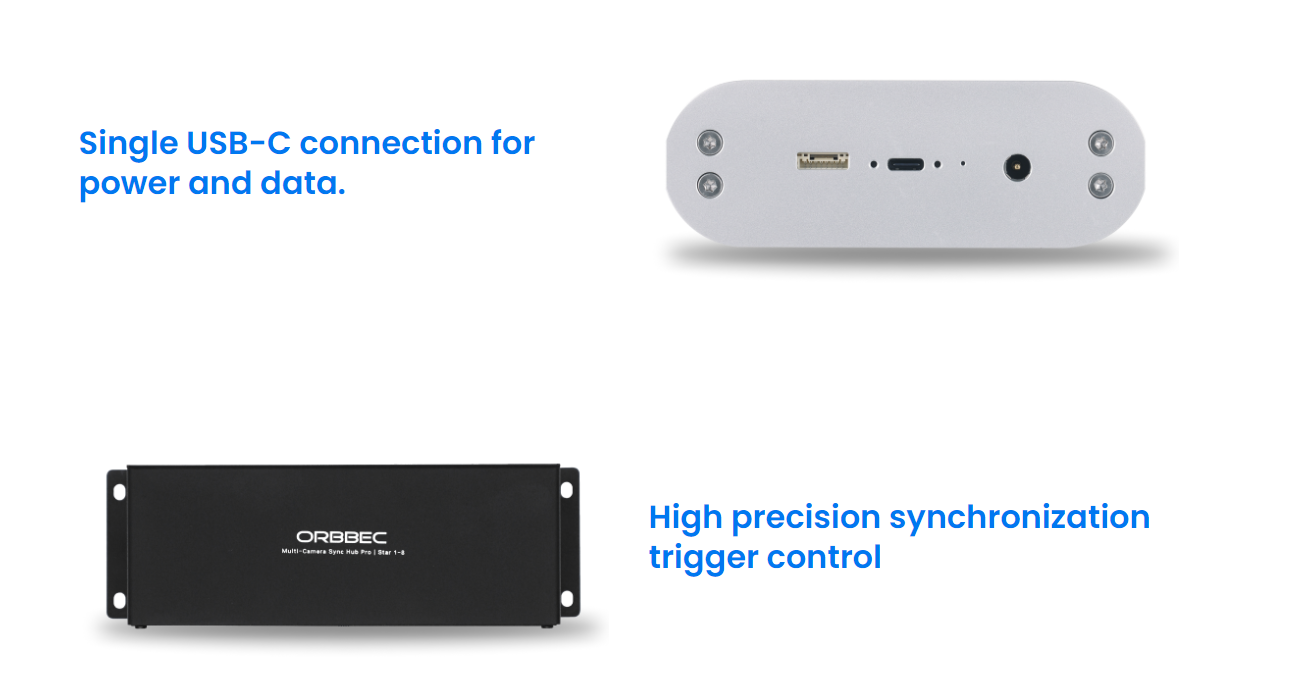

  • USB Type-C 3.2 for power and data
  • Sophisticated and accurate synchronization trigger control for multi-sensor.network

ORBBEC Femto Bolt - TOF Camera Specifications

Camera Specifications
Depth TechnologyTime of Flight
Wavelength850nm
Depth Range*0.25-5.46m (depending on depth mode)
Depth Resolution/FPSUp to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)
Depth FOVH 120° V 120° (WFOV), H 75° V 65° (NFOV)
RGB Resolution/FPSUp to 3840X2160@30fps
RGB FOVH 80° x V 51°
ProcessingHost computer
IMUSupported
Physical Parameters
Data ConnectionUSB 3.2 Type-C, Gen 1
Power InputUSB Type-C/DC 12/2A
TriggerSupported
Power Consumption4.35W Average
Operating Environment10°C -25°C; Indoor/Semi-Outdoor; 8- 90%RH (non-condensing
SDK SupportOrbbec SDK
Data OutputPoint Cloud, Depth Map ,IR & RGB
Dimensions (W*H*D)*115mm x 40mm x 65mm
Weight335g
InstallationBottom: -20UNC Side: 4 x M2.5.
Write Your Own Review
You're reviewing:ORBBEC Femto Bolt - TOF Camera
  1. ORBBEC Femto Bolt - TOF Camera X1
  2. USB -C to USB - A Cable X1
