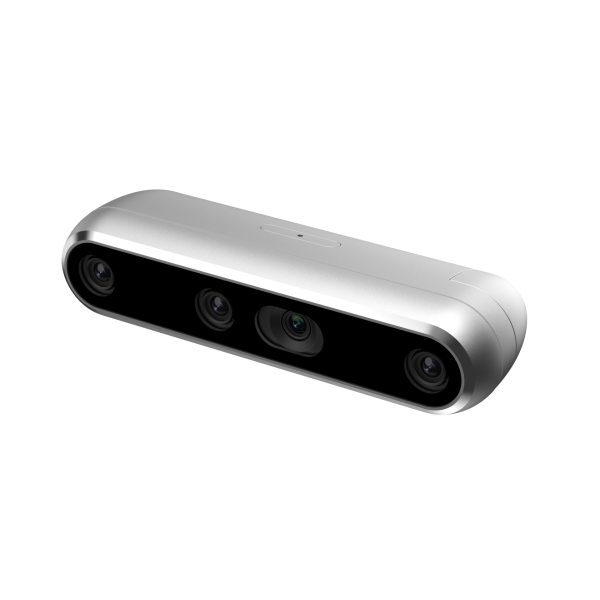

Intel® RealSense™ Depth Camera D457
SKU
TEMP-ACC-0312
Brand
Reward Points
0
Product Description
The Intel® RealSense™ Depth Camera D457 is our first GMSL/FAKRA high bandwidth stereo camera. The D457 has an IP65 grade enclosure protecting it from dust ingress and projected water.
What is GMSL/FAKRA?
Gigabit Multimedia Serial Link (GMSL) is a multigigabit, point-to-point connection targeting the automotive space. GMSL supports multistream over a single cable, up to 15m with a coax cable. GMSL is a high performance protocol combined with a secure FAKRA connector making it best suited for robotic and warehouse applications.
The D457 depth camera adds a GMSL serializer and FAKRA connector to the Intel RealSense camera product line. GMSL/FAKRA offers lower power consumption, reduced ESD/EMI noise, lower latency, and longer cable length compared to USB, while providing higher bandwidth compared to Ethernet.
An IMU inside.
The camera integrates an IMU to allow your application to refine its depth awareness in any situation where the camera moves. This enhances environmental awareness for robotics and drones.
Technical Specifications
| Model | Intel® RealSense™ Depth Camera D457 | |
| Features |
Use environment: | Indoor/Outdoor |
| Ideal Range: | .6 m to 6 m | |
| Image sensor technology: | Global Shutter | |
| Inertial measurement unit: |
Bosch BMI085 | |
| Depth | Depth technology: | Stereoscopic |
| Minimum Depth Distance (Min-Z) at Max Resolution: | ~52 cm | |
| Depth Accuracy: | <2% at 4 m(1) | |
| Depth Field of View (FOV): | 87° × 58° | |
| Depth output resolution: | Up to 1280 × 720 | |
| Depth frame rate: | Up to 90 fps | |
| RGB | RGB frame resolution: | Up to 1280 × 800 |
| RGB frame rate: | 30 fps | |
| RGB sensor technology: | Global Shutter | |
| RGB sensor FOV (H × V): | 90 × 65° | |
| RGB sensor resolution | 1 MP | |
| Major Components | Camera module: | Intel RealSense Module D450 |
| Vision Processor Board: | Intel RealSense Vision Processor D4 with Board V5 | |
| Physical | Form factor: | Camera Peripheral |
| Connectors: | GMSL/FAKRA(2) | |
| Length × Depth × Height: | 90 mm × 25.8 mm × 25 mm | |
| Mounting mechanism: |
|
