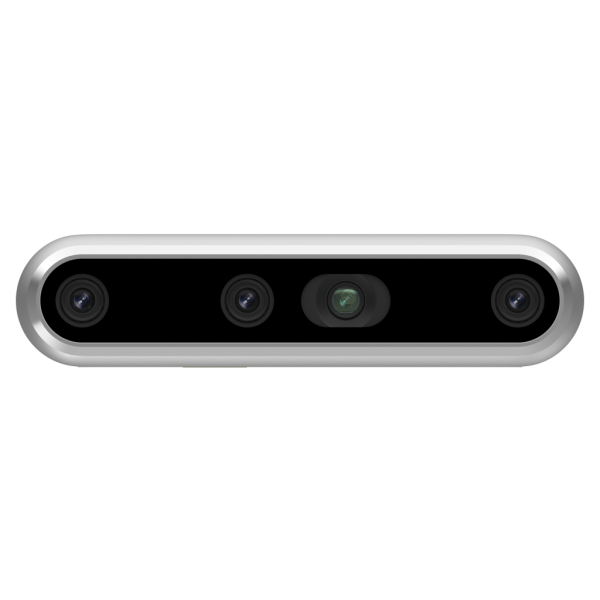

The RealSense™ Depth Camera D456 is based on our longest range D455 USB popular camera with 3 global shutter sensors and IMU. The D456 has an IP65 rated enclosure which is dust tight and protected from projected water.
Longer range for collision avoidance.
Matched RGB and Depth images make for easy scan recreations.
Easier creation of digital twins with multiple cameras in real-time.
Monitor patients or interact with digital sign viewers with increased precision at longer range.
Integrates an IMU to allow your application to refine its depth awareness in any situation where the camera moves.
IP65 rated enclosure which is dust tight and protected from projected water.
The sealed IP65 enclosure with the same dimensional form factor as D455 makes D456 the best fit for outdoor applications (under extreme environments), such as outdoor robots, automotive infotainment outdoor digital signs and more.

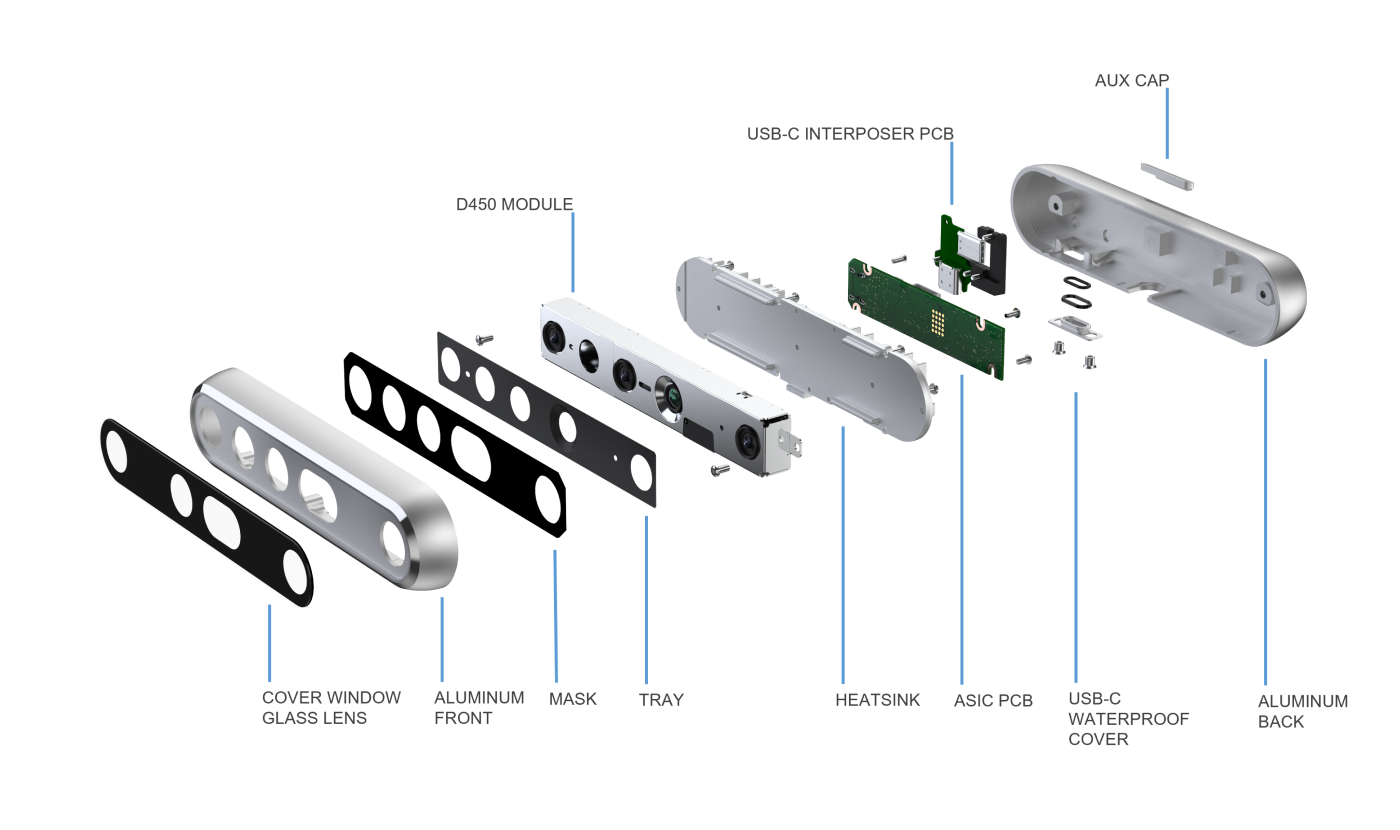

What is inside the camera ?
Technical Specifications
Use Environment
Indoor/Outdoor
Image Sensor Technology
Global Shutter
Ideal Range
.6 m to 6 m
Depth Technology
Stereoscopic
Minimum Depth Distance (Min-Z) at Max Resolution
~52 cm
Depth Accuracy
<2% at 4 m
Depth Field of View (FOV)
87° × 58°
Depth Stream Output Resolution
Up to 1280 × 720
Depth Stream Output Frame Rate
Up to 90 fps
RGB Frame Resolution
1280 × 800
RGB Frame Rate
30 fps
RGB Sensor Technology
Global Shutter
RGB Sensor FOV
90° × 65°
RGB Sensor Resolution
1 MP

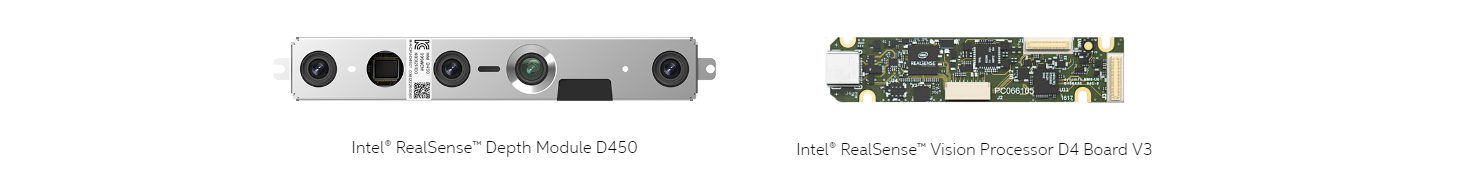

Camera Module
RealSense Module D450
Vision Processor Board
RealSense Vision Processor D4
Form factor
Camera Peripheral
Camera Dimension (Length × Depth × Height)
124 mm × 26 mm × 29 mm
IP rate
IP65
Connectors
USB-C* 3.1 Gen 1*
Mounting Mechanism
– One 1/4‑20 UNC thread mounting point – Two M4 thread mounting points – Tripod
