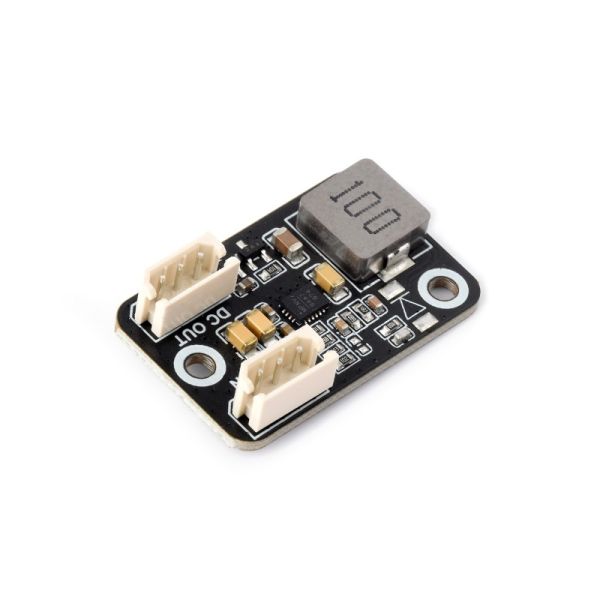

Waveshare Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator ( SKU : 27380 )
Mini size, more space-saving, easy to integrate into the projects
9~36V wide voltage input for more flexible project power selection
Simply connect it in series in the servo circuit to use
Technical Specifications
INPUT VOLTAGE
DC 9~36V
OUTPUT VOLTAGE
DC 7.2V

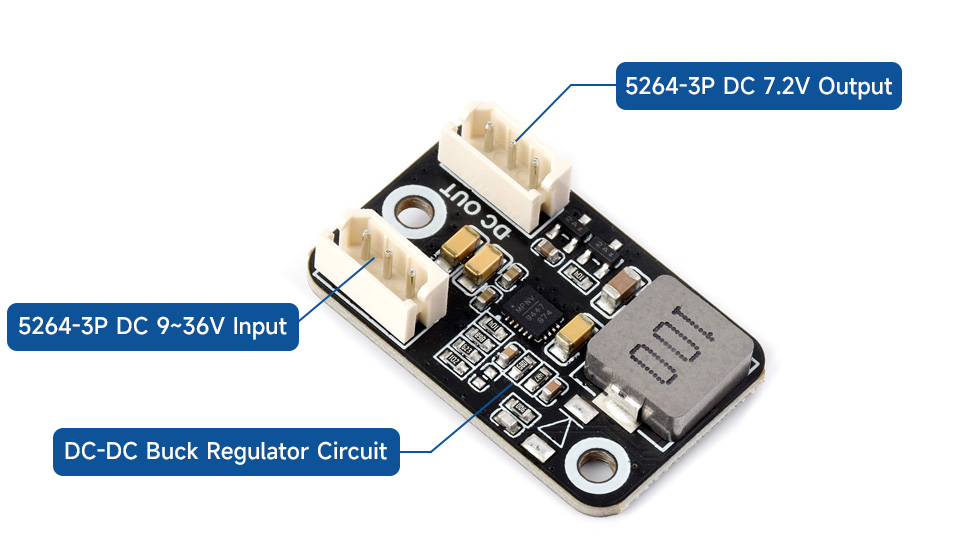

INTERFACE
SC/ST series servo 5264-3P header

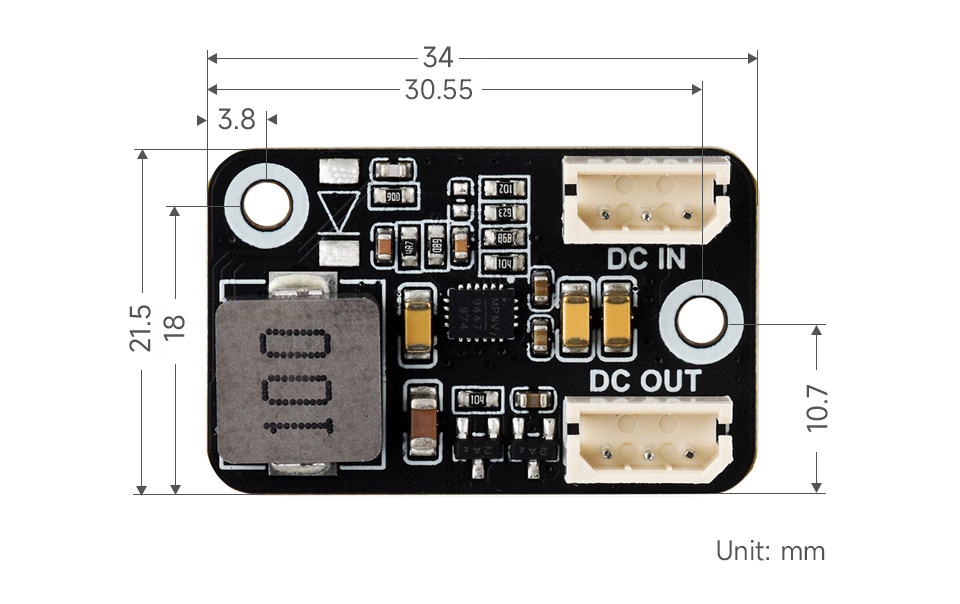

DIMENSIONS
21.50 × 34.00mm
MOUNTING HOLE SIZE
2.70mm
PEAK CURRENT
3A

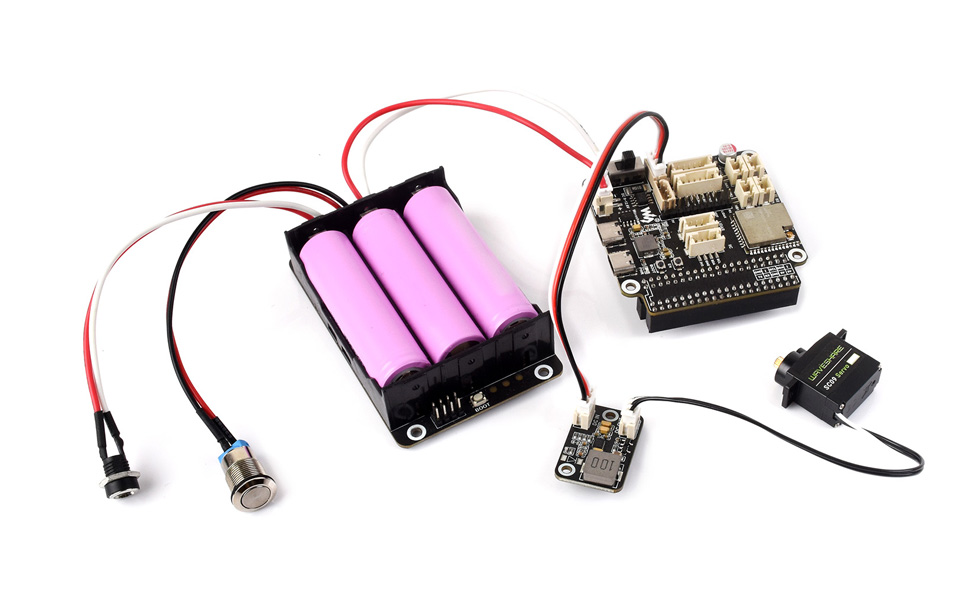

Application Examples
Working With General Driver for Robots driver board, More Flexible for Project Power Selection, Suitable for Serial Bus Servos Such As SC15 Servo and SC09 Servo
for reference only, the UPS module, driver board and servo are NOT included.
