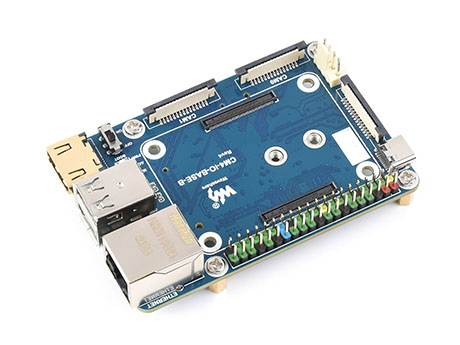

Mini Base Board for Compute Module 4 Designed For Raspberry Pi Compute Module 4 Waveshare CM4-IO-BASE-B (Full Ver.) Inside, Fast And Easy To Build A Mini-Computer

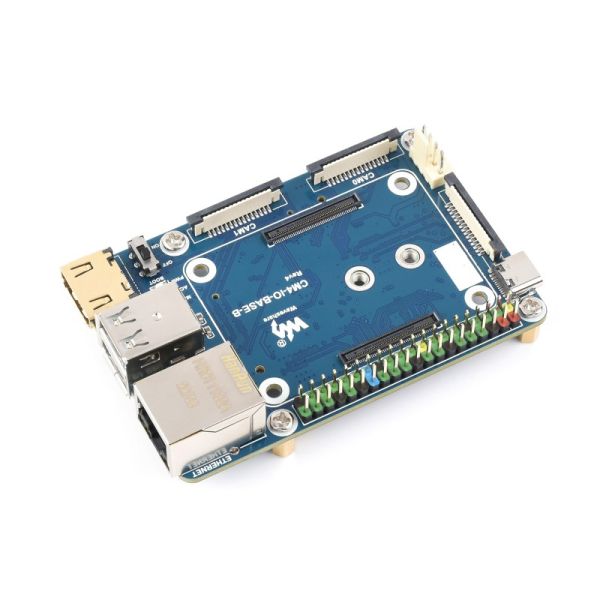

Mini Base B Full Ver the CM4-IO-BASE-B bare board only
CM4-IO-BASE-B + USB HDMI Adapter Expanding additional 2x USB And 1x HDMI Connectors Via FFC, in addition to the CM4-IO-BASE-B base board, it is equipped with a USB HDMI Adapter, FFC Cable and USB Cable, etc
Technical Specifications
CM4 socket
suitable for all variants of Compute Module 4
Networking
Gigabit Ethernet RJ45 connector
M.2 M KEY, supports communication modules or NVME Solid State Drives
Connector
Raspberry Pi 40PIN GPIO header
USB
USB 2.0 Type A × 2, USB 2.0 via FFC connector × 2
Display
MIPI DSI display port (15pin 1.0mm FPC connector)
Camera
MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)
Video
HDMI port × 2 (including one port via FFC connector), supports 4K 30fps output
RTC
Real-time clock with battery socket and ability to wake Compute Module 4
Storage
TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan header
allows speed adjustment and measurement, 5V
Power input
5V

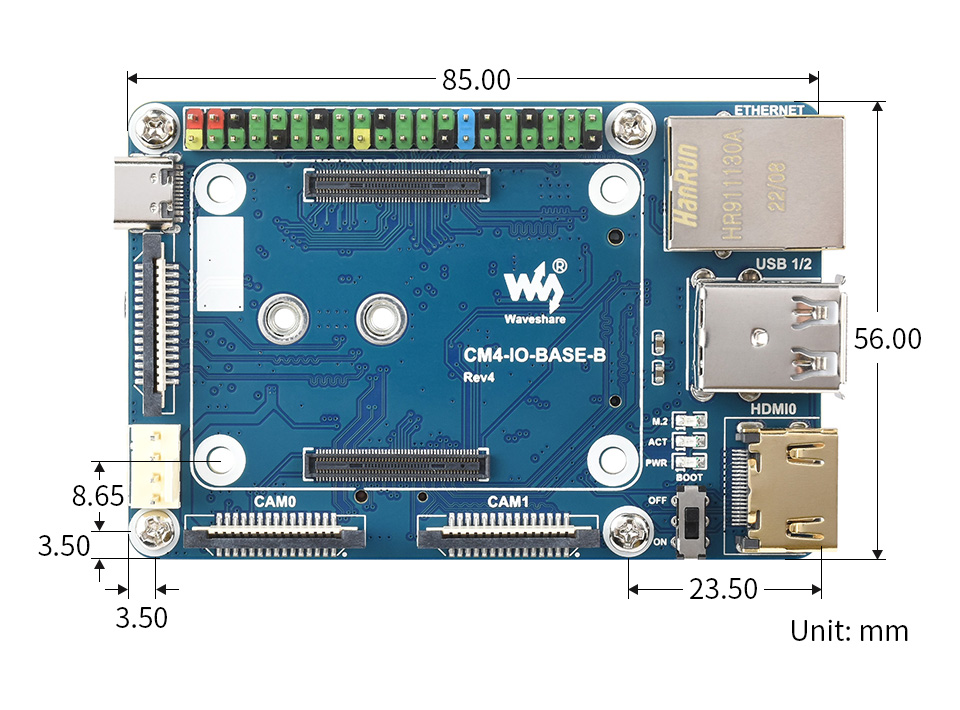

Dimensions
85 × 56mm
Compact, yet Complete

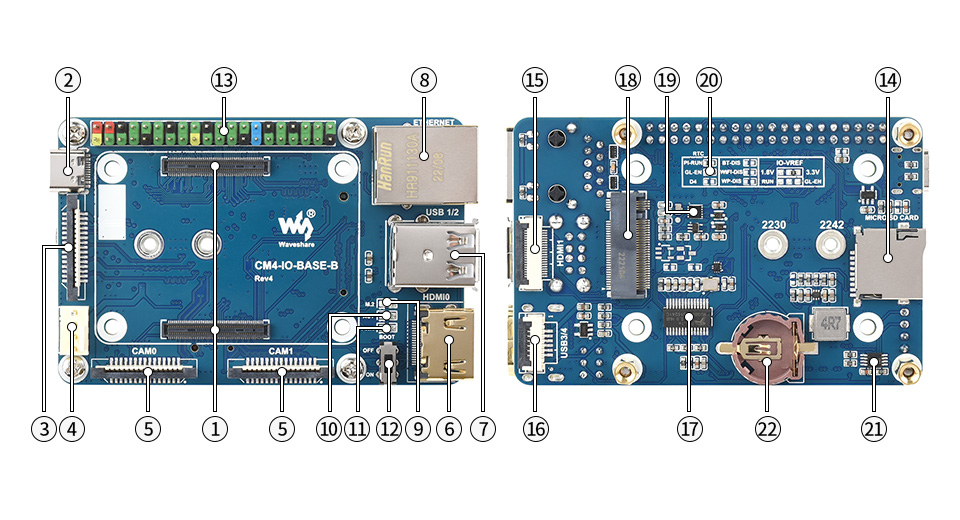

onboard multiple connectors including :CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/TF Card Slot/M.2 Slot

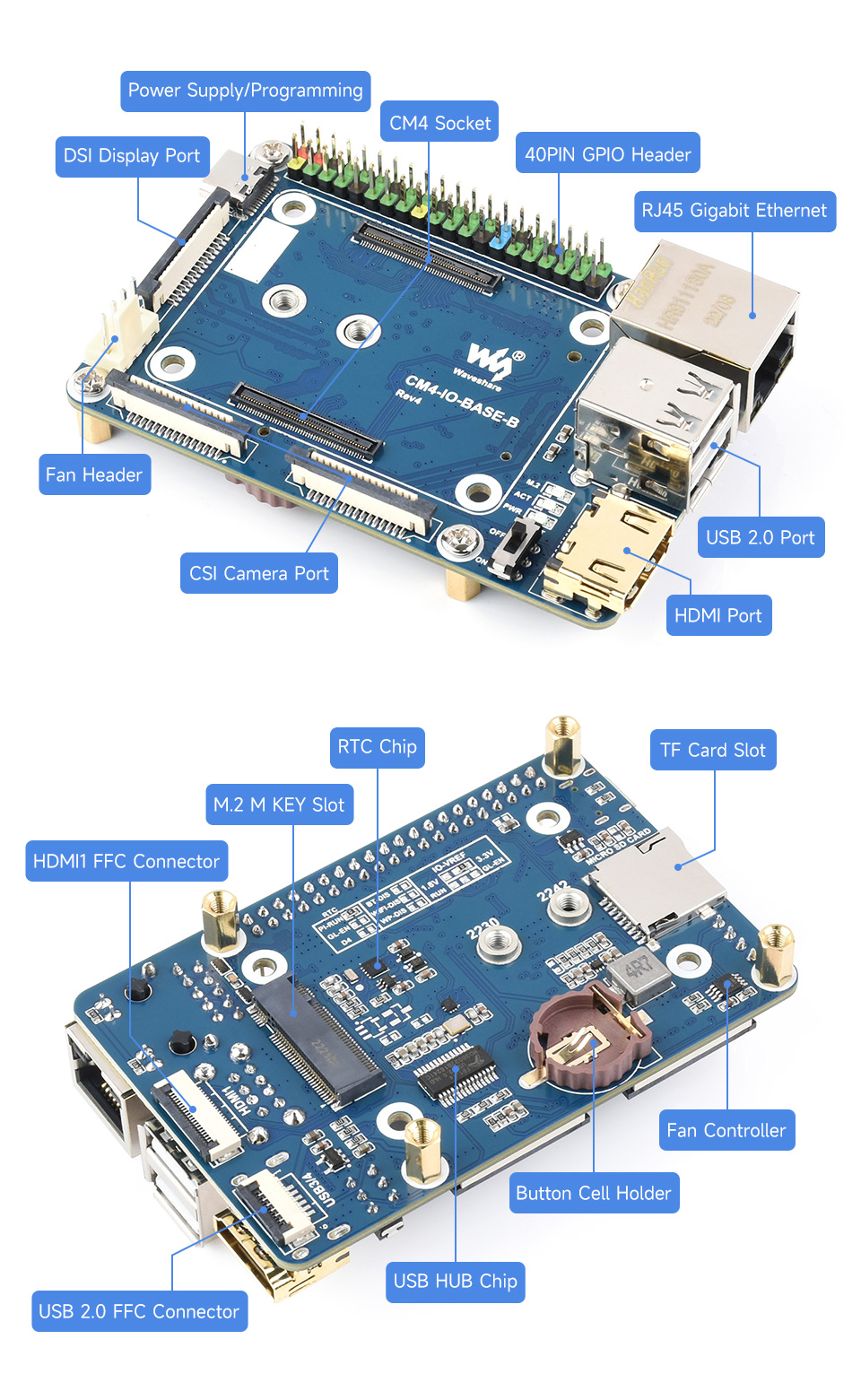

What's On Board
CM4 socket suitable for all variants of Compute Module 4
Power input/Programming 5V/2.5A power supply, or used for eMMC burning
DISP MIPI DSI display port
FAN for connecting cooling fan, allows speed adjustment and measurement
