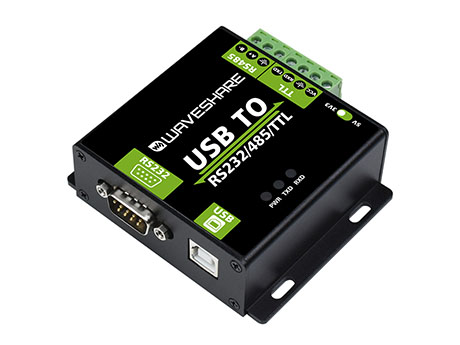

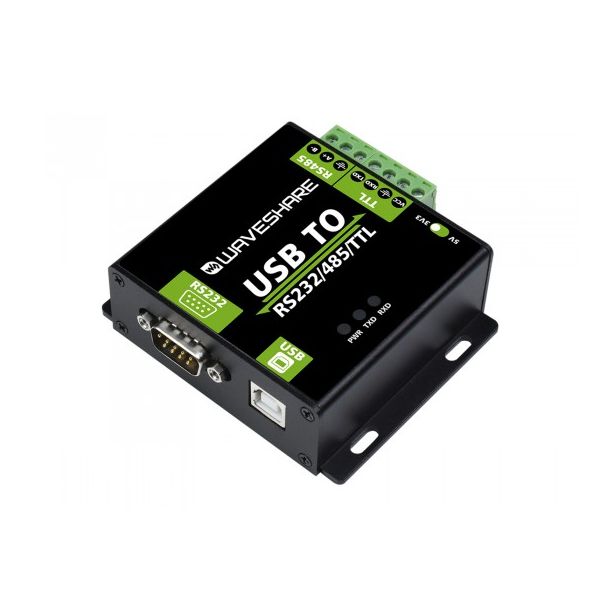

Adopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other

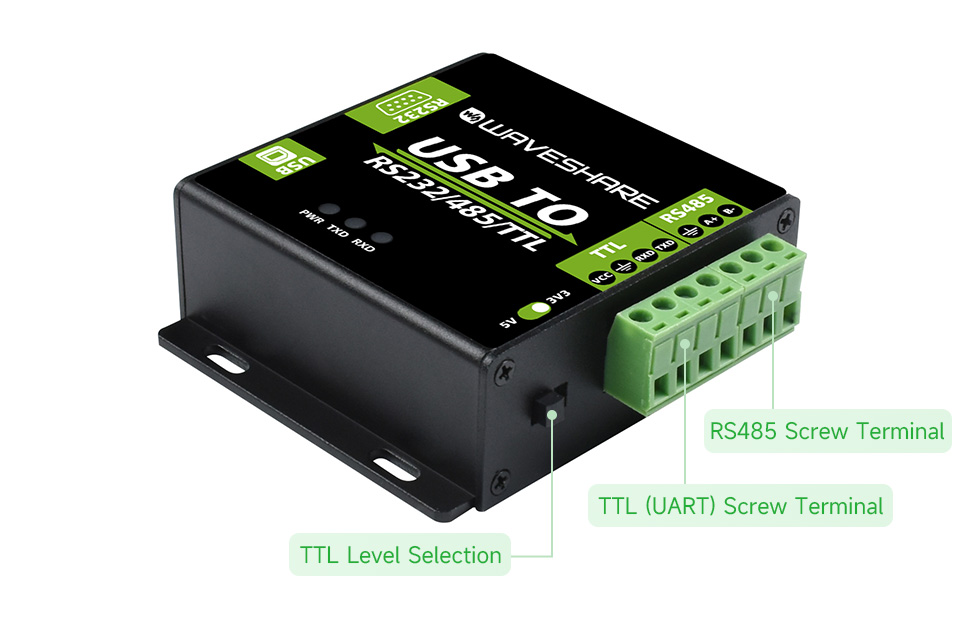

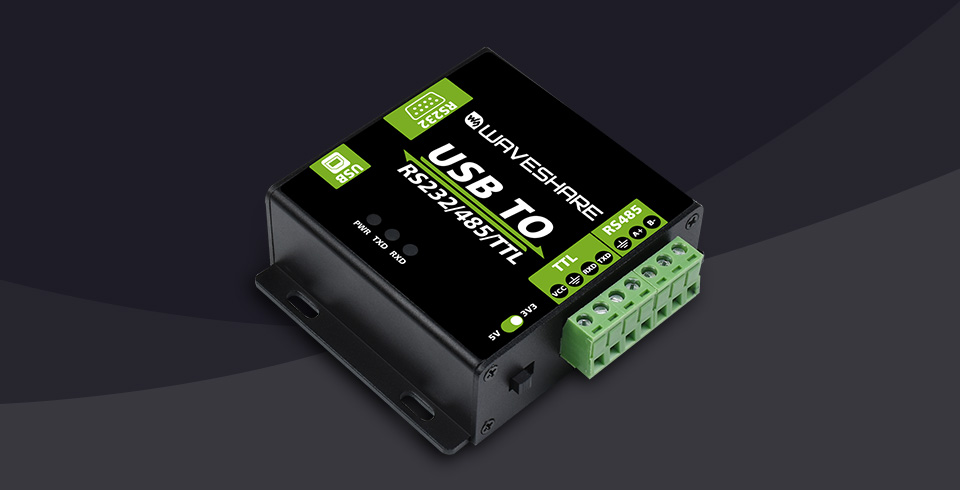

Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable

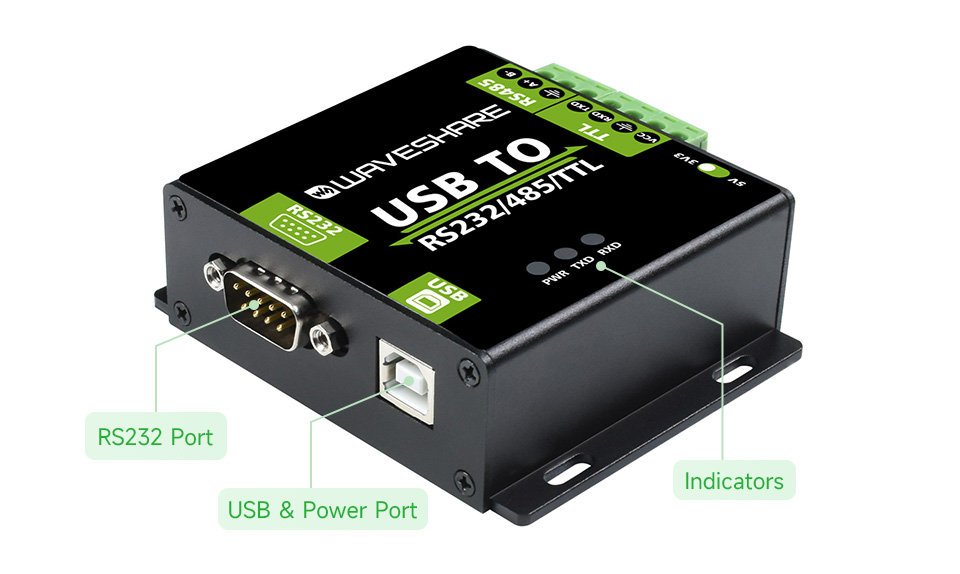

3 LEDs for indicating the power and transceiver status
High quality USB-B and RS232 connectors, smoothly plug/pull

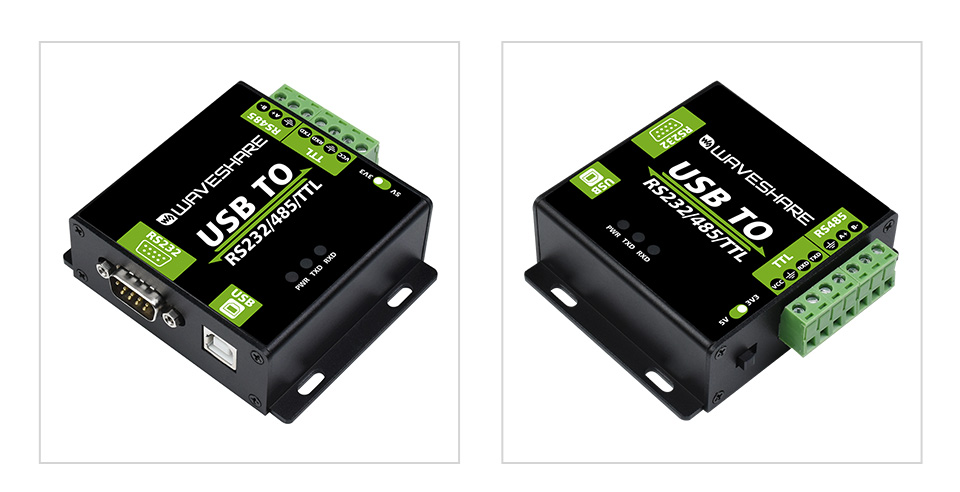

Version Option
FT232RL Version

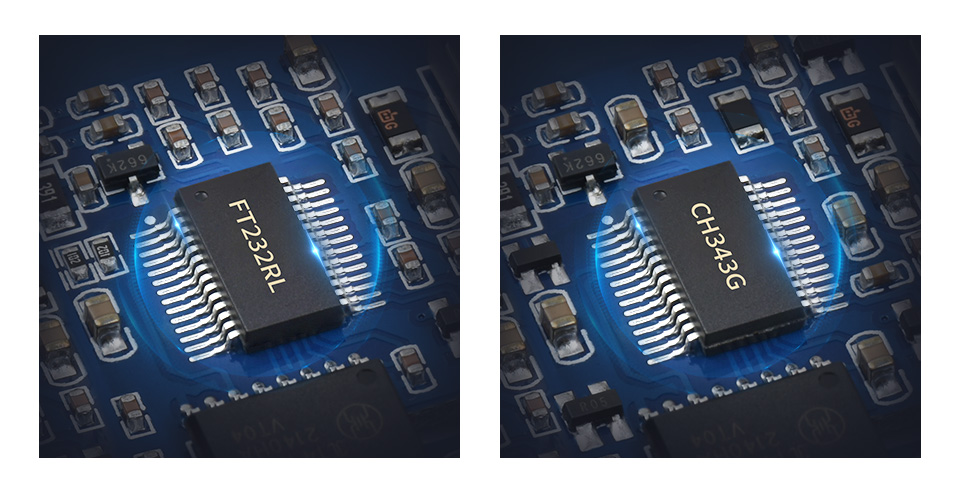

CH343G Version

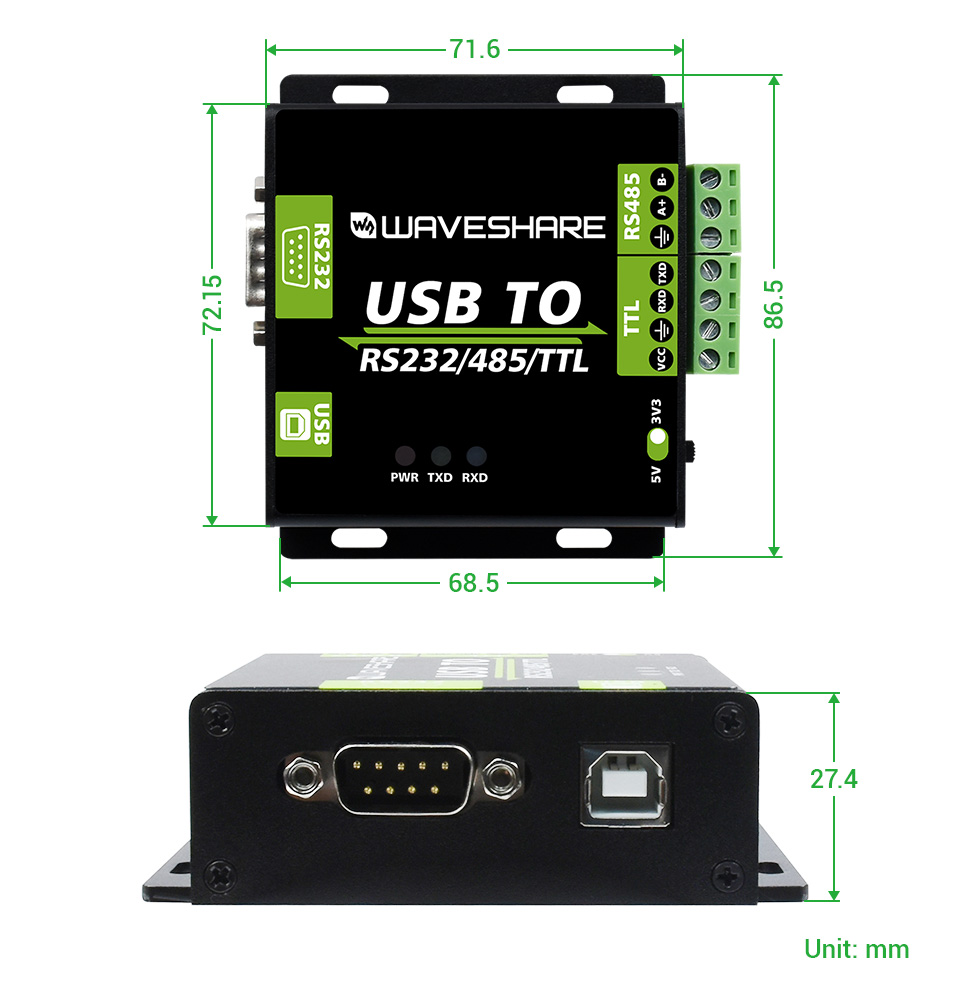

Technical Specifications
Model
Industrial grade isolated USB to RS485 converter
USB
Operating voltage
5V
Connector
USB-B
Protection
200mA self-recovery fuse, isolated output
RS232
Connector

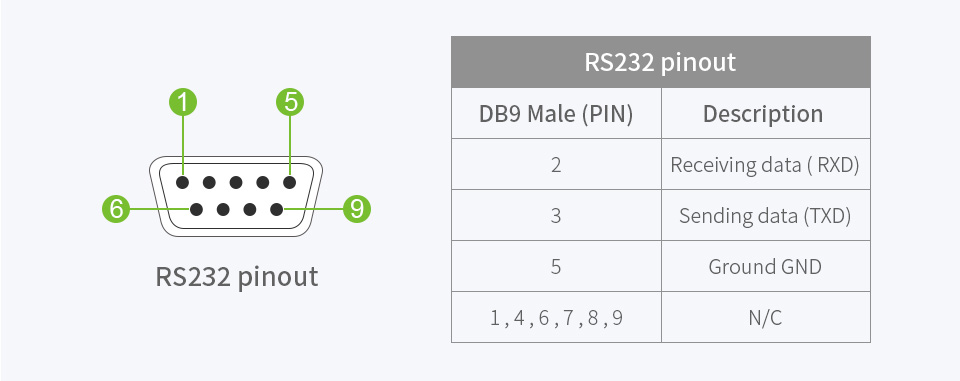

DB9 male
Protection
TVS diode, surge protection & ESD protection
Transmission mode
Point-to-point
Baud rate
FT232RL: 300bps ~ 921600 bps CH343G: up to 600000 bps (not full band)
RS485
Connector
Screw terminal
Pins
A+/B-/GND
Direction control
Hardware automatically discriminates and controls the direction of data transmission
Fast communication, stable & reliable, better compatibility
Safer Isolated Design

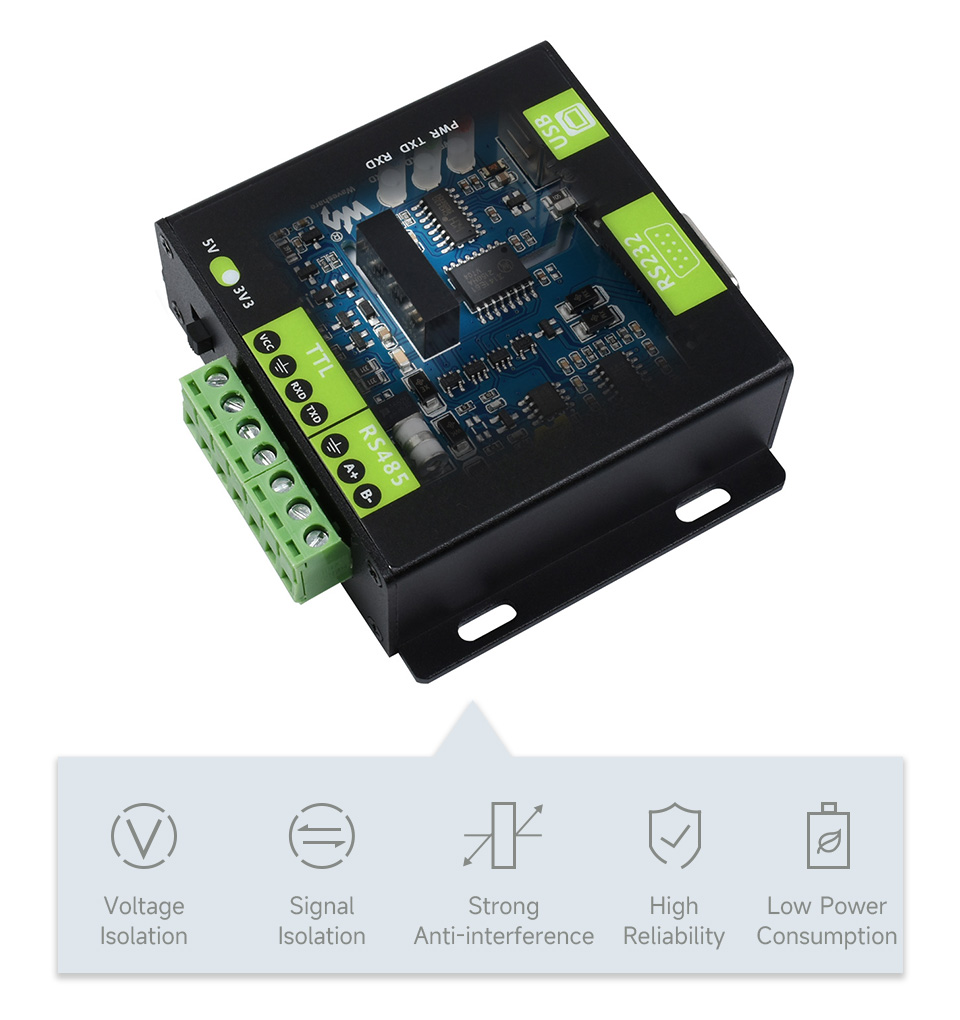

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

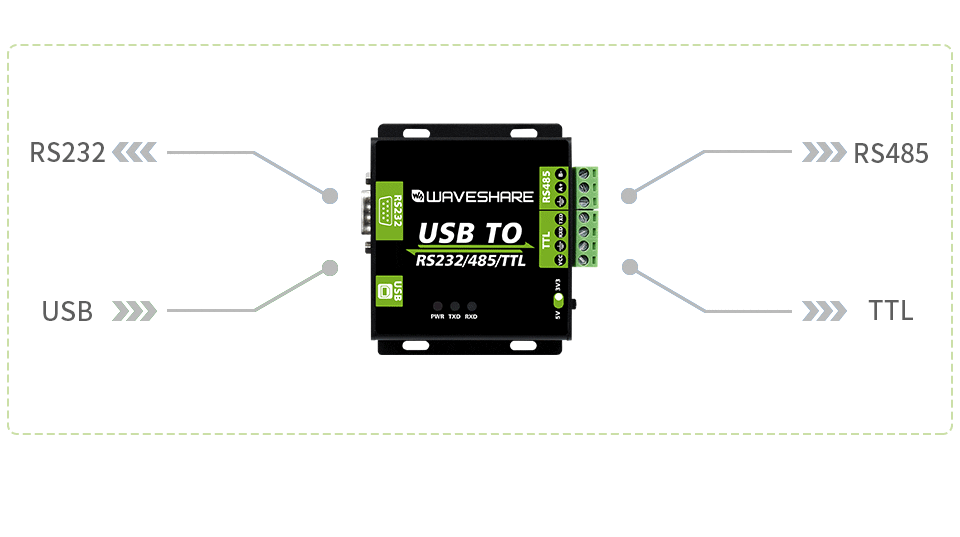

Multi-protocol & Multi-type Conversion

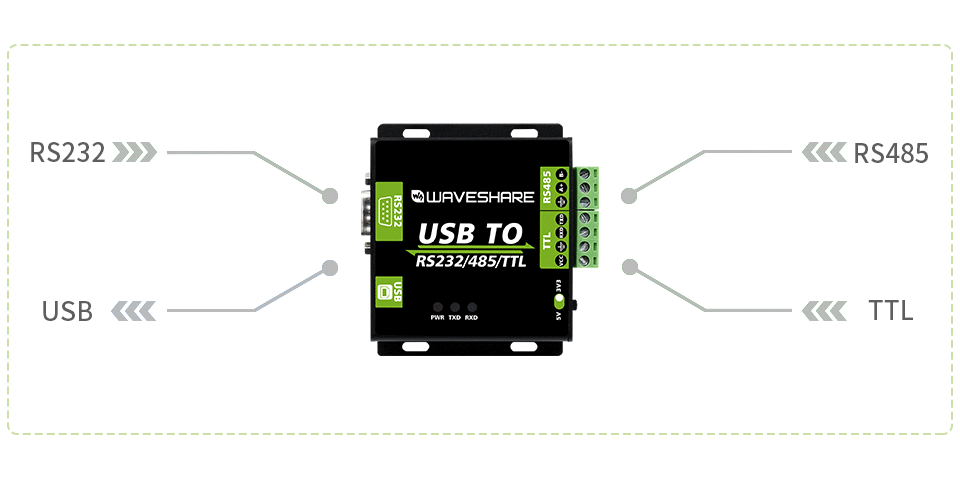

USBTO RS232, RS485 or TTL(UART)
RS232, RS485 or TTL(UART) TO USB
Multiple Protection, Safe And Stable

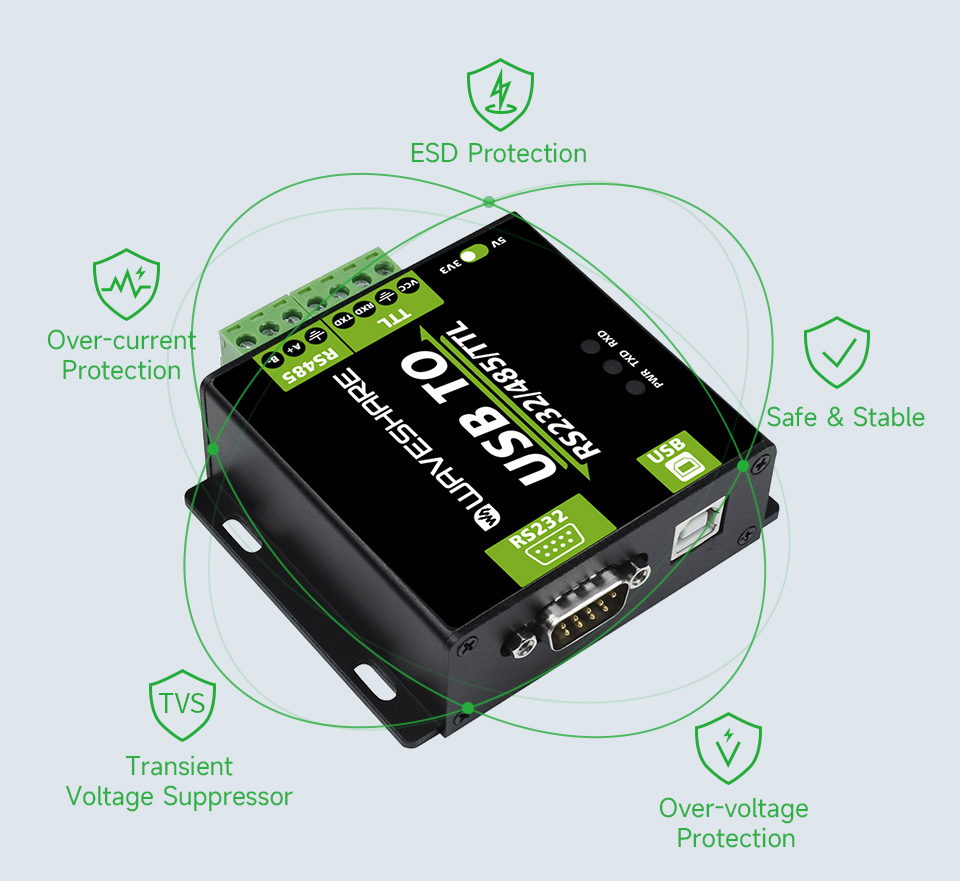

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Multi system Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.
Pinout Definition
Working Status Indicators

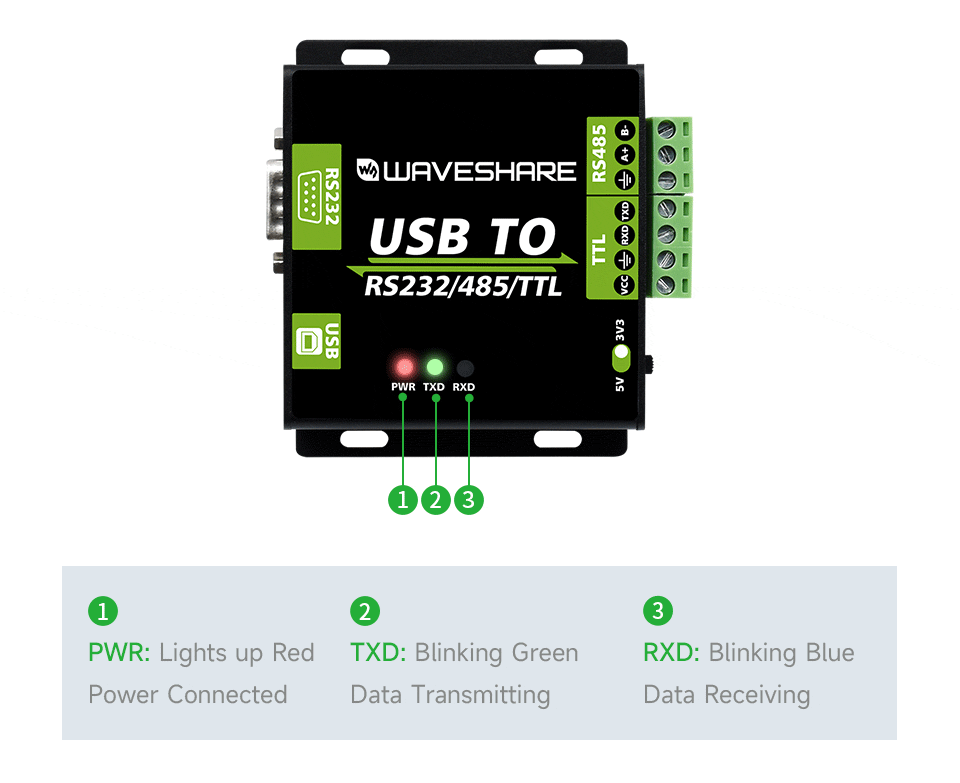

Onboard 3 LEDs for indicating the power and transceiver status

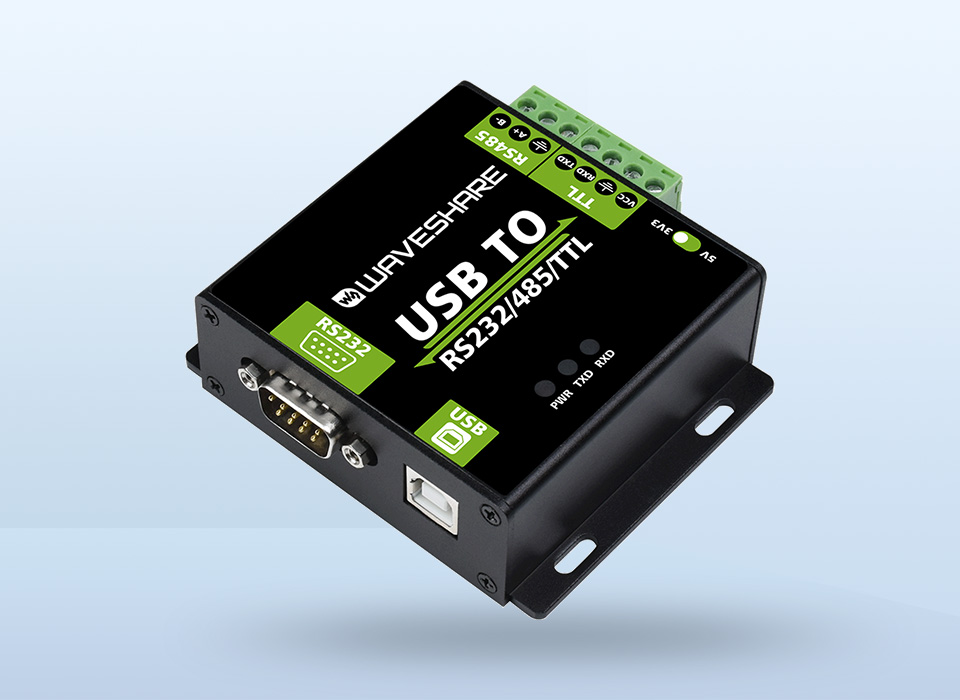

Aluminium Alloy Enclosure
Aluminium alloy enclosure with sand blasting and anodic oxidation Solid and durable, fashion and good hand feeling
