Waveshare 8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480 ( SKU : 21229 )

SKU
TEMP-ACC-0242
Brand Reward Points
0
₹4,229.00 ₹4,990.22
In Stock
Topic: Topic

Product Description

8″ Touch Display

Device & System Support



Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie / RoPieee, driver free


Supports Pi 5/4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*







VisionFive2

Supports Debian, single point touch, driver free

Core3566

Supports Debian / Ubuntu, 5-point touch, driver free





Connection Examples


Working with Raspberry Pi 5

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

Touch Control
Adjustable brightness via software
Design Features
  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. Power supply via pogo pins, eliminating messy wiring
  4. Two types of 5V output headers, for connecting cooling fan or other low power devices
  5. Reversed camera hole on the touch panel, allows integrating external camera
  6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices
  7. Adopts SMD nuts for holding and fixing the board, more compact structure

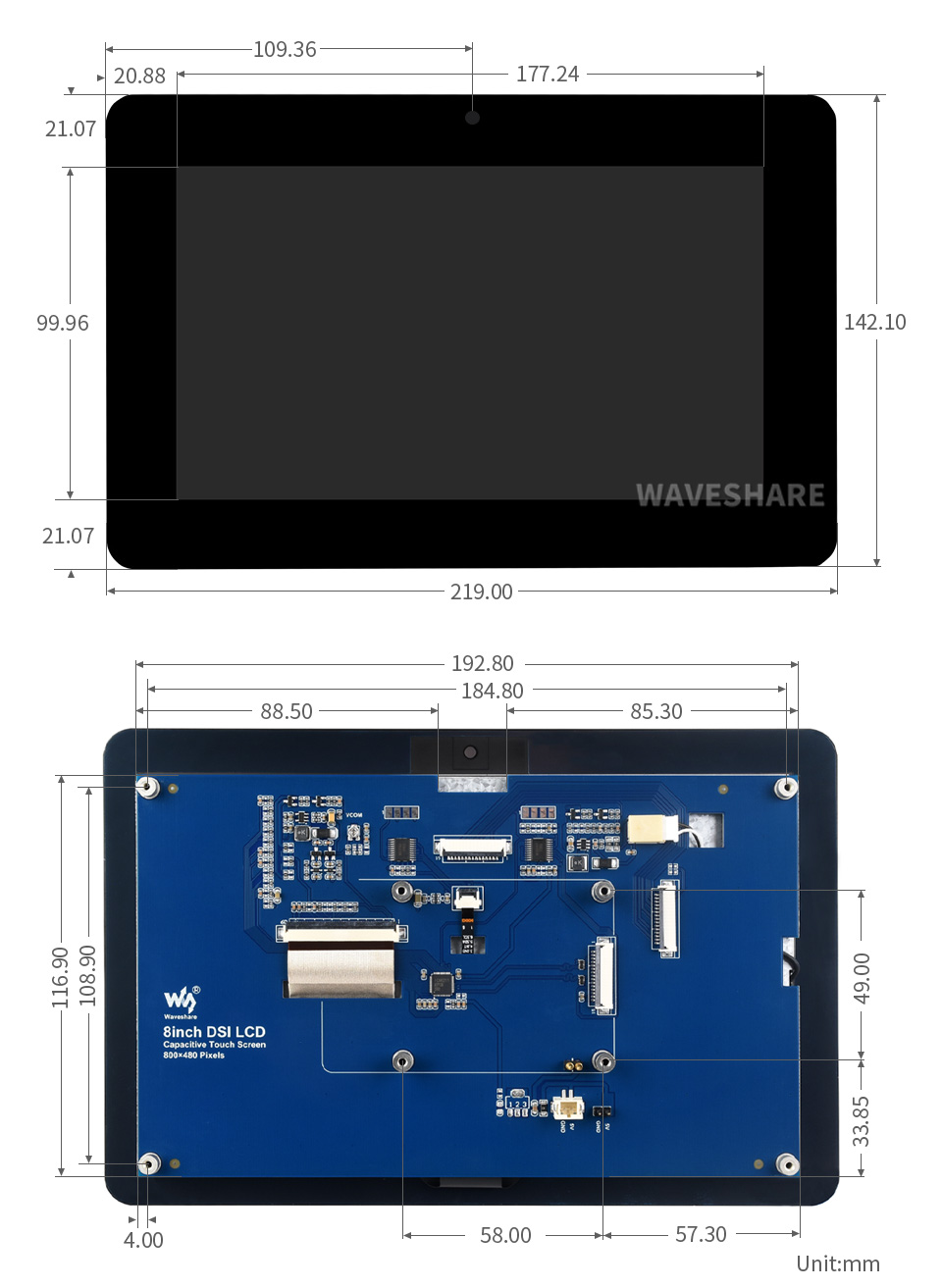

Appearance and Dimensions
Support touch screen customization


Support the following ways to customize the touch screen display in bulk order

Write Your Own Review
You're reviewing:Waveshare 8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480 ( SKU : 21229 )
  1. 8inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. DSI-Cable-12cm x1
  4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
  5. 2PIN wire 10cm x1
  6. Screws pack x1
