Waveshare 10.1inch Resistive Touch Screen LCD, 1024×600 ( SKU : 11870)

SKU
TEMP-ACC-0369
Brand Reward Points
0
₹5,599.00 ₹6,606.82
Back Order
Topic: Topic

Product Description

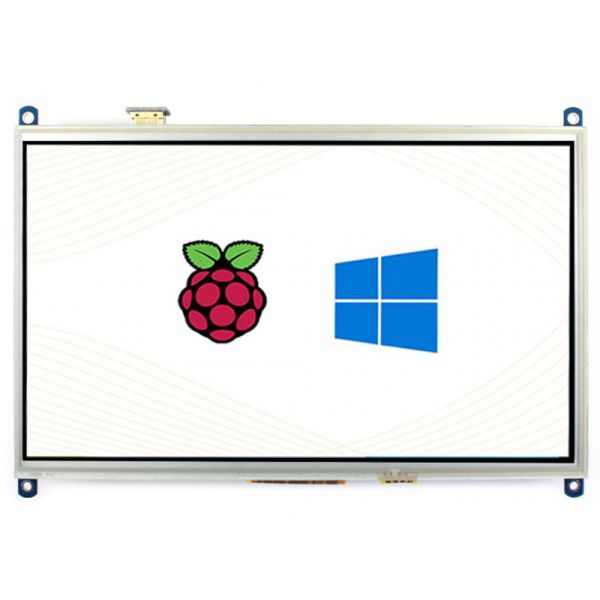

10.1inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Supports Raspberry Pi / PC



Technical Specifications

Model10.1inch Resistive Touch Screen LCD (SKU:11870)
Size10.1"
Resolution1024×600
Display PortHDMI
Display PanelIPS
Viewing Angle170°
Touch TypeResistive
Touch PortSPI
OSD MenuBrightness/Contrast
CertificationCE



Device & System Support

Device System Support
Raspberry Pi
Directly Pluggable: Raspberry Pi 4B / 3B+ / 3A+ / 3B / 2B / 1B+ / 1A+
Additional HDMI Cable Required: Raspberry Pi Zero 2 W / Zero W / Zero
Driver Provided: supports Raspberry Pi OS / Ubuntu / Kali / Retropie


Supports future version which is backward compatible

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, no touch (additional HDMI cable required)

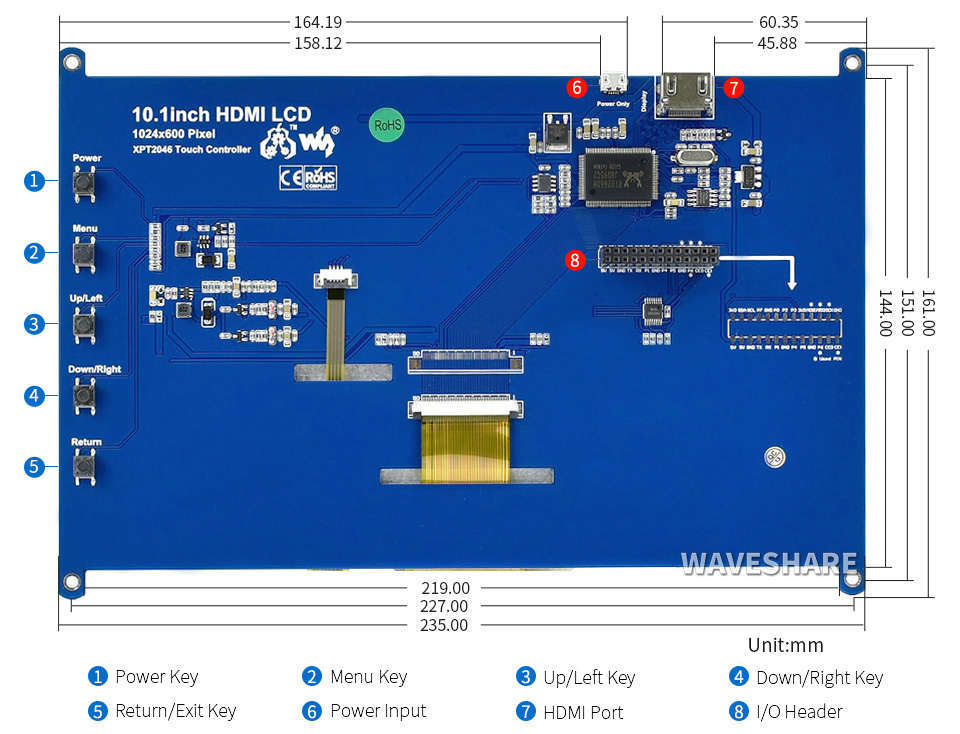

Appearance and Dimensions

Write Your Own Review
You're reviewing:Waveshare 10.1inch Resistive Touch Screen LCD, 1024×600 ( SKU : 11870)
  1. 8inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. 10.1inch HDMI LCD x1
  4. HDMI Adapter (A) x1
  5. HDMI Adapter (B) x1
  6. Touch stylus x1
  7. RPi screws pack (4pcs) x1
