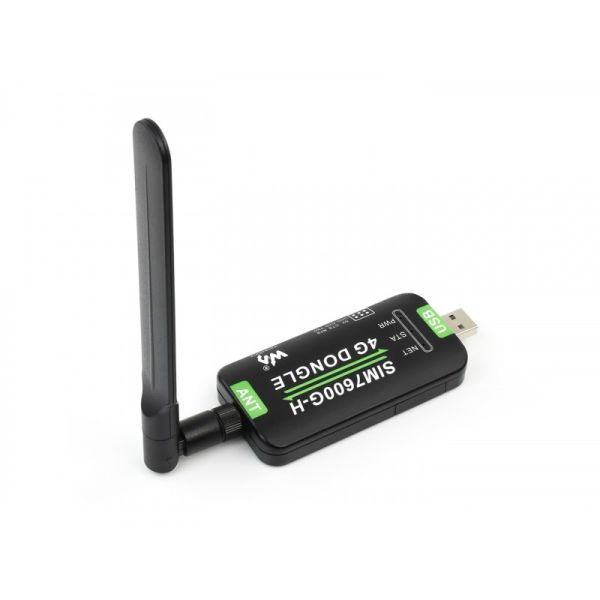

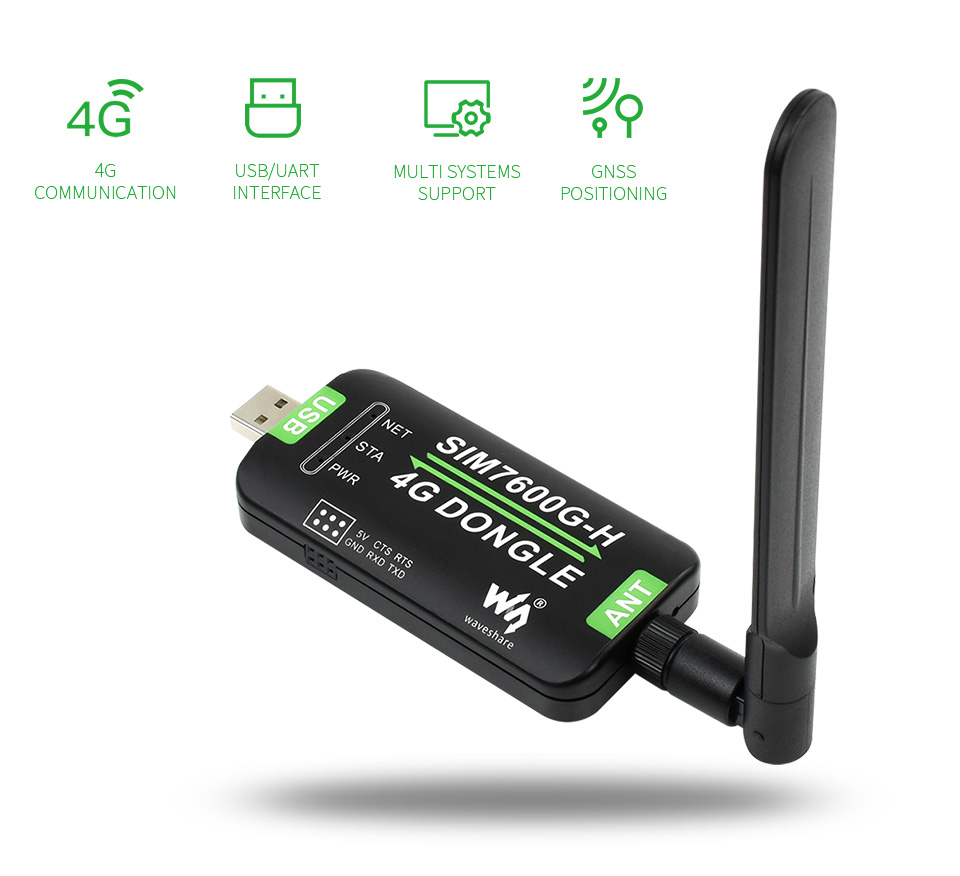

This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
Features at a glance
Supports 2G/3G/4G network connection, global band
Driver provided, for operating systems including Windows/Linux
Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32

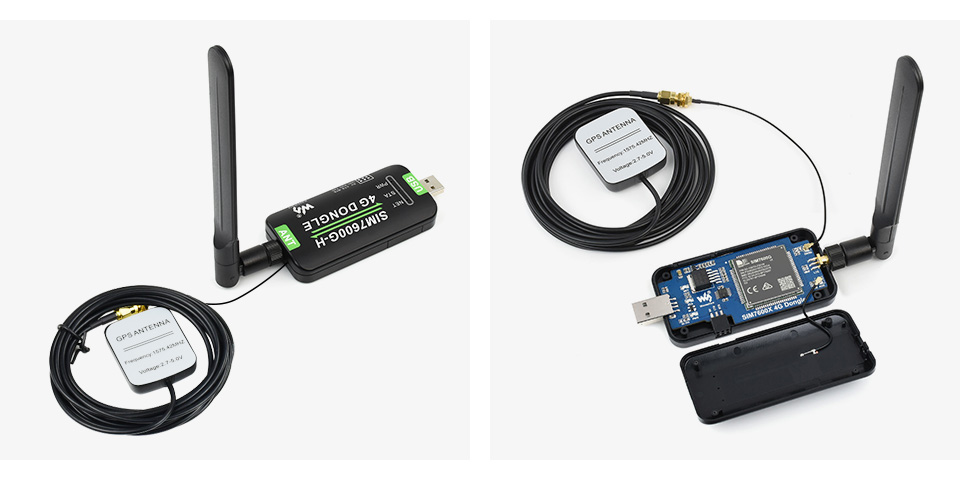

Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)

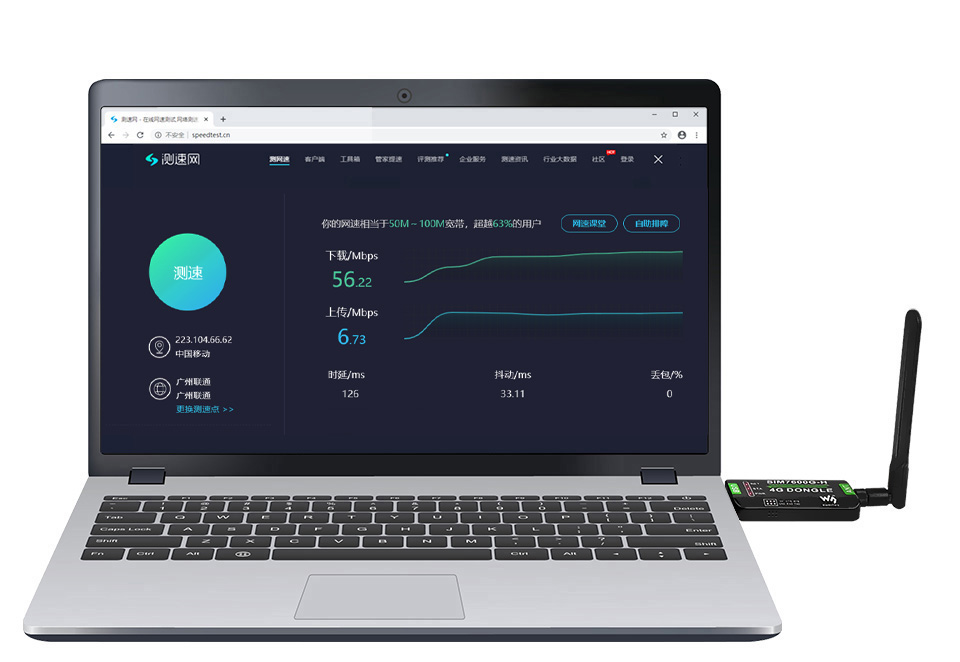

working with laptop / Raspberry Pi / industrial computer... up to 150Mbps downlink and 50Mbps uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.

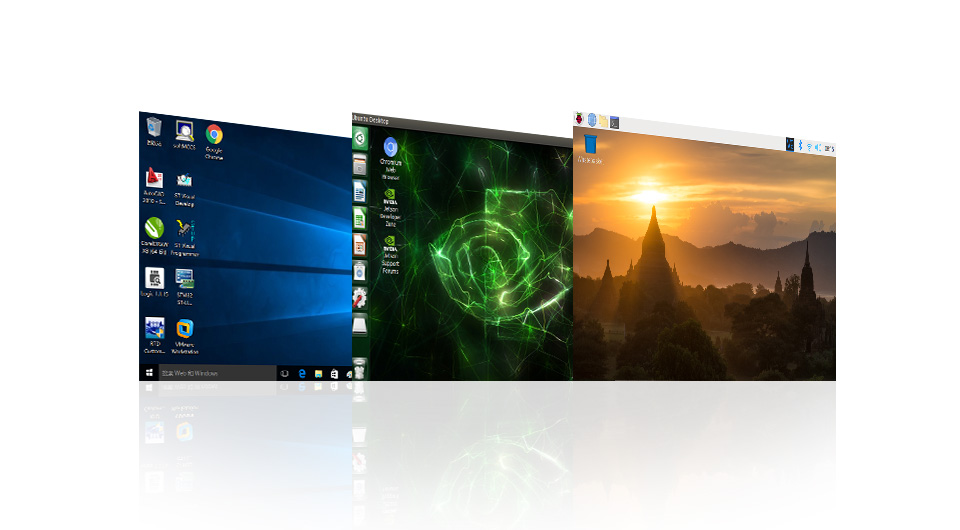

Multi system support
supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
Cloud Communication

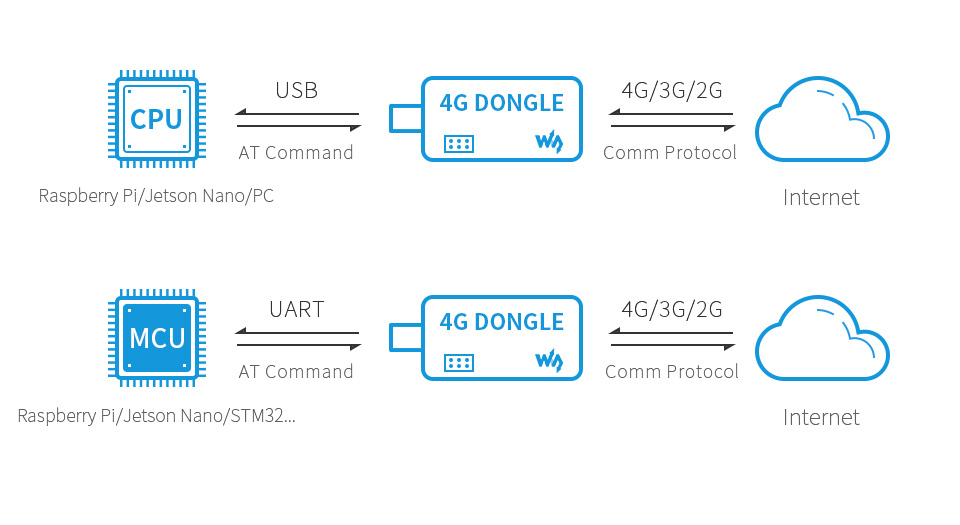

supports USB/UART communication interfaces supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS base station positioning
Embedded AUX antenna
embedded customized FPC AUX antenna, better communication via dual antennas

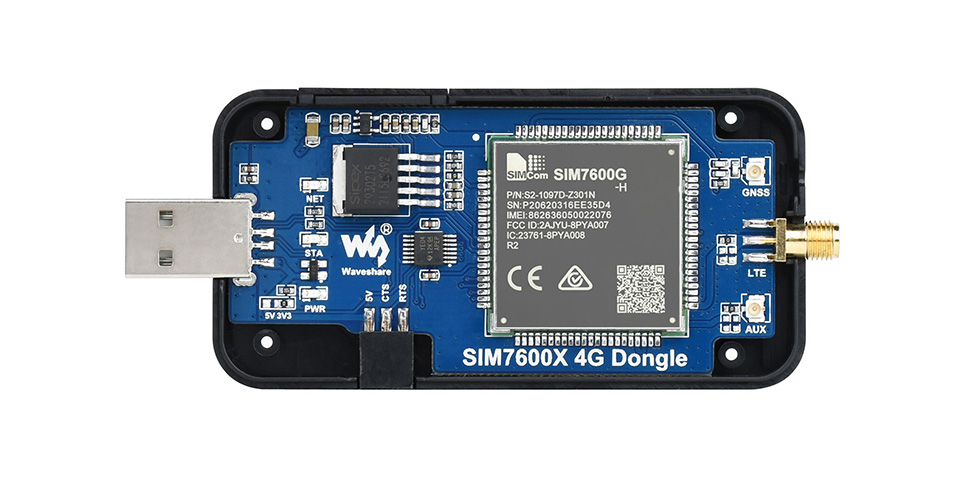

Industrial grade 4G solution

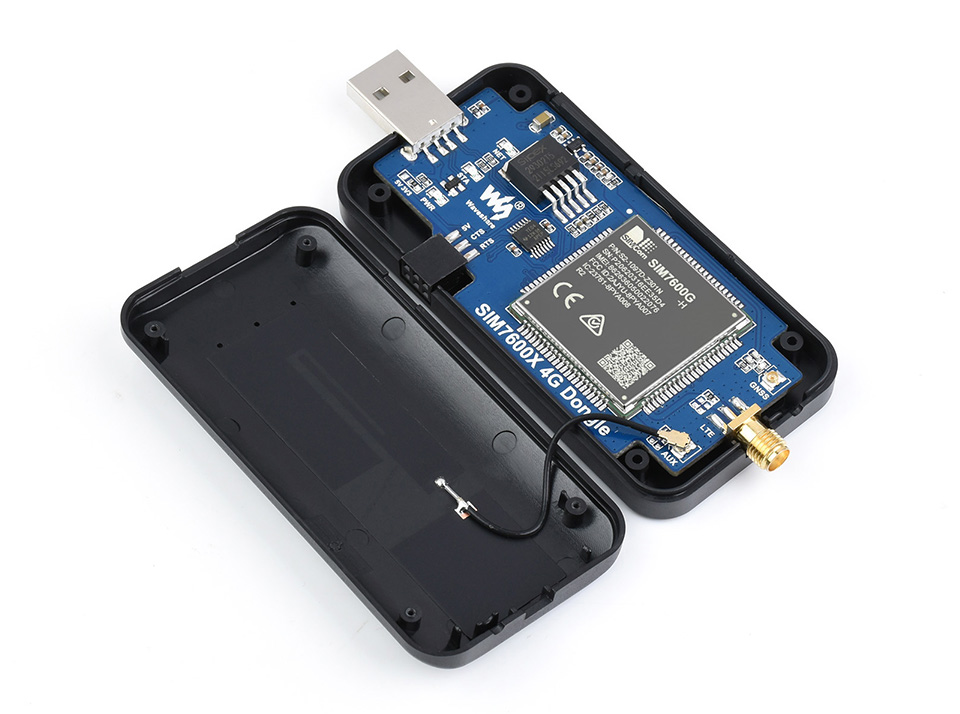

Integrates SIM7600G-H module, industrial grade design, stable connection, more durable

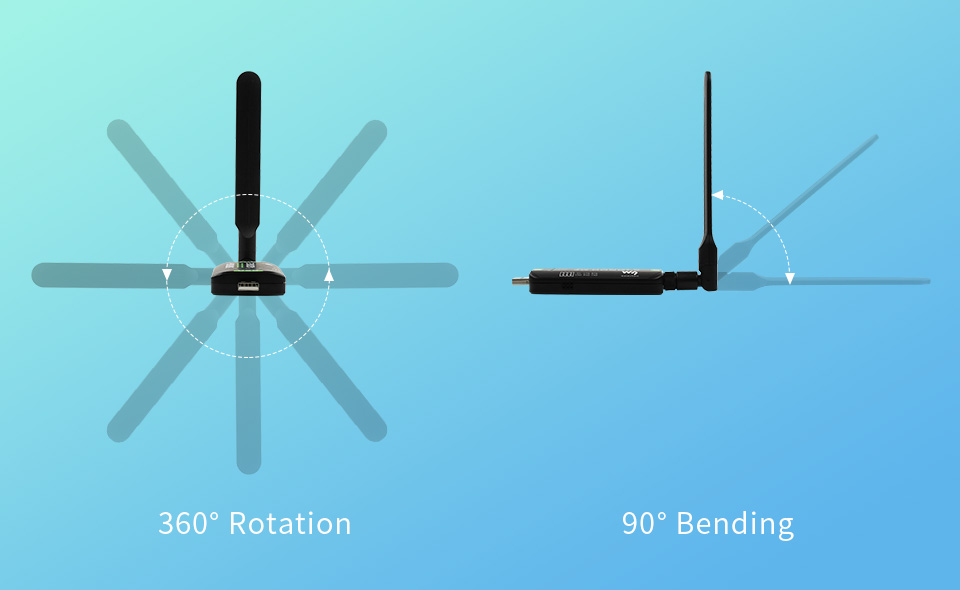

Flexible antenna
flexible structure antenna design, allows multidimensional rotation for better connection

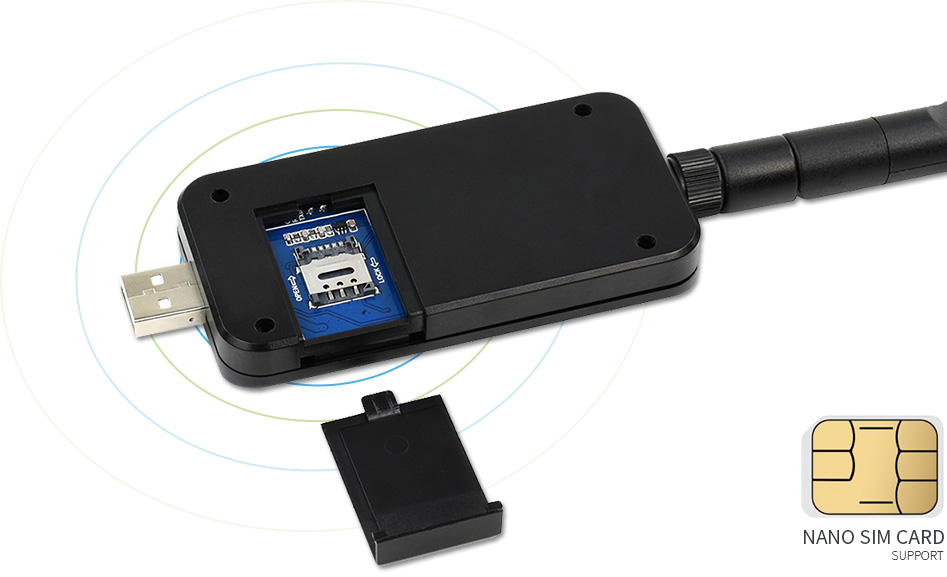

4G SIM card slot
onboard nano SIM card slot with sliding cover, easy to use

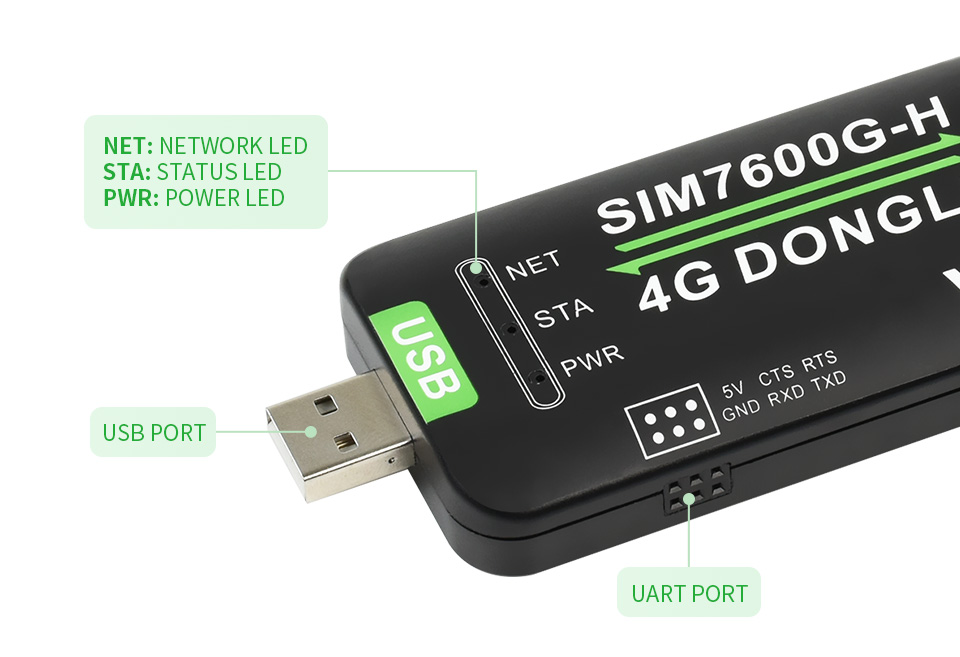

Three LED indicators
easy to check the operating status, convenient for programming/debugging
UART pinouts
5V
5V DC input
GND
power ground
TXD
data transmitting
RXD
data receiving
CTS
hardware flow control, clear to send, NC if not used
RTS
hardware flow control, request to send, NC if not used
Application examples
Customizing service
for bulk purchase, customizing service is available for hardware revising or other communication modules like: SIM7600CE-T/SA-H/V-H/JC-H...
