This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.

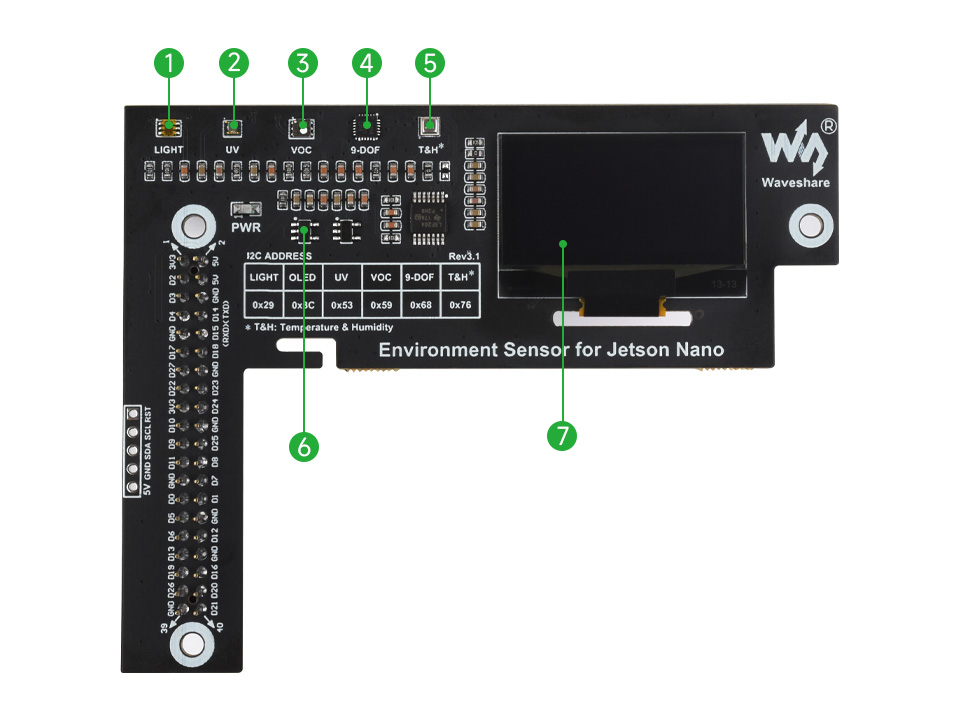

Features at a glance
Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
Onboard LTR390-UV-1 sensor, for measuring IR/UV rays
Onboard SGP40 sensor, for detecting ambient VOC

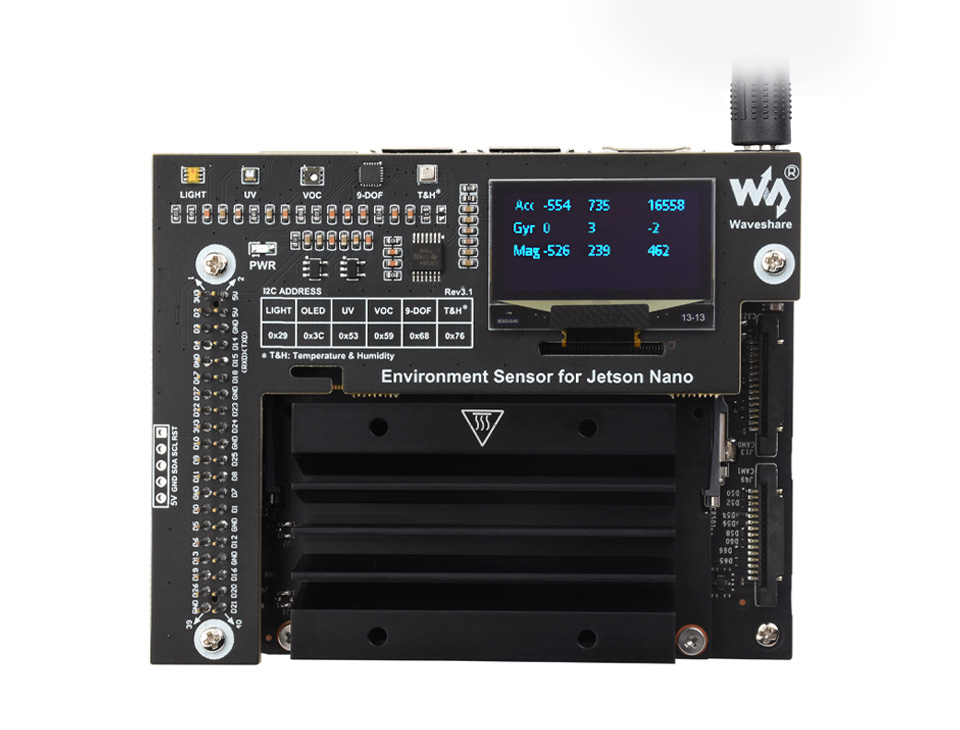

Onboard 1.3inch OLED display, for displaying environment data in real time
I2C bus, allows reading and displaying data by just using two wires
Comes with development resources and user manual (python examples)
Technical Specifications
TSL25911FN digital ambient light sensor
I2C address
0x29
Effective range
0~88000Lux
BME280 temperature, humidity, and air pressure sensor
I2C address
0x76
Temperature detection
-40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy)
Humidity detection
0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay)
