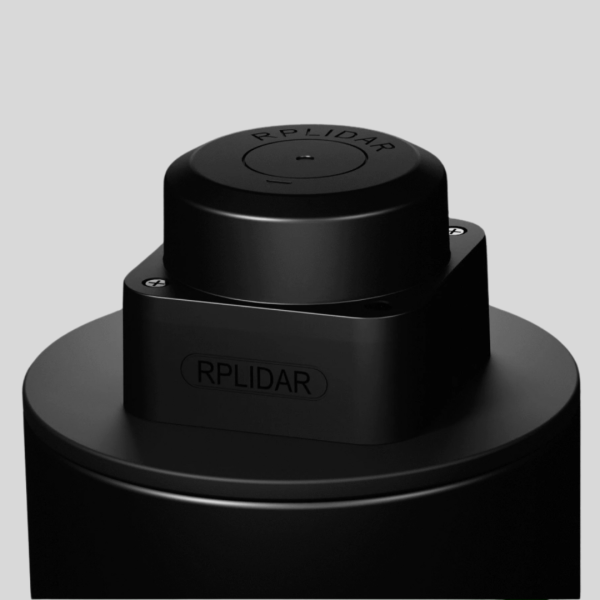

RPLidar C1 - 360 Degree Laser Scanner

SKU
TEMP-ACC-0223
Brand Reward Points
0
₹5,399.00 ₹6,370.82
In Stock
Categories: Product Brand Sensor SLAMTEC
Topic: Topic

Product Description

In response to the need for consumer robots to have precise environmental perception capabilities, while also meeting the requirements of long-distance sensing and high sensitivity, SLAMTEC has introduced a new generation of fusion-type DTOF (Direct Time of Flight) laser scanner called RPLIDAR C1.

This LIDAR integrates years of expertise and performs exceptionally well in high- definition of small and nearby objects, anti-interference, and anti-adhesion capabilities. With a 12-meter measurement radius, a sampling frequency of 5000 times per second, and 360-degree full-range laser scanning, its compact and nimble appearance fully meets the needs of applications such as robot positioning, mapping, navigation, and obstacle avoidance in various environments.



Technical Specifications

NameRPLidar C1
Angular Range360 °
Working Range12M
Measuring Accuracy30mm
Sampling Frequency5KHz
Scanning Frequency10Hz
Angular Resolution0.72°
RPlidar Dimensions55.6×55.6×41.3mm
ApplicationsIndoor & Outdoor
Write Your Own Review
You're reviewing:RPLidar C1 - 360 Degree Laser Scanner
  1. RPLidar C1 - 360 Degree Laser Scanner x1
  2. USB adapter x1
  3. USB Type-C cable x1
