OpenWrt One/AP-24.XY Router Board

OpenWrt One/AP-24.XY Router Board

Banana Pi R4 -Pro-8x (8G DDR4+8G eMMC)

SKU
TEMP-ACC-0754
Brand Reward Points
0
₹32,299.00 ₹38,112.82
Back Order
Categories: Product Single Board Computers Brand Banana Pi Banana Pi Banana Pi Module
Topic: Topic
Add to Wish List

Frequently bought together

  1. Banana Pi R4 -Pro-8x (8G DDR4+8G eMMC)
    This item: Banana Pi R4 -Pro-8x (8G DDR4+8G eMMC) ₹38,112.82 Out of stock
  2. +
  3. Banana Pi BPI-R4-NIC-BE14
  4. Banana Pi BPI-R4-NIC-BE14 ₹7,432.82
    5. Total price: ₹0.00

Product Description

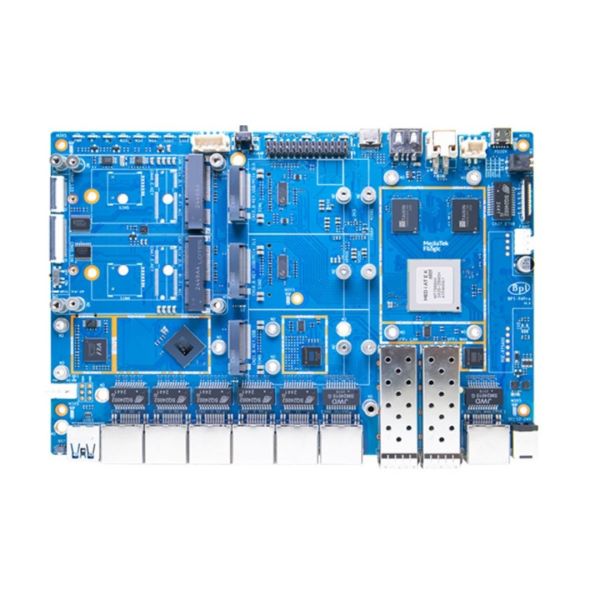

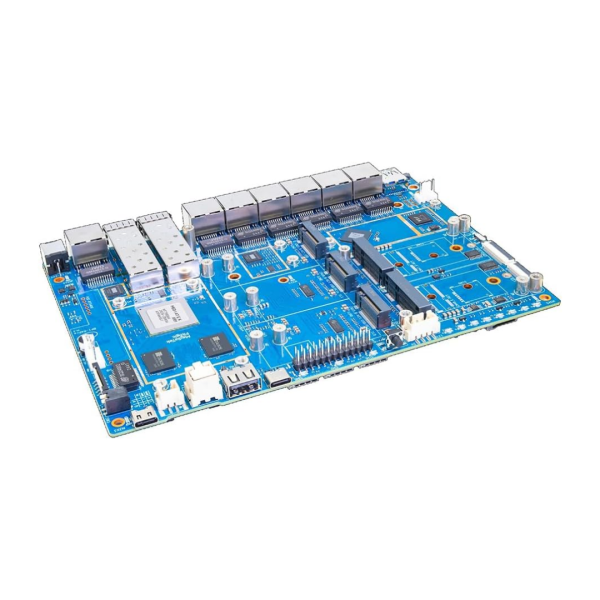

Banana Pi BPI-R4Pro Router board with MediaTek MT7988A(Filogic 880) Quad-core ARM Cortex-A73 design ,4GB/8GB DDR4 RAM,8GB eMMC,256MB SPI-NAND flash onboard.It supports 4 x 2.5G network ports and 2 x 10G SFP+/RJ45 ports, support 4G/5G expansion。it is a update version for BPI-R4.

Technical Specifications

 HardWare Specification Of Banana Pi R4 Pro (8x)

CPU

MediaTek MT7988A Quad-core Arm Cortex-A73, 1.8GHz processor

SDRAM

8GB DDR4

Onboard Storage

MicroSD (TF) card Slot
8GB eMMC Flash
256MB SPI-NAND Flash

On board Ethernet

1x 10G RJ45 WAN
1x 10G RJ45 LAN
1x 1G RJ45 LAN
4x 2.5G RJ45 LAN
1x 1G LAN (FPC Connector)

SFP

1x 10G SFP+ WAN (combo with 10G RJ45 WAN)
1x 10G SFP+ LAN (combo with 10G RJ45 LAN)

mini PCIE Slot

2x miniPCIe slots with a PCIe 3.0 2-lane interface for Wi-Fi NIC

M.2 Slot

2x M.2 M-KEY slots with a PCIe 3.0 1-lane interface for NVMe SSDs
3x M.2 B-KEY slots with USB3.2 for 4G/5G cellular modules

USB

1x USB 3.2 Type A Connector
1x USB 2.0 Type A Connector

Debug

1x USB Type-C on-board USB-UART Debug Console

GPIO

2x13 PIN Header for expanding application

FAN

2x Headers with PWM control for fan

RTC

1x CR1220 connector for RTC Battery

Buttons

Reset button, WPS button, bootstrap switch

Leds

Power status Led and RJ45 Led

DC Power

DC5521 12V/5.2A or 19V 3.2A
USB Type-C PD 20V

Sizes

132mm x 194mm

Weight

about 220g

Write Your Own Review
You're reviewing:Banana Pi R4 -Pro-8x (8G DDR4+8G eMMC)
  1. Banana PI BPI-R4 Pro-8X x1
  1. Data Sheet
  • Manufactured By: Shenzhen SINOVOIP Co., Ltd.
    7F, Rongyi Building, No.5 Information Rd, Songshan Lake High-tech Industrial Park, Dongguan
  • Country of Origin: China
  • Imported By: Tanna TechBiz LLP
    Vraj-Bhoomi, 22 New Jagnath Plot, Rajkot, Gujarat, 360 001
  • For customer complaints/support: Email ID: [email protected], Contact: +91 74860 37505
