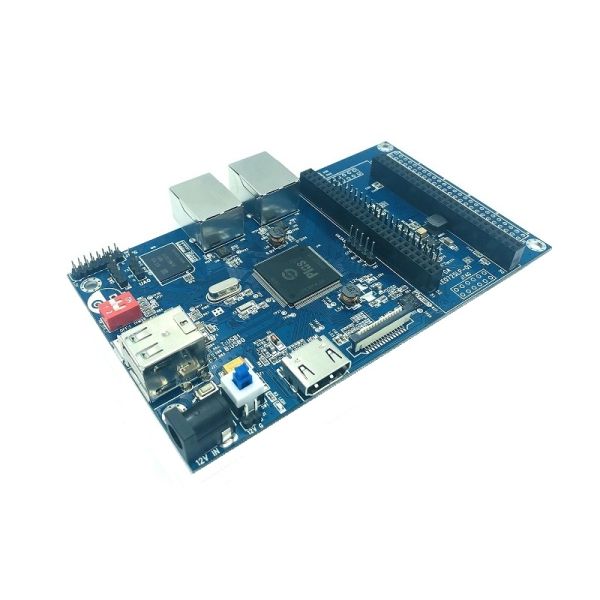

Banana Pi BPI-F2S is the first board with Banana Pi team and SunPlus, this is a industrial-grade board. use Plus1(sp7021) design. this is a industrial-grade board. we also design a Xilinx Artix-7 FPGA extend board.
Banana Pi BPI-F2S Soc design and Xilinx Artix-7 FPGA development kit
SunPlus sp7021 is a revolutionary SoC that has the power of a Linux-grade chip and the integration simplicity of a microcontroller.it with ARM Cortex-A7 Quad core,ARM926 real-time core,8051 low-power coreConceived by Sunplus Technology in collaboration with Tibbo Technology, PLUS1 takes all the sophisticated elements typically found in modern industrial-grade embedded Linux chips, adds a plethora of features targeting IoT and industrial control applications, and delivers the resulting design in a simple microcontroller-like package that needs few external components, simplifies the schematic diagram, and reduces the PCB complexity.
SP7021 is a SoC solution of industrial control. It meets customers’full demand on function but with low cost so that will improve customers’ competitiveness in the market. SP7021 provides rich GPIOs, storage and USB interface. And it provides MIPI CSI interface for video input and HDMI interface for video output. It also provides FPGA interface for function extension. SP7021 also has 4 Ethernet ports providing customers a high competitive solution.

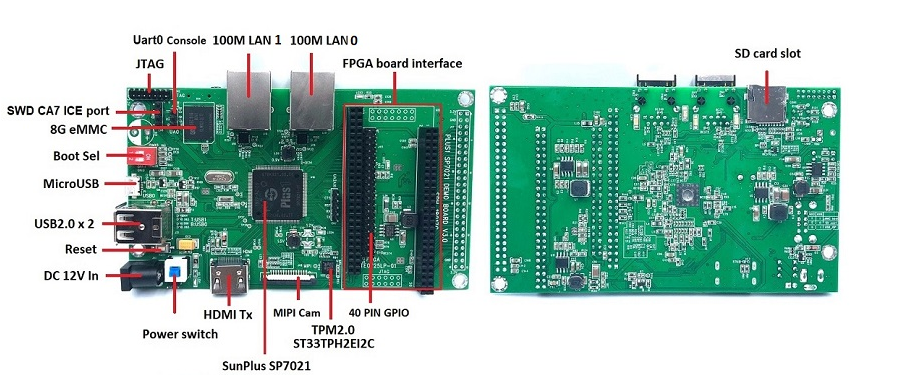

Hardware interface :
note : 40 PIN GPIO compitable Raspberry Pi
Hardware Spec :

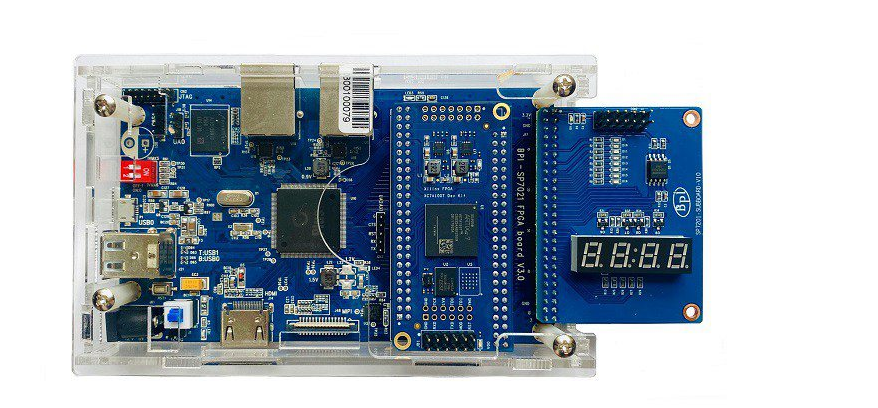

SoC – Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz, one Arm A926 microprocessor, an 8051 core to handle I/Os, and 128MB or 512MB DDR3 DRAM. Storage – 8GB eMMC flash, microSD card slot Video Output – HDMI 1.4 output Camera I/F – MIPI CSI connector Connectivity – 2x 10/100M Ethernet USB – 2x USB 2.0 host ports, 1x micro USB port 40-pin GPIO header compatible with Raspberry Pi header 2x 50-pin FPGA interface for Trenz Electronic TE0725LP-01-100-2D Artix 7 FPGA board Unpopulated, undocumented 50-pin header that’s appears to be routed to one of the headers for the optional FPGA board Debugging – 3-pin header for UART console, 10-pin JTAG header, SWD ICE port Security – TPM 2.0 via ST33TPH2EI2C secure element Misc – Power switch, reset button, boot selection dip switch Power Supply – 12VDC via power barrel jack Dimensions –135x80mm Temperature Range – -40C ~ +85°C SOC education and training practice suite:
Technical Specifications
Model
Banana Pi BPI-F2S
Storage
8GB eMMC flash, microSD card slot
SoC
Sunplus SP7021 “Plus1” with a quad-core Cortex-A7 processor @ 1.0 GHz, one Arm A926 microprocessor, an 8051 core to handle I/Os, and 128MB or 512MB DDR3 DRAM.
Video Output
HDMI 1.4 output
Camera I/F
MIPI CSI connector
Connectivity
2x 10/100M Ethernet
Expansion
40-pin GPIO header compatible with Raspberry Pi header2x 50-pin FPGA interface for Trenz Electronic TE0725LP-01-100-2D Artix 7 FPGA boardUnpopulated, undocumented 50-pin header that’s appears to be routed to one of the headers for the optional FPGA board
Debugging
3-pin header for UART console, 10-pin JTAG header, SWD ICE port
Security
TPM 2.0 via ST33TPH2EI2C secure element
Misc
Power switch, reset button, boot selection dip switch
