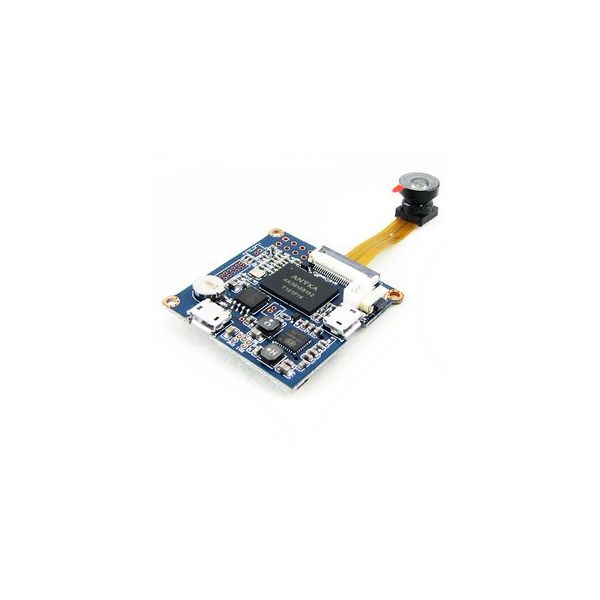

The BPI-D1 is the smallest open-source development board around, with a built-in HD mini camera. At 38mm (w) x38mm (l) and weighing in at 10g, it’s much smaller and lighter than any mini-cam or camera board out there. It allows you to create and customize your own mini-cam and can be a valuable part of any cool hardware you are working on. The BPI-D1 prides itself on providing high-resolution image quality: Both video and photos are captured at 1280x720p with a video capture rate of 30 fps.
The BPI-D1 is designed specifically to give you all the multimedia tools you need in one small package.Simply connect to an external battery source (with your desired power capacity), and the BPI-D1 does the rest: there’s a HD mini-cam, audio sensor, microphone, CPU, GPIO, WiFi, and more - you name it, the BPI-D1 has it.
CMOS Inage Sensor SoC30FPS@720P, Visible light with 940 na two-way infrared lens filter, with infrared night vision function
Lens
M7+PO.35 EFL-3.0mm/F. NO 2.8/View Angle=600
Video
It achieves H. 264 hardware encoding st 1280x720p_30fps. 32G TF card can store 120 hours of video data
Audio
MP3/WMA/AAC
WIFI
USB wifi nodule support (OPTION): WiFi module can be switch between the AF and the SLAVE mode, easy to configure the WiFi nodule, BPI-D1 support WPS node
RTC
RTC circuit, and supporting 050
PM
Support Li-ion Charging with Built-in AXP179 power management chip
Mic
Embedded electrets microphone
Power
Recording: 5V-200mA. ViFi On: 57-350mA.
Consumption
continuously record 720P video or audio data for 24hour when a nobile power of 10000 mAH is available.

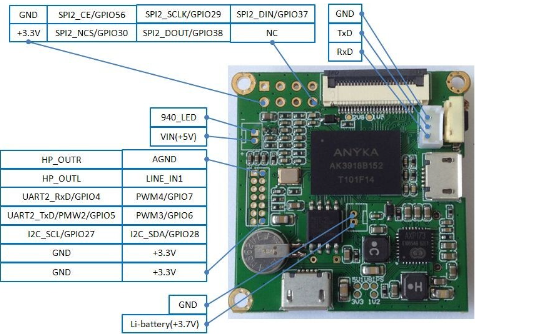

GPIO
JUART/2GPIO: 2PWM/2GPIO; 120; Audio Line IN; HP Audio Out L HP Audio Out RJ 1SPI Interface
UART
Independent UART debugging interface
USB
USB progrannatic interface/OTG device (WiFi module/USB drive)
DC IN
Micro-USB single +5V power input
Battery
3.7V Li-ion socket
OS
Running on Linux3. 4.35, Kernel Operation system that makes secondary developnent possible
