Arduino Mega 2560

SKU

DB-ARD-0002

Brand Reward Points

₹2,699.00

Out of Stock

Topic: Topic

Details

Product Description

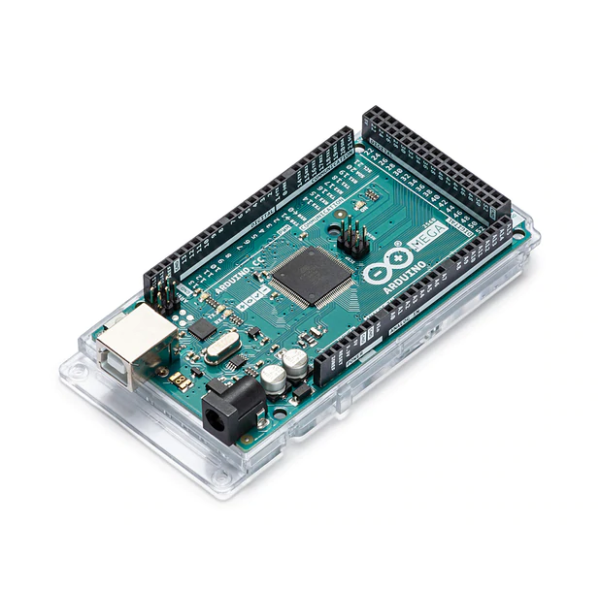

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

Technical Specifications

Model	Mega 2560
MICROCONTROLLER	ATmega2560
OPERATING VOLTAGE	5V
INPUT VOLTAGE (RECOMMENDED)	6-20V
DIGITAL I/O PINS	54 (of which 15 provide PWM output)
ANALOG INPUT PINS	16
DC CURRENT PER I/O PIN	20 mA
DC CURRENT FOR 3.3V PIN	50 mA
FLASH MEMORY	256 KB of which 8 KB used by bootloader
SRAM	8 KB
EEPROM	4 KB
CLOCK SPEED	16 MHz
LED_BUILTIN	13
LENGTH	101.52 mm
WIDTH	53.3 mm
WEIGHT	37 g
