Arducam's V3Link Camera Kit is built around a high-quality IMX477P sensor that adheres to the V3Link protocol, making it perfect for high-bandwidth, extended-range projects. The kit utilizes coaxial cables to ensure reliable power and data transmission up to 5 meters, providing low latency for optimal performance. With support for up to 2 IMX477P cameras and channel-switching capabilities, this kit is a versatile solution for various applications.

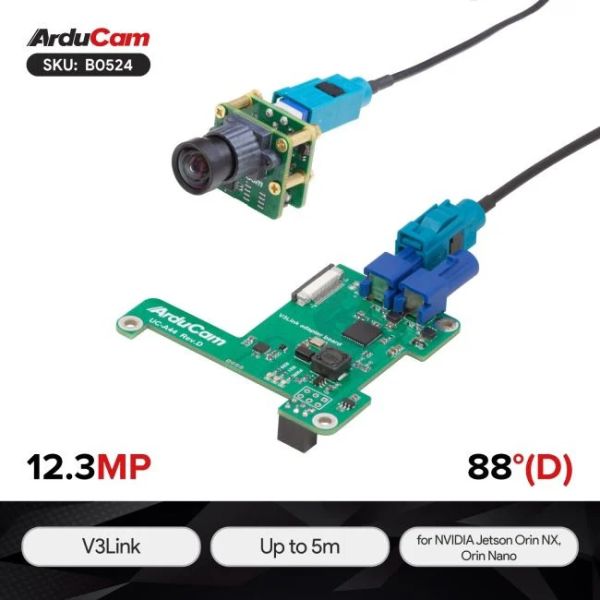

Designed for the NVIDIA Jetson Orin Nano/NX, the kit includes an IMX477P camera module with a pre-installed Tx board, a Rx adapter board for connecting to the Jetson development board, and a 1-meter coaxial cable, enabling remote camera deployment with minimal configuration.
V3Link, a cutting-edge technology developed by Texas Instruments, incorporates FPD-Link IP to integrate advanced driver assistance systems (ADAS), security cameras, industrial systems, and medical imaging into a single platform. Arducam's V3Link Camera Kit leverages this technology to combine long-range data transfer with embedded vision, offering a compact and efficient solution for a variety of high-performance vision projects.
Applications
ADAS
Automotive
Security Cameras
Industrial Systems
Medical Imaging
Features
NVIDIA Jetson Orin Nano/NX Compatibility: Designed specifically for the Jetson Orin NX and Orin Nano, this V3LINK camera kit ensures high bandwidth and long-range transmission for optimal performance.
High-performance IMX477P CMOS: Utilizes a 12.3-megapixel sensor for superior image quality with a 24*25mm camera board and M12 high-quality lens. The compact hardware supports Fakra Z Female to Female RF Coaxial Cable connections of up to 5 meters, enabling multi-camera access.
Adaptive Channel Management: Up to two 477P cameras of the same model can be connected for independent camera switching. This feature is suitable for applications ranging from automotive to medical imaging.
Cost-effective Dual-channel System: The dual-channel vision system reduces development costs thanks to its compact hardware architecture. It provides an efficient solution for integrating embedded cameras with V3LINK.
Plug & Play: Hot-swappable support on the camera side (Tx board) simplifies integration and allows you to quickly deploy your V3LINK Extension camera project with a simple configuration.
