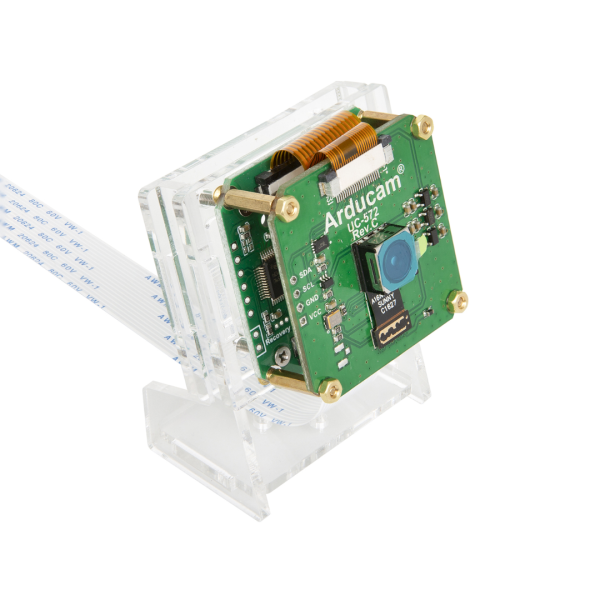

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano, Arducam just released this 16MP high-quality camera module for Jetson Nano. Arducam 16MP MIPI camera module incorporates SONY 1/2.8−inch CMOS which adopts Exmor-R technology to achieve high-speed image capturing with high sensitivity and low noise performance. “RGBW coding” color filter is employed, and RGB primary color mosaic is reproduced on the chip. High sensitivity, low dark current, and smear-free features are achieved. It equips an electronic shutter with variable integration time.
Application
Cellular phones
PDAs
Toys
Other battery-powered products
ARM/FPGA/DSP based platforms
Features
High Resolution
Platform Support: Jetson Nano
Programmable motorized focus lens
Support RAW8/10 bayer format
Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
Support Single Line Driver Installation Command
Support OpenCV Friendly and Provides Source Code Demonstration
Technical Specifications
Model
Arducam 16MP IMX298 Camera Module for Jetson Nano (B0214)
