In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12 mount lenses from long focus to fisheye for shooting on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

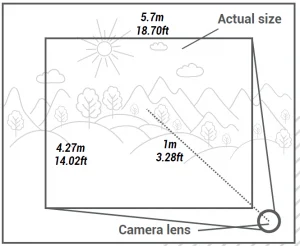

An M12 lens with a 180° FoV is capable of capturing a 5.7 x 4.27 m (18.70 x 14.02 ft) scene at a 1-meter (3.28 ft) distance.
Why S-mount lenses are ideal for the RPi High Quality Camera:
Lightweight: It’s tiny and takes less space than the official lenses.
Cost-effective: You get more options with the equivalent amount of money.
Project-centric: Different projects lead to different lens requirements, you need lenses with certain FoVs for specific needs as the notion of one-lens-fits-all gets impractical from time to time.
OEM-ready: Unlike C/CS mount lenses, M12 lenses are highly customizable in regards to product designs.
We have six M12 mount lenses available for the HQ camera, you can find the all-in-one kit here.

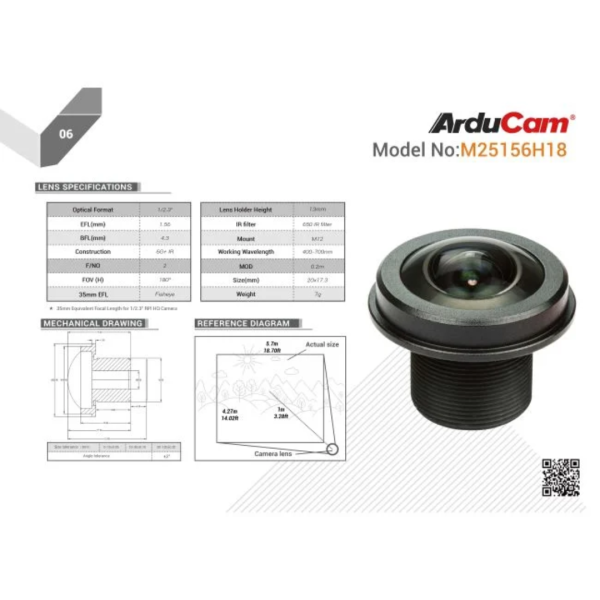

Technical Specifications
Model No
M25156H18
Optical Format
1/2.3”
Focal Length
1.56mm
Aperture
F2
Field of View (FOV)
180° (H) on Raspberry Pi High Quality Camera, 140°(H) on Raspberry Pi V1/V2 Camera
