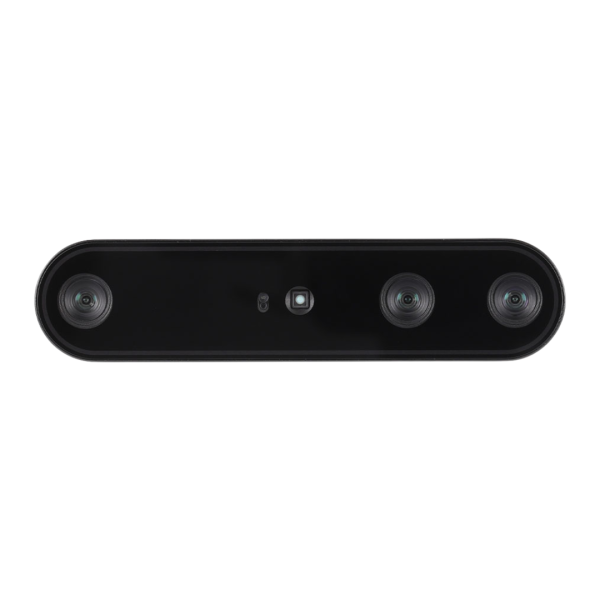

The Orbbec Gemini 2 L is based on active stereo IR technology with a baseline of 100mm and is equipped with Orbbec's latest custom ASIC for high quality depth processing. It has a depth Field of View (FoV) of up to 101° diagonally and operates with single cable USB 3.0 for power and connectivity. The camera also has a proximity sensor for close distance single point ranging, which eliminates any blind spot in depth measurements within the entire 0-10m range. An internal IMU enables motion and position tracking.
Gemini 2 L is easy to set up and operate with the Orbbec SDK, and the camera delivers extremely accurate and reliable data in various lighting conditions from pitch black to semi-outdoor.
| Camera Specifications | |
|---|---|
| Depth Technology | Active Stereo IR |
| Wavelength | 850nm |
| Depth Range | 0.2-10m |
| Depth Resolution/FPS | Up to 1280x800@30fps |
| Depth FOV | H91 V66 |
| RGB Resolution/FPS | Up to 1280x800@30fps |
| RGB FOV | H 94 V68 |
| Processing | Orbbec ASIC |
| IMU | Supported |
| Physical parameters | |
| Data Connection | USB 3.0 & USB 2.0 |
| Power Input | DC 5V 2.0A |
| Trigger | Supported |
| Power Consumption | Typical average < 3.0 W/max peak value <10.0W |
| Operating Environment | |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR & RGB |
| Dimensions (w*H*D*) | 124mm x 29mm x 26mm 0.5mm |
| Weight | 144g |
| Installation | |
