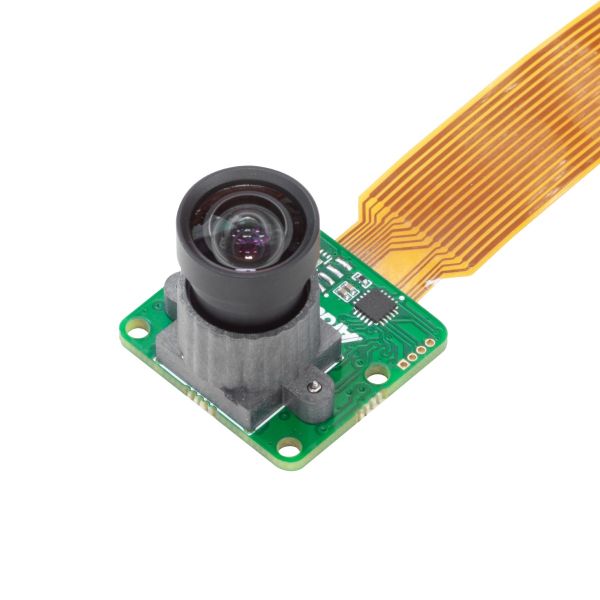

Arducam 12MP 577 Mini High Quality Camera Module for Raspberry Pi and Pi Zero (SKU : B0262-021)

SKU
TEMP-ACC-700
Brand Reward Points
0
₹6,299.00 ₹7,432.82
Back Order
Topic: Topic
Predicted Available Time:- Dec 30, 2025

Product Description

This Arducam 12MP camera module for Raspberry Pi has the same camera board size and mounting holes as the Raspberry Pi Camera Module V2, so no major hardware modifications are needed to ditch your 8MP IMX219 and embrace Arducam. Space- and weight-constrained applications, such as drones, also benefit from this camera, because it keeps the same imager performance and same control commands as the official Raspberry Pi High-Quality Camera, while offering a much smaller size and lighter weight, as well as interchangeable M12 lenses.



Technical Specifications

Name ( B0262 )
SensorIMX219
Still Resolution12.3 Megapixels
Resolution4056 x 3040 pixels
Video2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120
Focal Length3.9mm
Horizontal Field of View (HFOV)88°(D)×75°(H)
Focus TypeMANUAL FOCUS
Lens TypeM12
F.NOF2.8
Lens MountM12
Dimension25 × 24mm
Sensor image area6.287mm x 4.712 mm (7.9mm diagonal)
Pixel Size1.55 µm x 1.55 µm
Optical Size1/2.3"
IR SensitivityIntegral IR-cut Filter, visible light only
