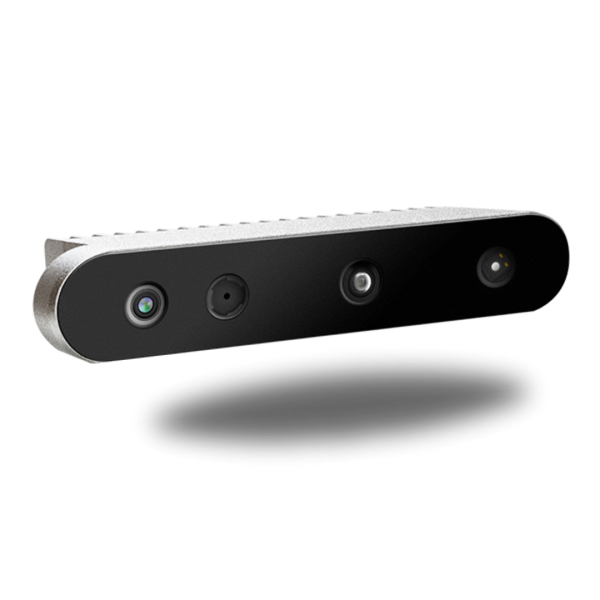

YDLIDAR HP60C (hereinafter referred to as HP60C) original deep camera uses structured light 3D imaging technology to obtain deep images, which meets different human-computer interaction functions such as robot navigation, obstacle avoidance, depth information modeling, gesture control, human body scanning and motion capture. The built-in HD RGB camera meets the needs of texture mapping, object recognition, video surveillance and other applications.
HP60C original deep camera is compact, USB 2.0 standard output interface, easy to integrate, providing flexibility for system integrators, can be adapted to indoor complex environments such as strong light and weak light.
Model | YDLidar HP60C Depth Camera | |
---|---|---|
Essential parameter | Product size | 89.8*19.0*25.0 |
Power dissipation | < 2 | |
Joggle | Type C USB 2.0 | |
Operating distance | 0.2~4 (within 2m) | |
Working temperature | -10~50 | |
Storage temperature | -30~80 | |
Working humidity | 0~90 | |
Power supply mode | USB | |
Vbus | 4.75~5.25 | |
Deep precision | Plane accuracy | <2@1m |
Filling rate (middle 81% area) | > 99.5%@1m | |
Deep image | Resolution / frame rate | 640×480@20fps(Max) |
Fov | 73.8×58.8×86.4 (H*V*D) | |
Transfer image format | RAW16 | |
RGB picture | Resolution / Frame rate | 1920×1080@20fps (Max) Recommended: 640×360@20fps, 640×480@20fps |
Fov | 80.9×51.7×88.9 (H*V*D) | |
Transfer image format | RGB888 | |
After depth map and RGB map alignment, depth map FOV | RGB resolution 640*360 condition | 73.8×51.7 (H*V) |
RGB resolution at the 640*480 condition | 64.4×51.7 (H*V) |
Predicted Available Time | Feb 15, 2025 |
---|
