USB3.2-Gen1-HUB-4U Extending 4x USB 3.2 Gen1 Ports
Features at a glance
4x extended USB 3.2 Gen1 ports, compatible with USB 3.2 / 2.0 / 1.1
Onboard 7~36V DC power port to ensure more stable power supply for connected devices
Up to 2A Max output current for each USB port, effectively preventing USB current backflow

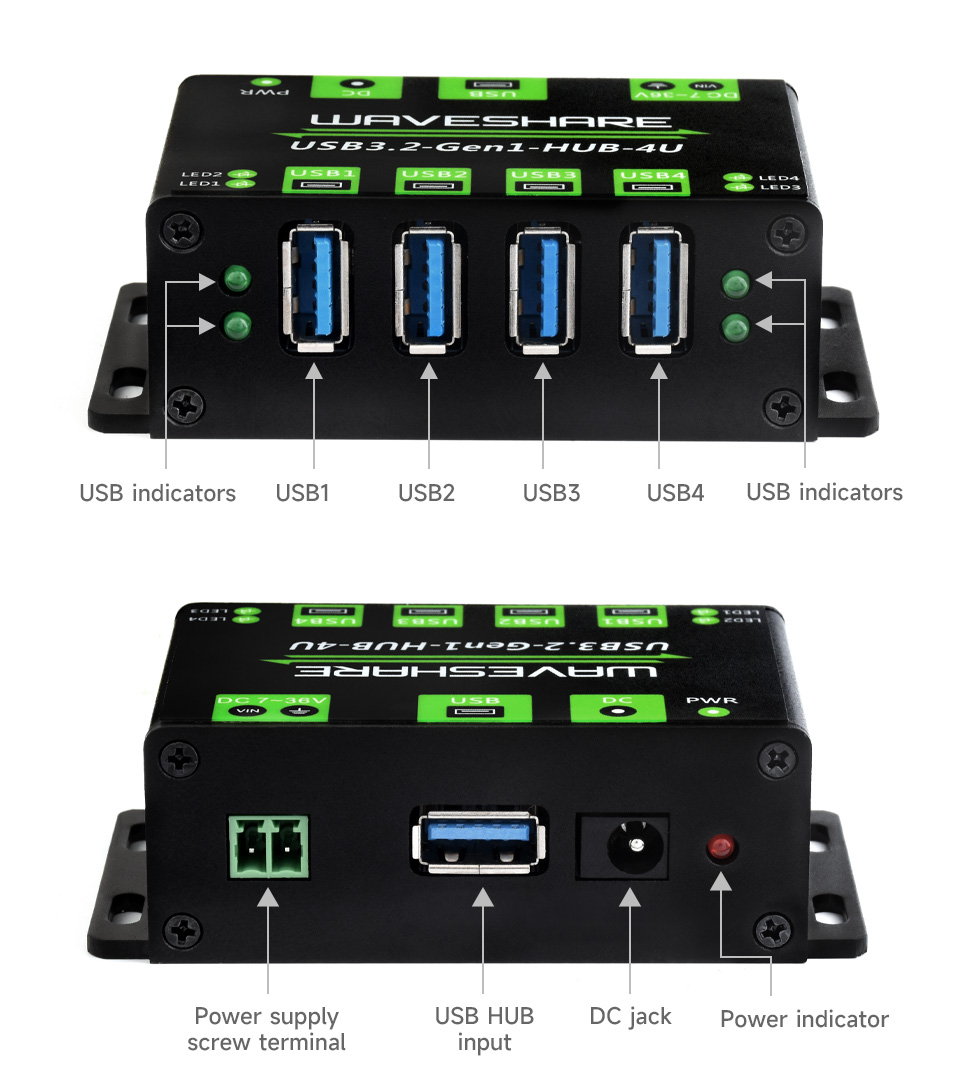

Multiple LED indicators for monitoring operating status of power supply and USB ports
Metal case, rugged & durable, with mounting holes for easy installation
Driver-free, plug-and-play, compatible with Windows, macOS, Linux and Android, etc.
USB 3.2 Gen 1 OR USB 3.0
they're totally equivalent in fact, indicating the transition of technical naming specification the word USB 3.0 on this page exactly means USB 3.2 Gen 1
Technical Specifications
Data rate
used name
current name
5 Gbps
USB 3.0 / USB 3.1 Gen 1
USB 3.2 Gen 1
Standard
USB 3.2 Gen1 5Gbps USB 2.0 480Mbps
USB HUB input
operating voltage: 5V connector: USB-A
USB output
operating voltage: 5V@Imax: 2A (up to 2A Max output current for each USB port when there's enough power input; 5A total peak current for 4-ch USB ports ) connector: USB-A
External power input
power supply voltage: DC 7~36V connector: screw terminal, DC jack
Operating environment
0℃ ~ 75℃
OS support
Windows, macOS, Linux and Android, etc.

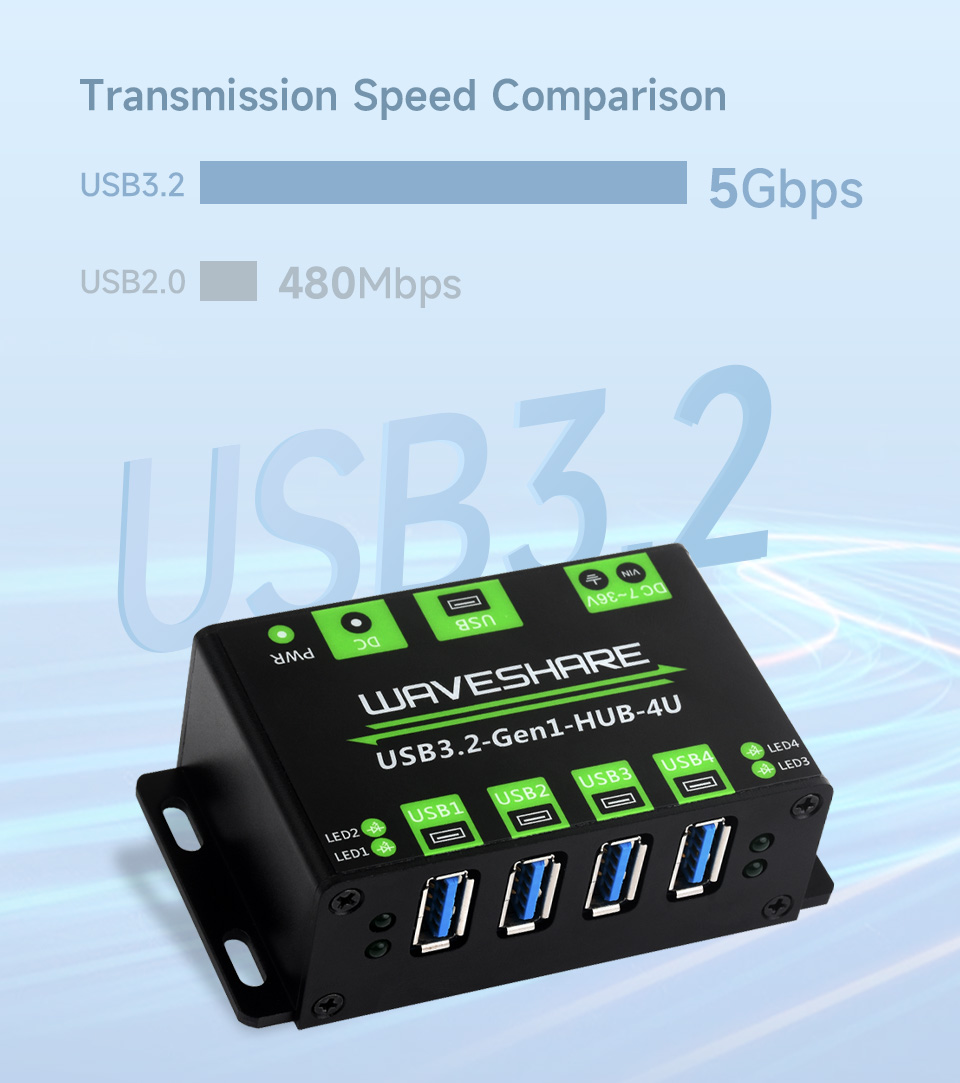

5Gbps Ultra-fast Transmission
Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

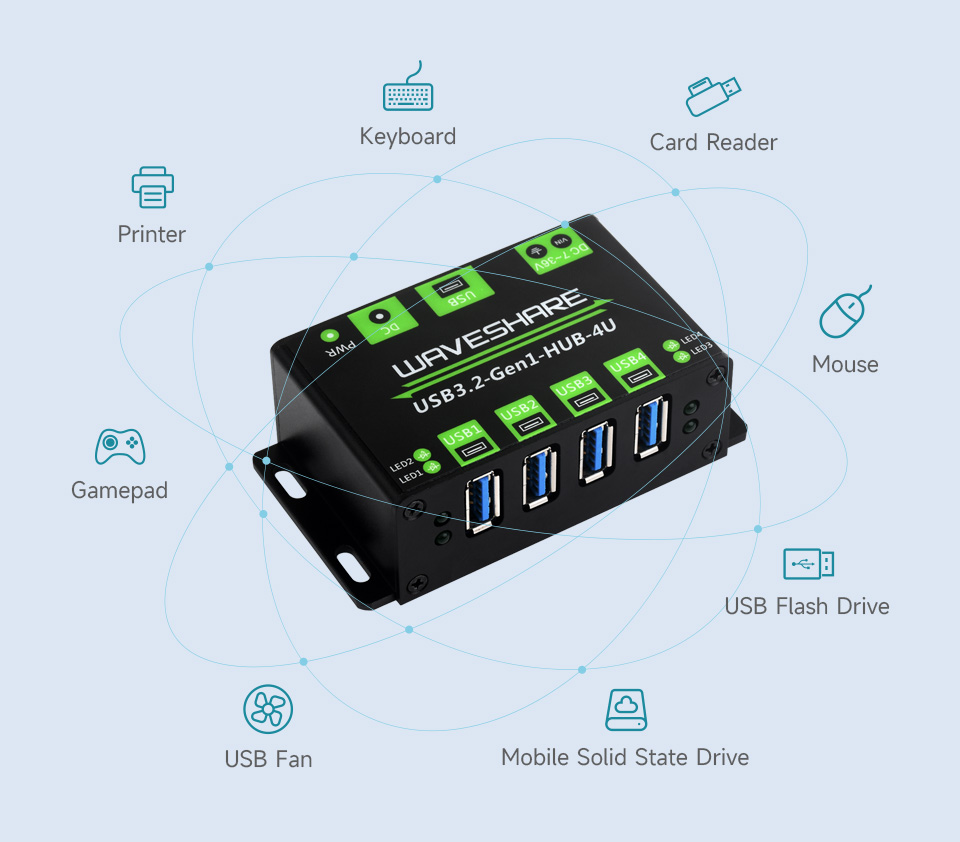

Connecting to various USB devices
1 to 4-ch USB 3.2 Gen 1 High-speed ports For Connecting More Peripherals
Multiple OS support
Compatible with Windows, macOS, Linux and Android systems
