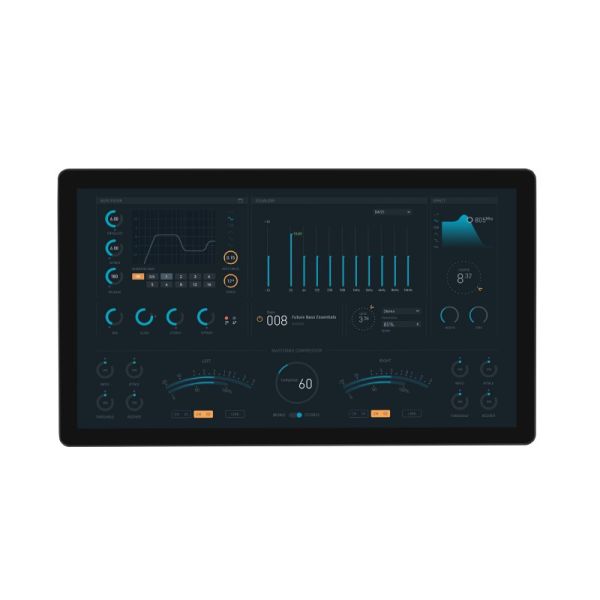

Waveshare 21.5inch Capacitive Touch Monitor, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, HDMI, 10-Point touch ( SKU : 24108 )
SKU
TEMP-ACC-0325
Brand Reward Points
0
₹21,999.00 ₹25,958.82
In Stock
Topic: Topic
Product Description
Version Options
| Model | Main Controller | Note |
|---|---|---|
| 21.5inch FHD Monitor | - | the HDMI Touch Monitor only |
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working with Raspberry Pi 4B
21.5inch FHD Monitor (B) | Built-in Pi4B-2GB
Working with Raspberry Pi Compute Module 4
21.5inch FHD Monitor (C) | Built-in CMPI4102008
Working with Jetson Nano
Working with mini PC
Configurable Display Orientation
The display orientation is portrait by default, 1080×1920 resolution (H×V).
Change the software config for landscape display
Wide viewing angle IPS display panel
Excellent Display & Color Performance
Wide viewing angle up to 170°, color gamut up to 72% NTSC
FHD High Resolution
1080×1920 Pixels, clearer display
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Audio Feature
Built-in ferrite Hi-Fi speaker, dual-track support
Interface Introduction
for reference only, the monitor arm is not included.
Application Scenarios
Suitable for industrial, commercial, medical and other applications
Dimensions
Product Certification
HDMI Certified
Write Your Own Review
- 21.5inch FHD Monitor ×1
- USB-A to USB-C cable ~1m ×1
- HDMI flat cable ~1m ×1
- **OPTIONS** 12V 3A Power supply ×1
- Packaging box ×1
