Multi protections, high anti-interference capability, stable operation
Features at a glance

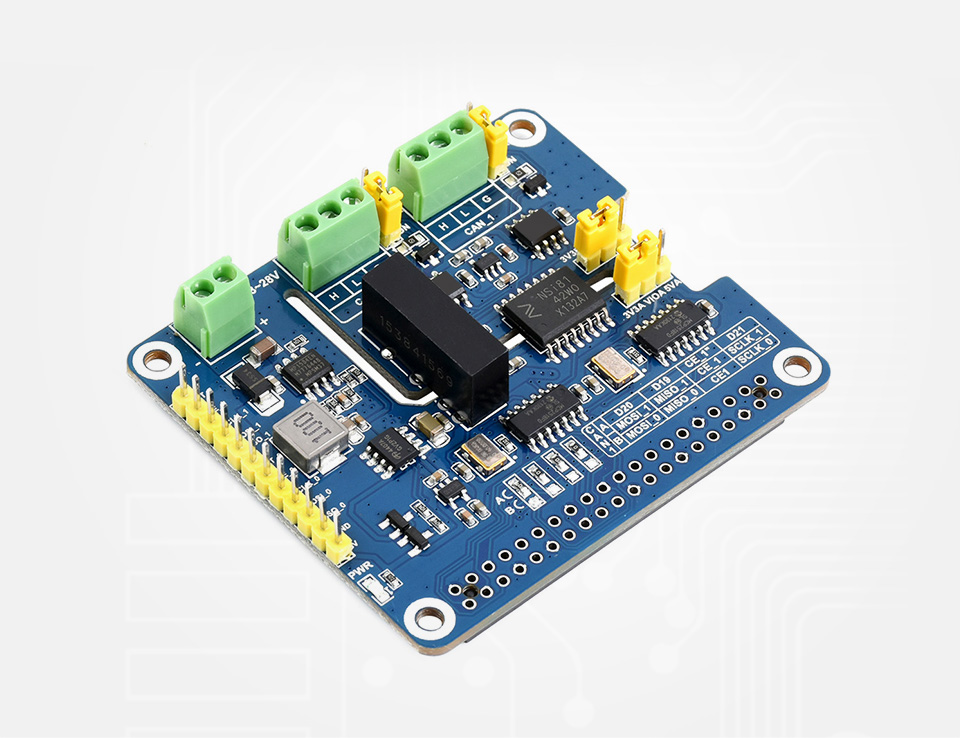

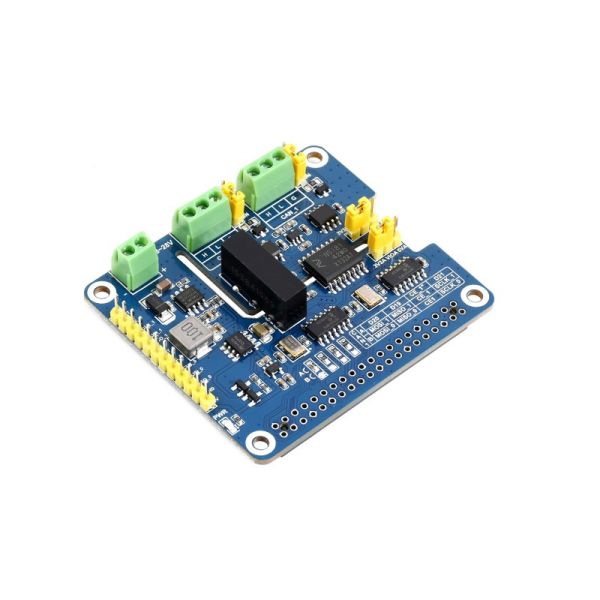

The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.
Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.

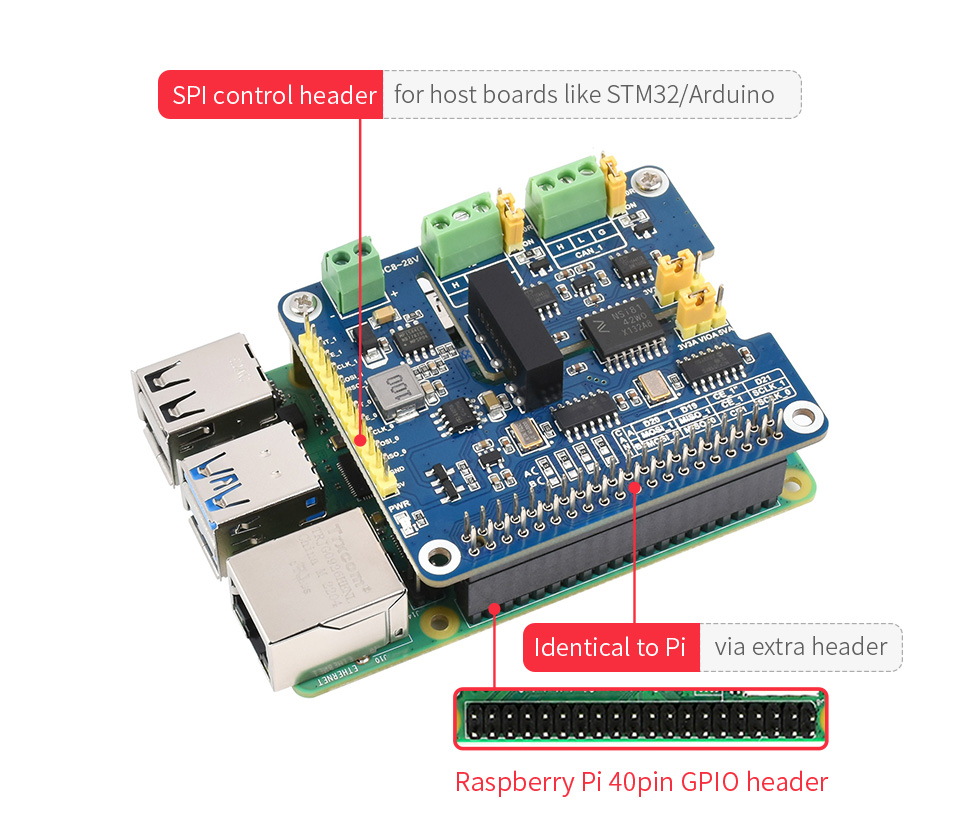

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Supports both traditional CAN2.0 and CAN FD protocols
Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
Onboard lightningproof, ESD protection, short circuit protection, more safe communication
Onboard voltage translator, select 3.3V/5V operating voltage by jumper
Onboard 120Ω terminal resistor, configured by jumper
Comes with development resources and manual (examples for Raspberry Pi/Arduino)
Technical Specifications
CAN controller
MCP2518FD
Control bus
SPI
Power supply
External power supply terminal OR Raspberry Pi
Screw terminalinput voltage
DC 8~28V
Operating voltage
5V
Logic level
3.3V/5V

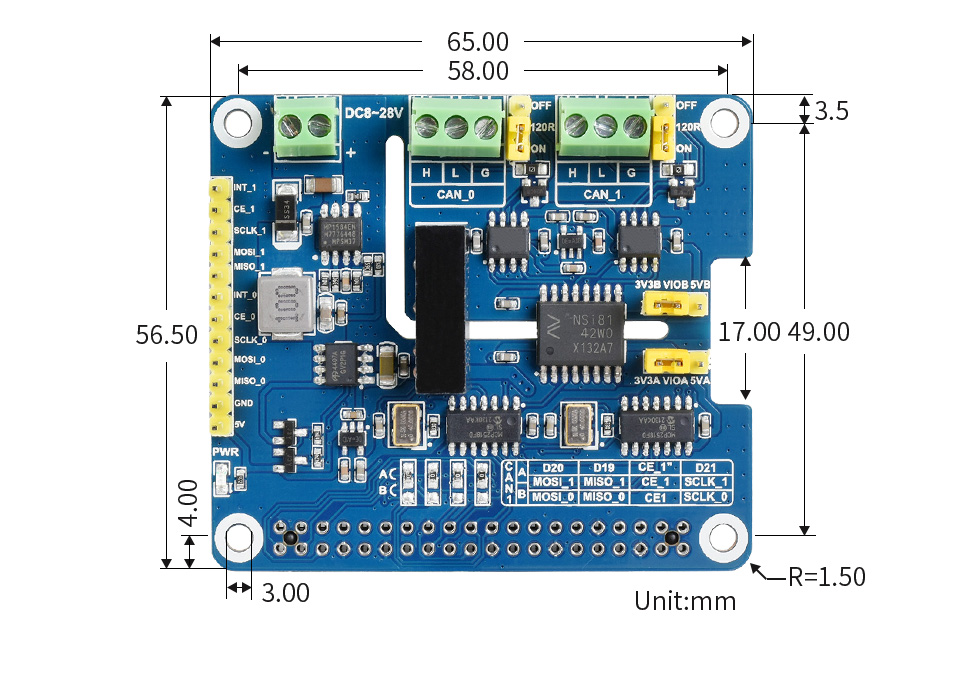

Dimensions
65.0 × 56.5mm
What can it do?
enable isolated and stable CAN FD capability for your Raspberry Pi
Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
2-Channel CAN support
MCP2518FD CAN controller + CAN transceiver chip

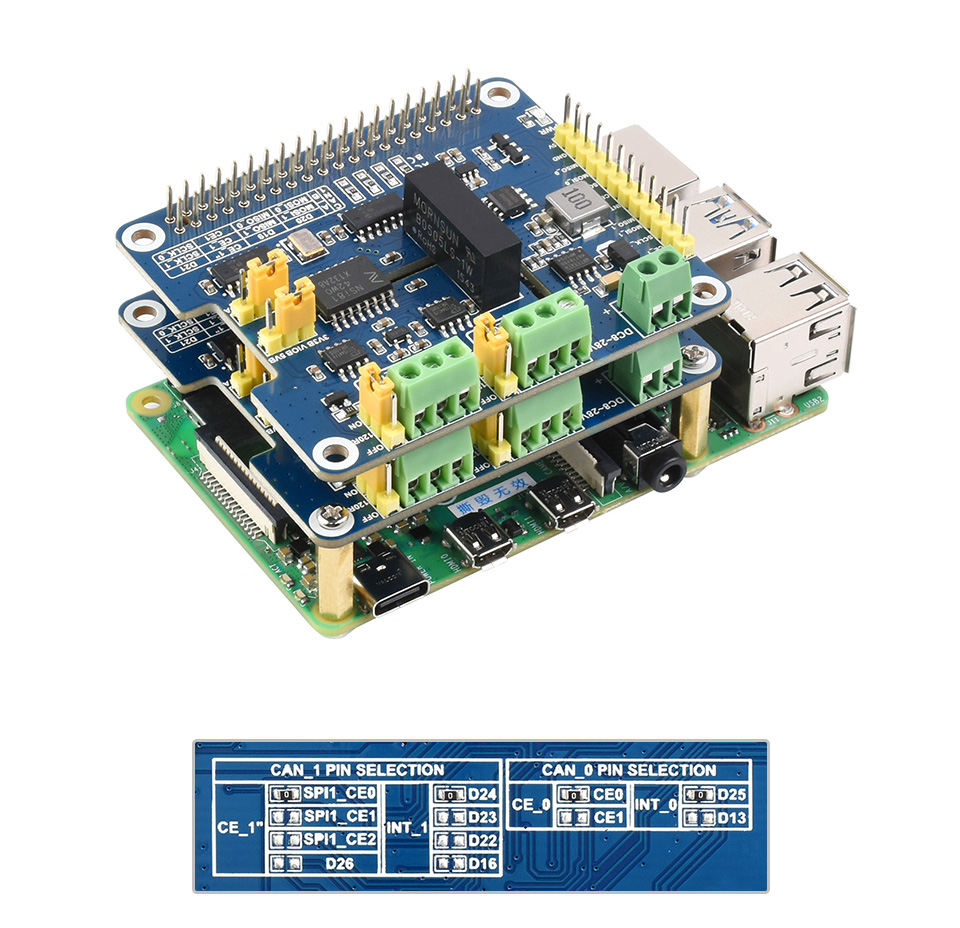

up to 4-CH CAN by cascading

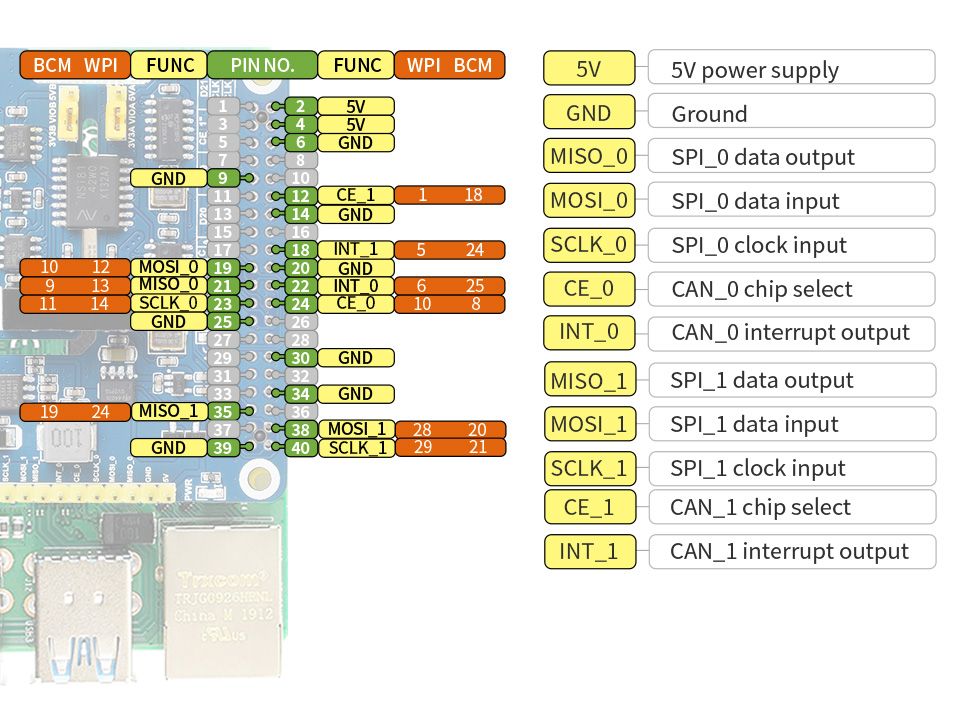

Onboard SPI0 / SPI1 chip select and interrupt pin configuration, avoid conflicting with other SPI slave devices, also used for cascading to support 4-ch CAN communication
Jumper
CAN_1 control pin config
CAN_0 control pin config
chip select (CE_1")
interrupt (INT_1)
chip select (CE_0)
interrupt (INT_0)
default
SPI1_CE0 (D18)
D24
CE0 (D8)
D25
options
SPI1_CE1 (D17)
D23
CE1 (D7)
D13
options
SPI1_CE2 (D16)
D22
backward compatible
D26
D16

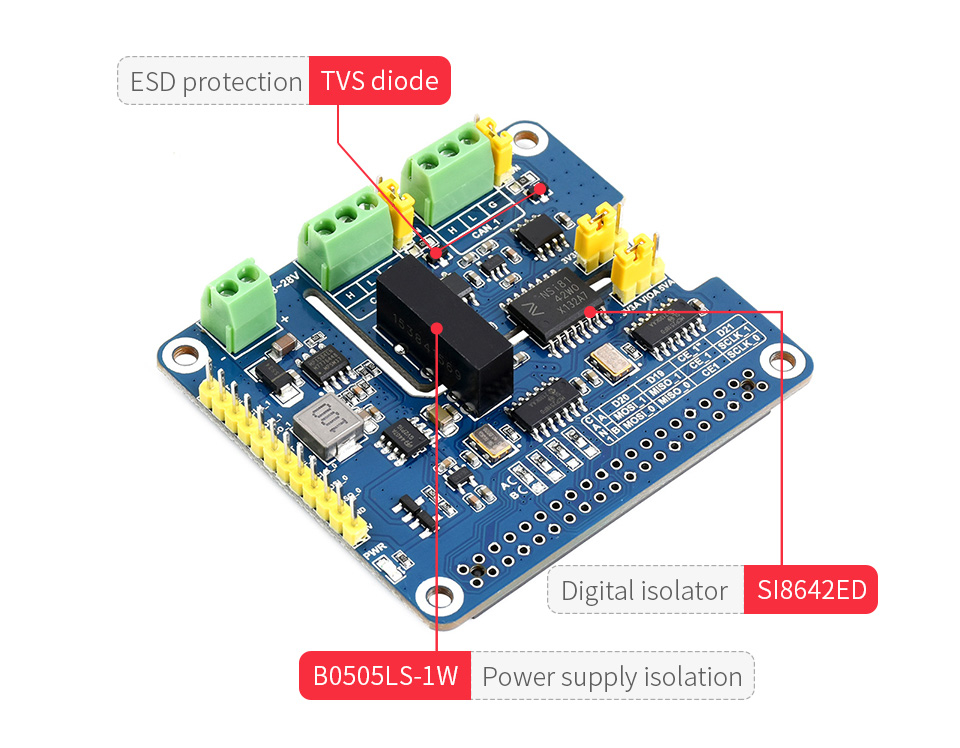

Electrical isolation circuitry safe & stable
SM24CANB TVS diode, ESD protection, transient peak voltage protection

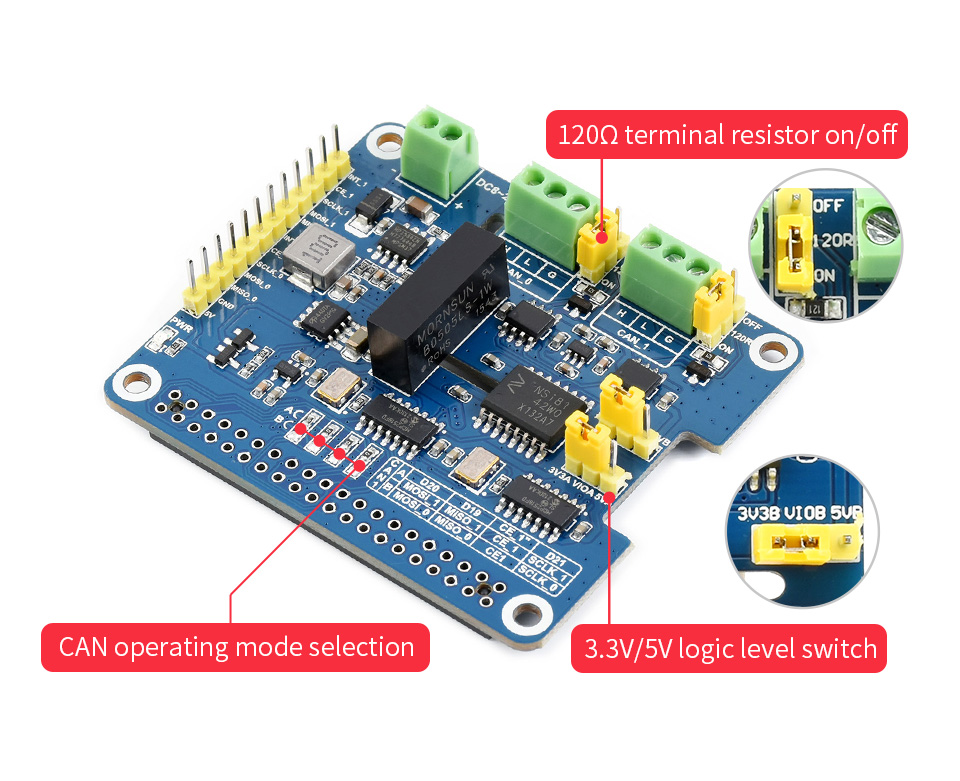

Flexible and handy jumpers
Easily select 3.3V / 5V operating voltage, or enable/disable 120Ω terminal resistor, via onboard jumpers

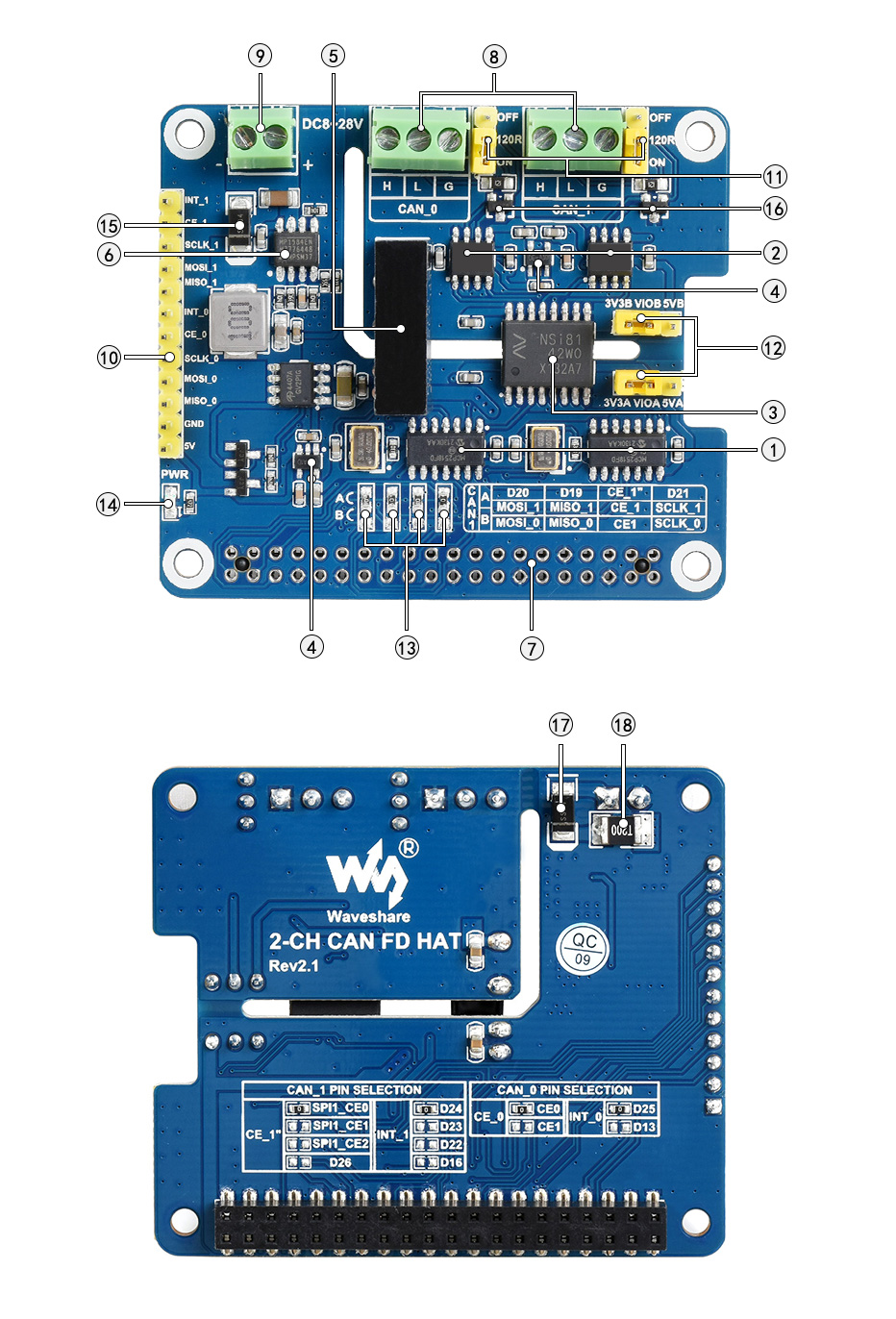

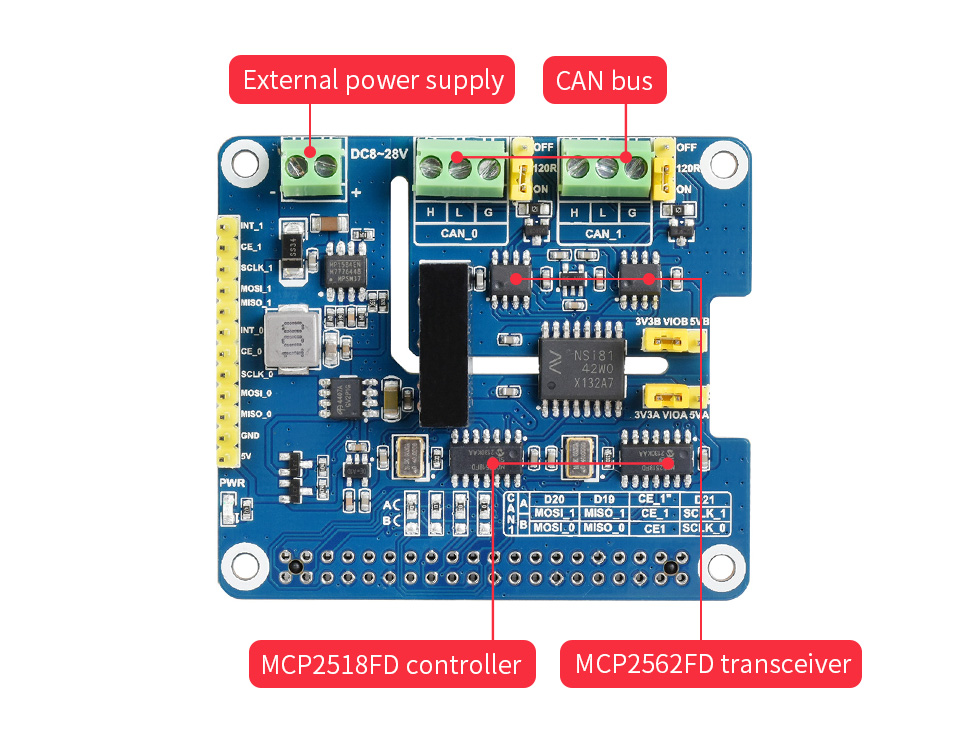

What's On Board
MCP2518FD controller
Transceiver chip
SI8642ED digital isolator
MP1584EN power chip
RT9193-33 power chip
B0505LS-1W power supply isolation module
Standard Raspberry Pi 40PIN GPIO header

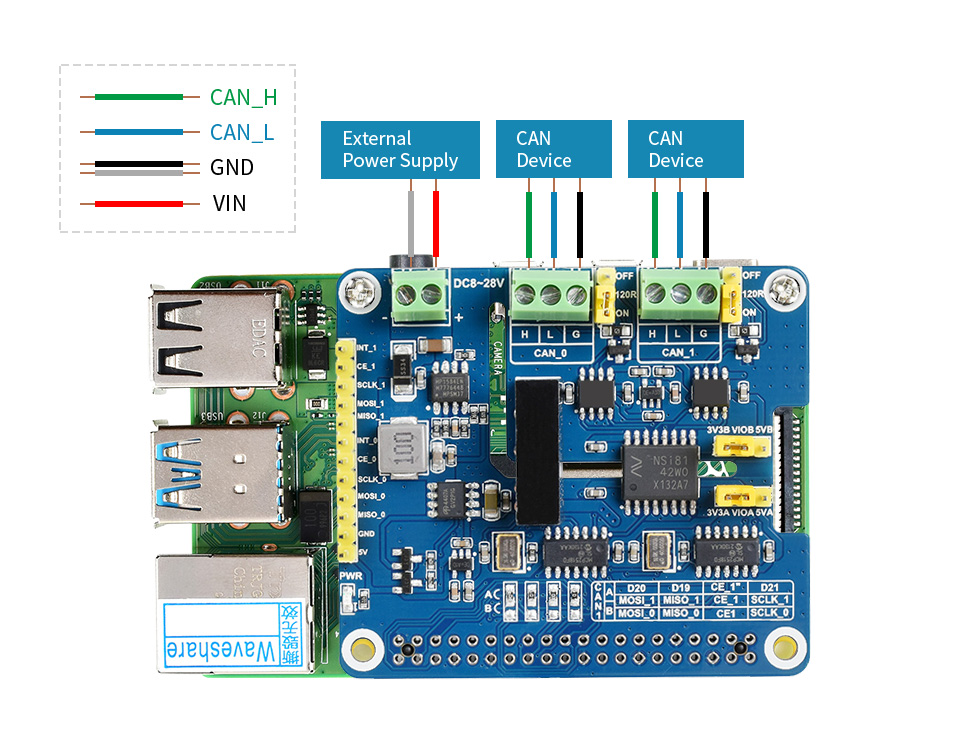

CAN bus screw terminal
External power supply terminal 8~26V DC input
MCU control pins for use with host boards like Arduino
120Ω terminal resistor switch
3.3V/5V logic level switch
CAN operating mode selection A: CAN_0 and CAN_1 use two separated SPI (default) B: CAN_0 and CAN_1 share a single SPI
