Waveshare 2.8Inch Resistive Touch LCD
SKU
LCD-WS-0051
Brand Reward Points
0
Product Description
This is a multicolor graphic IPS LCD display, 2.8inch diagonal, 320×240 pixels, with resistive touch screen. (SKU:16446)
Features
- Onboard touch controller, smoother touch experience than solutions that directly use AD pins for touching
- SPI interface, requires a few pins
- Programmable backlight control, power saving
- Comes with development resources and manual (examples for STM32/AVR/PIC)
Technical Specifications
| Model | Waveshare 2.8Inch Resistive Touch LCD (SKU:16446) |
|---|---|
| Driver | HX8347D |
| Touch Controller | XPT2046 |
| LCD Type | IPS |
| Communication Interface | SPI |
| Display Colors | RGB, 65K colors |
| Resolution | 320 × 240 |
| Backlight | LED |
| Display Size (mm) | 57.6mm × 43.2mm |
| Outline Dimensions | 79.9mm × 50.8mm |
| Touch Type | 4-wire resistive |
| Power Supply Voltage | 5V |
| Logic Level | 3.3V |
Interface Definition
| SYMBOL | DESCRIPTION |
|---|---|
| 5V | Power supply (5V input) |
| GND | Ground |
| MISO | SPI data output |
| MOSI | SPI data input |
| SCLK | SPI clock |
| LCD_CS | LCD chip select |
| LCD_DC | LCD data/command selection |
| LCD_RST | LCD reset |
| LCD_BL | LCD backlight control |
| TP_CS | Touch panel chip select |
| TP_IRQ | Touch panel interrupt |

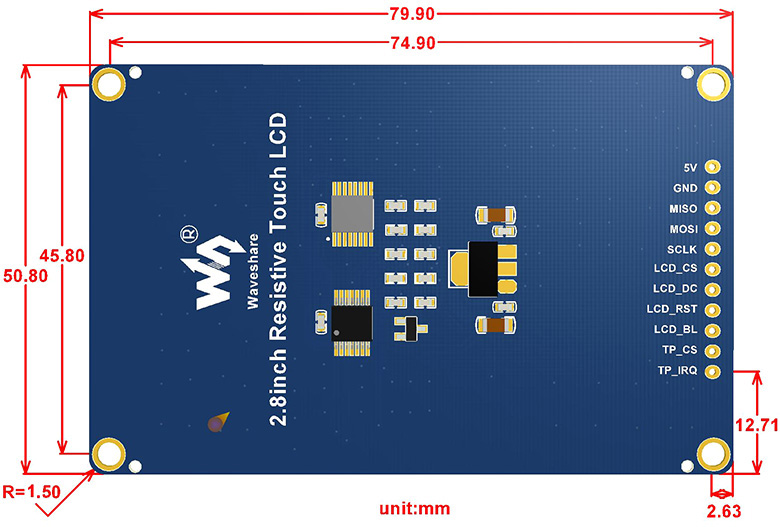

External Dimension
Write Your Own Review
- Waveshare 2.8Inch Resistive Touch LCD x1
