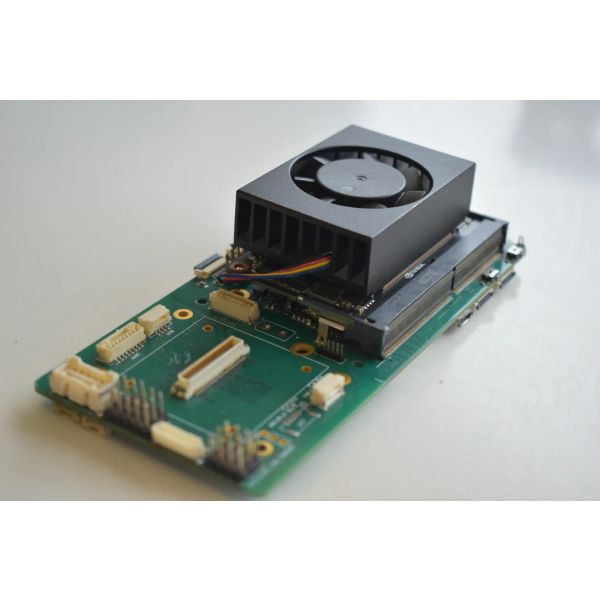

The JetCore Flight Control Board is an advanced, all-in-one solution that combines the capabilities of the JetCore Carrier Board with the Cube Flight Controller. Designed for high-performance robotics, drones, and AI edge computing applications, this integrated board offers robust connectivity, real-time processing, and precise flight control in a compact form factor. Its rugged design ensures reliability in industrial and outdoor environments.A wonderful serenity has taken possession of my entire soul, like these sweet mornings of spring which I enjoy with my whole heart. I am alone, and feel the charm of existence in this spot, which was created for the bliss of souls like mine. I am so happy, my dear friend, so absorbed in the exquisite sense of mere tranquil existence, that I neglect my talents. I should be incapable of drawing a single stroke at the present moment; and yet I feel that I never was a greater artist than now.
Key Features
Integrated Design: Combines JetCore Carrier Board and Cube Flight Controller for streamlined performance.
AI-Ready: Optimized for NVIDIA Jetson Xavier NX, Orin NX, and Jetson Nano modules, supporting JetPack 4.x and 5.x (LTS).
Comprehensive Connectivity: 1 x USB 3.0 (FPC Type), 6 x USB 2.0 (FPC Type), 1 x USB 2.0 (Micro USB for Debugging), 1 x Gigabit Ethernet (RJ45), 1 x Micro HDMI 2.0 (supports up to 3840 x 2160 resolution), 12-lane CSI-MIPI (via Daughterboard Connector), 2 x SPI, 1 x CAN, 1 x I2C, 1 x UART (all JST GH connectors), GPIO and PWM support.
Storage Expansion: M.2 Key M interface for NVMe SSD and SD card slot for additional storage.
Environmental Monitoring: Integrated dual BMI088 IMUs for temperature and motion sensing.
Security: Built-in Crypto Auth IC for enhanced data protection.
Power Supply: Supports 5V–25V DC input.
Durability: Operates efficiently in extreme temperatures ranging from -40°C to +85°C.
Software Compatibility: Compatible with QGroundControl (QGC), Mission Planner, ArduPilot, and PX4.
Technical Specifications
Specification
JetCore Flight Control Board
Jetson Module Support
NVIDIA Jetson Xavier NX, Orin NX, Orin Nano
Power Input
XT30 Connector, up to 6S LiPo (25.2V max)
USB Ports
1 x USB 3.0 (FPC), 6 x USB 2.0 (FPC), 1 x Micro-USB (Debug)
